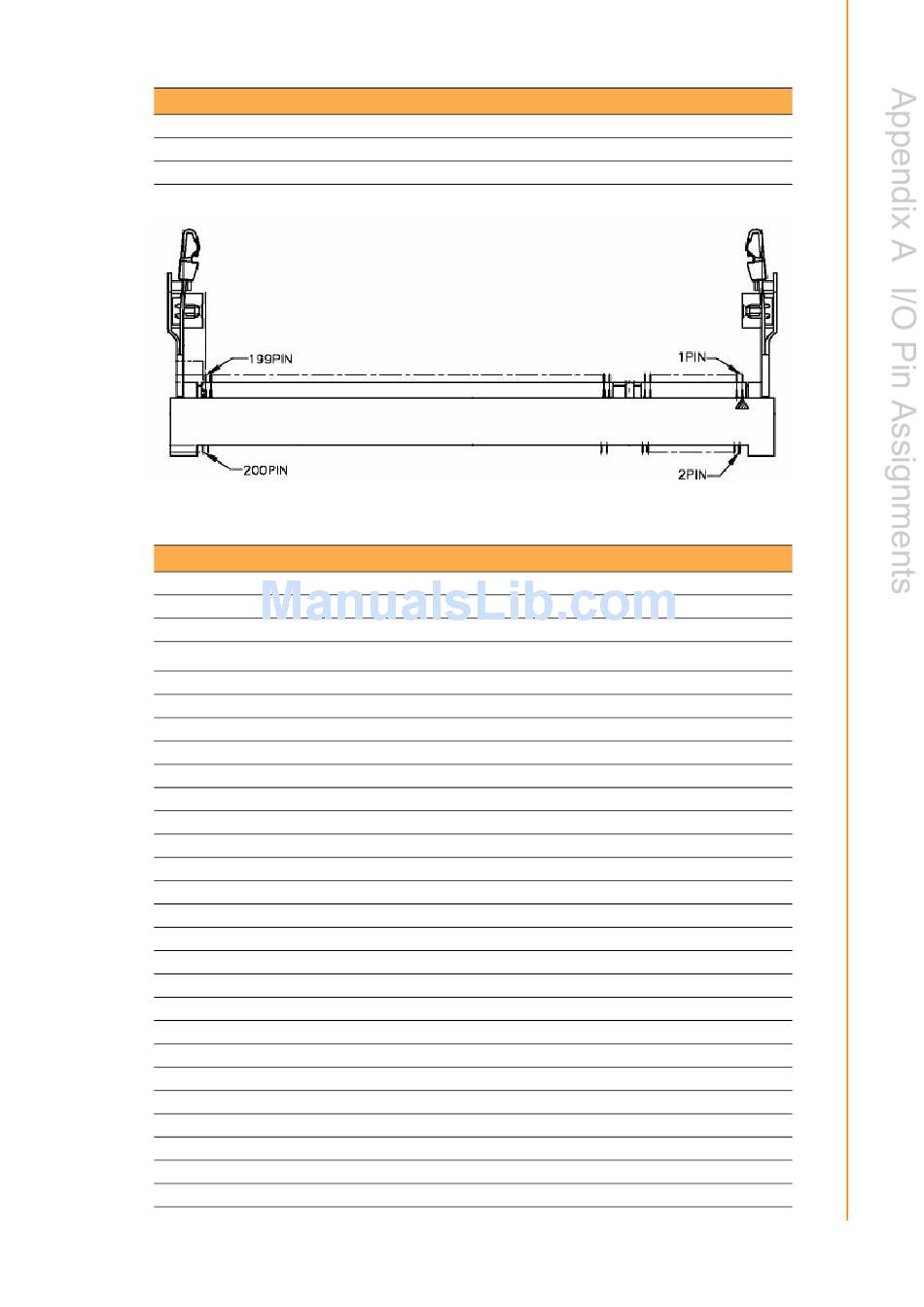

Table A.21: CN30: DDR3 SODIMM
24 GND
25 DQ54
26 DM6
Table A.22: CN32: CF
Part Number 1653002919
Footprint CF_50P_CFCMD-35T15W100
Description CF Type2 Conn.50P 90D(M) SMD WO/Pb CFCMD-35T15W1
Pin Pin Name
1 GND
2 D03
3 D04
4 D05
5 D06
6 D07
7 CS0#
8 GND
9 GND
10 GND
11 GND
12 GND
13 +5V
14 GND
15 GND
16 GND
17 GND
18 A02
19 A01
20 A00
21 D00
22 D01
23 D02
43 UTC-515 User Manual
