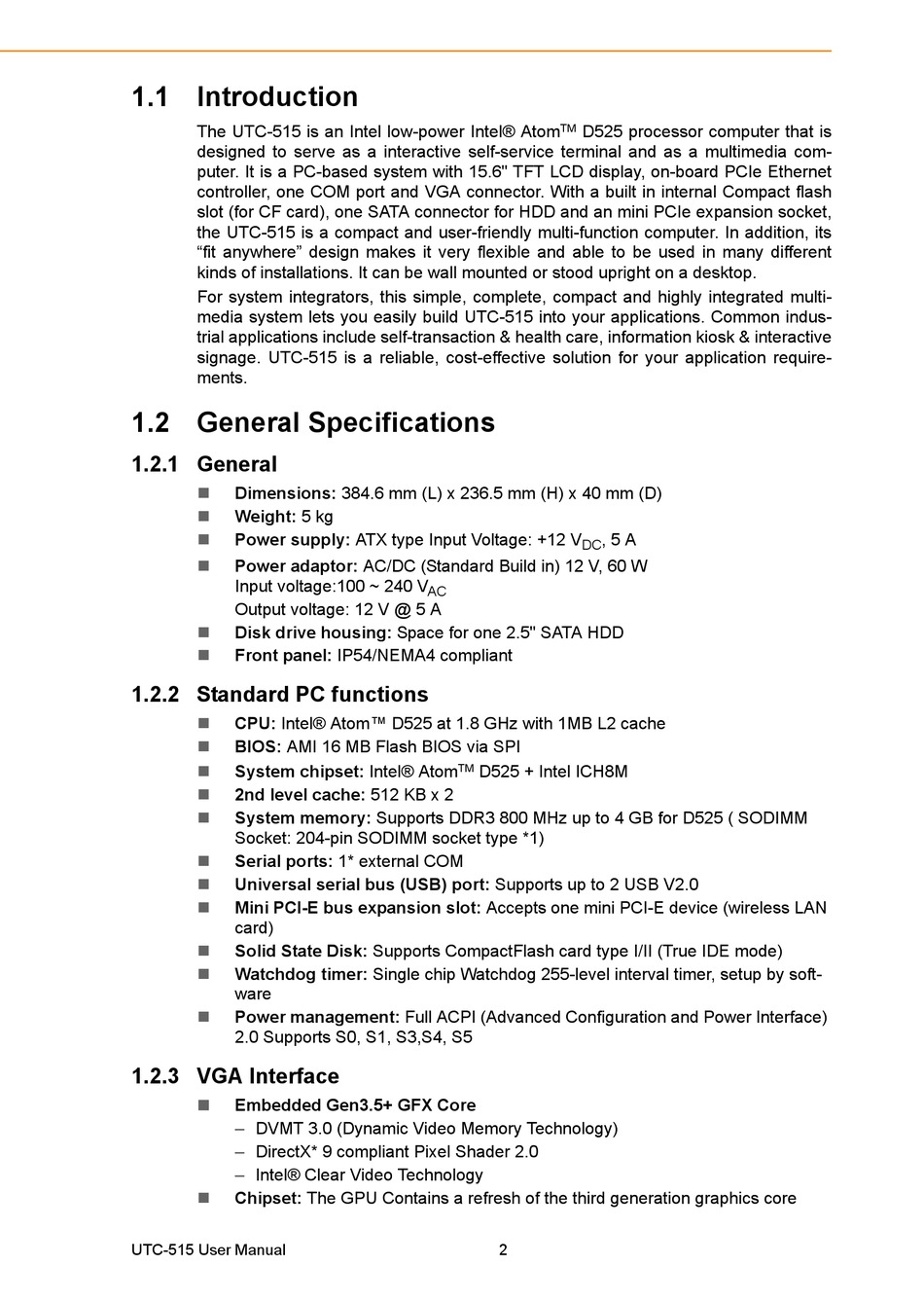

1.1 Introduction

The UTC-515 is an Intel low-power Intel® Atom
designed to serve as a interactive self-service terminal and as a multimedia com-
puter. It is a PC-based system with 15.6" TFT LCD display, on-board PCIe Ethernet
controller, one COM port and VGA connector. With a built in internal Compact flash
slot (for CF card), one SATA connector for HDD and an mini PCIe expansion socket,
the UTC-515 is a compact and user-friendly multi-function computer. In addition, its
"fit anywhere" design makes it very flexible and able to be used in many different
kinds of installations. It can be wall mounted or stood upright on a desktop.
For system integrators, this simple, complete, compact and highly integrated multi-
media system lets you easily build UTC-515 into your applications. Common indus-
trial applications include self-transaction & health care, information kiosk & interactive
signage. UTC-515 is a reliable, cost-effective solution for your application require-
ments.

1.2 General Specifications

1.2.1 General

 Dimensions: 384.6 mm (L) x 236.5 mm (H) x 40 mm (D)
 Weight: 5 kg
 Power supply: ATX type Input Voltage: +12 V
 Power adaptor: AC/DC (Standard Build in) 12 V, 60 W
Input voltage:100 ~ 240 V
Output voltage: 12 V @ 5 A
 Disk drive housing: Space for one 2.5" SATA HDD
 Front panel: IP54/NEMA4 compliant

1.2.2 Standard PC functions

 CPU: Intel® Atom™ D525 at 1.8 GHz with 1MB L2 cache
 BIOS: AMI 16 MB Flash BIOS via SPI
 System chipset: Intel® Atom
 2nd level cache: 512 KB x 2
 System memory: Supports DDR3 800 MHz up to 4 GB for D525 ( SODIMM
Socket: 204-pin SODIMM socket type *1)
 Serial ports: 1* external COM
 Universal serial bus (USB) port: Supports up to 2 USB V2.0
 Mini PCI-E bus expansion slot: Accepts one mini PCI-E device (wireless LAN
card)
 Solid State Disk: Supports CompactFlash card type I/II (True IDE mode)
 Watchdog timer: Single chip Watchdog 255-level interval timer, setup by soft-
ware
 Power management: Full ACPI (Advanced Configuration and Power Interface)
2.0 Supports S0, S1, S3,S4, S5

1.2.3 VGA Interface

 Embedded Gen3.5+ GFX Core
– DVMT 3.0 (Dynamic Video Memory Technology)
– DirectX* 9 compliant Pixel Shader 2.0
– Intel® Clear Video Technology
 Chipset: The GPU Contains a refresh of the third generation graphics core
