2.1 A Quick Tour of the UTC-515

Before you start to set up the UTC-515, take a moment to become familiar with the
locations and purposes of the controls, drives, connectors and ports, which are illus-
trated in the figures below.
When you place the UTC-515 upright on the desktop, its front panel appears as
shown in Figure 2.1.
When you turn the UTC-515 around and look at its rear cover, you will find the I/O
section as shown in Fig. 2.2. (The I/O section includes various I/O ports, including
serial ports, Ethernet ports, USB ports, VGA, and Compact Flash slot.)
UTC-515 User Manual

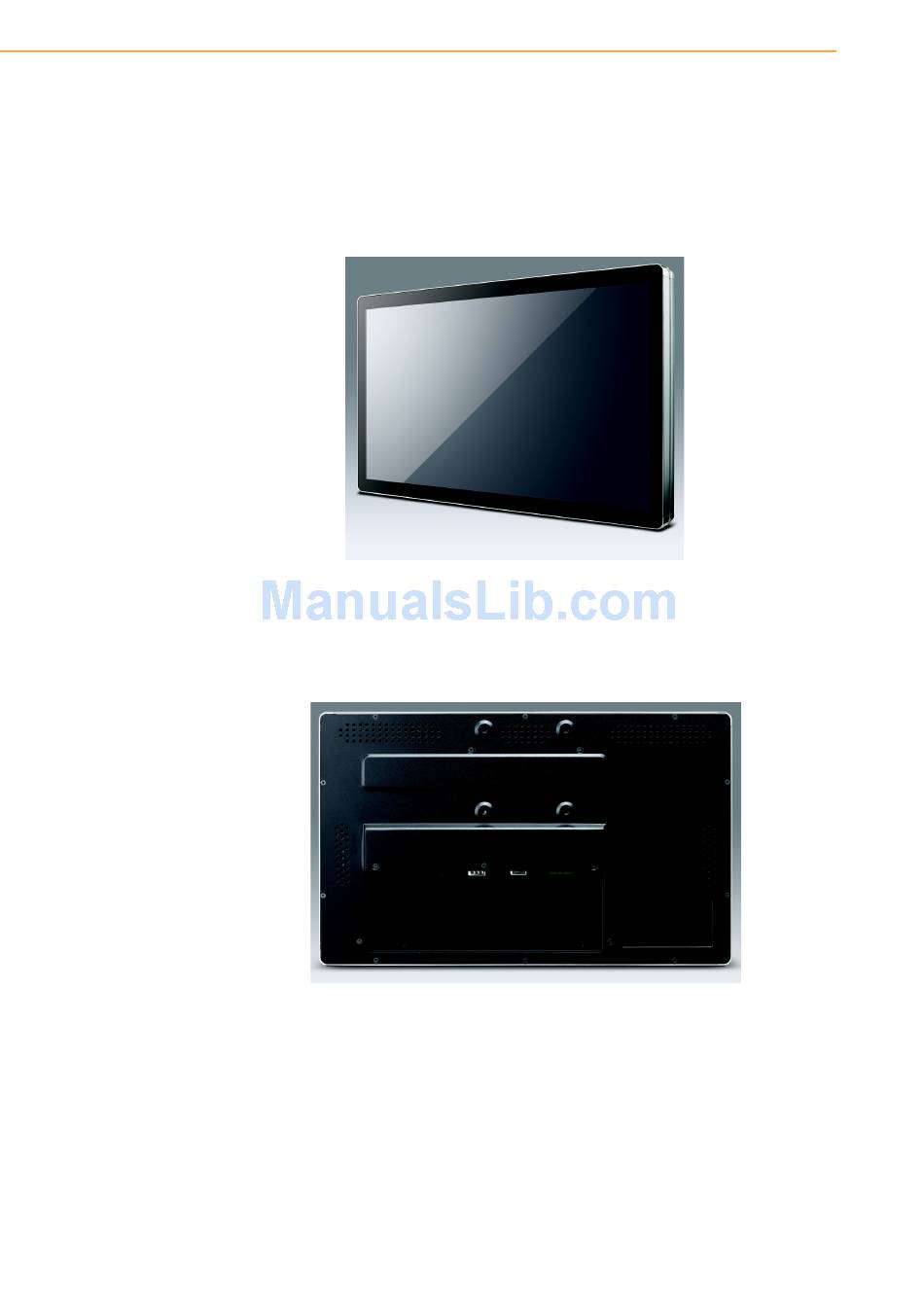

Figure 2.1 Front view of UTC-515

Figure 2.2 Rear view of UTC-515
