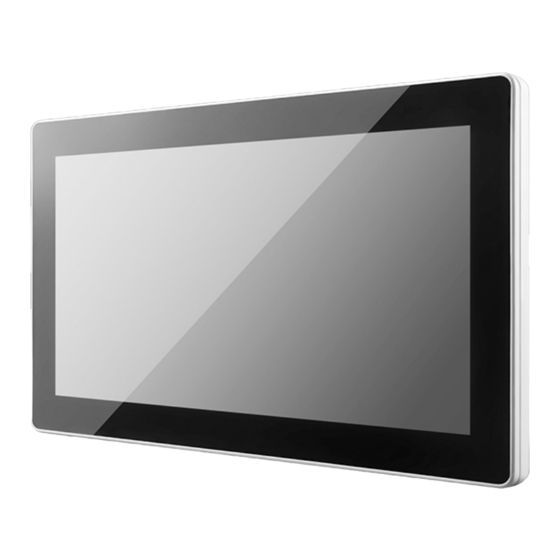

Ubiquitous touch computer with 18.5" tft lcd and intel core i processor
Hide thumbs Also See for UTC-318:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
UTC-318
Ubiquitous Touch Computer
®
with 18.5" TFT LCD and Intel
Core™ i Processor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UTC-318 and is the answer not in the manual?

Questions and answers

Related Manuals for Advantech UTC-318

Summary of Contents for Advantech UTC-318

  • Page 1 User Manual UTC-318 Ubiquitous Touch Computer ® with 18.5” TFT LCD and Intel Core™ i Processor...
  • Page 2 The documentation and the software included with this product are copyrighted 2021 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to improve the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd.
  • Page 3 Warning! Any changes or modifications made to the equipment that are not expressly approved by the relevant standards authority may void your authority to operate the equipment. Packing List Before installing UTC-318, please ensure that the following materials have been shipped: 1 x UTC-318 ...
  • Page 4 In accordance with IEC 704-1:1982 specifications, the sound pressure level at the operator's position does not exceed 70 dB (A). DISCLAIMER: These instructions are provided in accordance with IEC 704-1. Advan- tech disclaims all responsibility for the accuracy of any statements contained herein. UTC-318 User Manual...

  • Page 5: Table Of Contents

    Figure 1.1 UTC-318 Dimensions ..........6 Chapter System Setup ........7 Quick Tour....................8 Figure 2.1 UTC-318 Front View........... 8 Figure 2.2 UTC-318 Rear View ........... 8 Installation Procedures................10 2.2.1 Connecting the Power Cord............10 2.2.2 Connecting a Keyboard or Mouse ..........10 2.2.3...
  • Page 6 Table A.32:CN20(EF),CN22(G):External USB ......56 Table A.33:CN24,CN25 (D),CN18(EF),CN20(G):External USB. 57 Table A.34:CN26(D):External USB..........58 Table A.35:CN170(H),CN169(H),CN43(H):External USB ..59 Table A.36:CN27(D),CN21(E),CN22(F),CN25(G),CN66(H):Line- out ................60 Table A.37:CN28(D),CN22(E),CN21(F),CN24(GH):MIC-IN ..60 Table A.38:CN30(D),CN24(EF),CN27(G),CN15(H):HDMI ..61 Table A.39:CN42(H):DP ............. 62 Table A.40:CN31(DG),CN25(EF),DCIN1(H):DC-IN ....63 UTC-318 User Manual...
  • Page 7 Table A.41:CN29(D),CN23(EF),CN26(G):RJ11 ......63 Table A.42:BUTTON:Power Button ..........64 Table A.43:CN45(H):Power Button..........64 Table A.44:SW5(H):Power Button ..........64 UTC-318 User Manual...
  • Page 8 UTC-318 User Manual viii...

  • Page 9: Chapter 1 General Information

    Chapter General Information This chapter gives background information regarding UTC-318.  Introduction  System Specifications  LCD Specifications  Optional Modules  Dimensions...

  • Page 10: Introduction

    1.1 Introduction UTC-318 is a multi-purpose all-in-one computer equipped with a wide format, touch- based LCD panel. The system can be easily integrated with additional peripherals and display systems to support diverse self-service operations and interactive sig- nage applications at various locations. Additionally, with the removable frame design, the system can be panel mounted for control operations.

  • Page 11: Lan Function

    Wake-on-LAN: Supports wake-on-LAN with ATX power control and LAN team-  ing (in fault tolerance) 1.2.5 Touchscreen (Optional) 5-wire analog resistive (resistive flat glass)/projected Type capacitive touch panel (PCAP flat glass) Light Transmission Controller USB interface Durability (touches in a lifetime) 36 million UTC-318 User Manual...

  • Page 12: Environment

    9.3mm + A (the thickness of the plate). Caution! Use suitable mounting apparatus to avoid personal injury. Note! Please follow the recommendations provided in the user manual when installing UTC-318. UTC-318 User Manual...

  • Page 13: Lcd Specifications

     Note! The color LCD panel integrated with UTC-318 is of high quality and reli- able. However, the display may contain a few defective pixels that do not always illuminate. Even with the most up-to-date technology, it is impossible to completely eliminate defective pixels. Advantech is actively working to improve this technology.

  • Page 14: Dimensions

    1.4 Dimensions Figure 1.1 UTC-318 Dimensions UTC-318 User Manual...

  • Page 15: Chapter 2 System Setup

    Chapter System Setup This chapter details the processes for setting up UTC-318.  Quick Tour  Installation Procedures  BIOS Setup Utility  System Software Installation  Driver Installation...

  • Page 16: Quick Tour

    Before setting up UTC-318, take a moment to familiarize yourself with the location and functions of the controls, drives, connectors, and ports. When the UTC-318 is upright, the front panel should appear as shown in Figure 2.1. Figure 2.1 UTC-318 Front View Located at the rear of UTC-318 is the I/O section, as shown in Figure 2.2.
  • Page 17 1 x USB 3.0, 5 x USB 2.0 (UTC-318D) I. DC-In H. Power button UTC-318H IO Port A. COM1 B. COM2 C. Line-out D. Mic-in E. LAN ports x 2 F. HDMI G.DP H. USB 3.1 x 6 I. DC input 12-30V J. Power button UTC-318 User Manual...

  • Page 18: Installation Procedures

    Before powering on the device, connect a keyboard or mouse to the relevant port in the I/O section. 2.2.3 Switching on the Power The power button is located at the rear of the UTC-318, as shown in Figure 2.3. Figure 2.3 Connecting the Power Cord to the DC Inlet UTC-318 User Manual...

  • Page 19: Bios Setup Utility

    This equipment is likely to have been set up and configured by the dealer prior to delivery. Nonetheless, users may still need to use the UTC-318's BIOS setup utility to adjust the system configuration data, such as the current date and time or hard drive type.
  • Page 20 Select “Serial Port 2 Configuration” Change Serial Port 2 Mode [RS-232/422/485] UTC-318 User Manual...

  • Page 21: System Software Installation

    If necessary, insert the operating system installation or setup disk into the system disk drive. The UTC-318 BIOS utility supports system bootup directly from the CD-ROM drive. Users can also insert the system installation CD into the CD-ROM drive. Power on or reset the system by pressing “Ctrl+Alt+Del”. UTC-318 will automatically load the operating system from the disk or CD-ROM.
  • Page 22 UTC-318 User Manual...

  • Page 23: Chapter 3 Hardware Installation And Upgrades

    Chapter Hardware Installation and Upgrades This chapter explains the UTC-318 hardware installation process.  HDD Installation  mSATA Card Installation  WLAN Installation...

  • Page 24: Introduction

    UTC-318. 3.2 HDD Installation The UTC-318 internal controller can support one 2.5” SATA HDD. The SATA control- ler accelerates data transfers and allows the SATA HDD to exceed 150 MB. To install an HDD, follow the instructions below.

  • Page 25: Msata/M.2 Card Installation

    Remove the 6 screws on the reinforced board. Insert an mSATA/m.2 card into the slot. Replace and tighten the screws on the reinforced board. Replace the rear cover and secure in place with screws. Figure 3.2 Installing an mSATA/m.2 Card UTC-318 User Manual...

  • Page 26: Wlan Installation

    Users can choose the location according to their requirements. Remove the 10 screws from the rear cover. Remove the 6 screws on the reinforced board. Connect a coaxial cable (Advantech part number: 1750008953-01 for UTC- 318D/E/F, 170008954-01 for UTC-318G/H) to “connector” on the WLAN card. UTC-318 User Manual...
  • Page 27 Install the WLAN card into the slot of the motherboard. The wireless antenna cable should be routed as shown below. UTC-318 User Manual...
  • Page 28 UTC-318 User Manual...

  • Page 29: Chapter 4 Jumper And Connector Settings

    Chapter Jumper and Connector Settings This chapter provides instruc- tions for setting jumpers and con- necting peripherals, switches, and indicators.  Jumpers and Connectors  Function Description  Jumper and Connector Loca- tions...

  • Page 30: Jumpers And Connectors

    4.1 Jumpers and Connectors 4.1.1 Setting Jumpers Users can configure UTC-318 according to their specific application requirements by setting jumpers. A jumper is the simplest type of electrical switch and consists of two metal pins and a small metal clip (typically protected by a plastic cover) that slides over the pins to connect them.

  • Page 31: Jumpers And Connectors

    CN18(D),CN14(E),CN15(F),CN13(GH) COM1 CN21(D),CN16(EF),CN23(G),CN45(H) Power on switch CN22(D),CN15(E),CN16(FG),CN168(H) Speaker M.2_1(G),CN16(H) M.2(2230) M2M1(H) M.2(2280) CN23(D),CN17(EFG),CN11(H) LAN1/LAN2 CN24(D),CN19(EF),CN21(G),CN170(H) External USB CN25(D),CN20(EF),CN22(G),CN169(H) External USB CN26(D),CN18(EF),CN20(G),CN43(H) External USB CN27(D),CN21(E),CN22(F),CN25(G),CN66(H) Line-out CN28(D),CN22(E),CN21(F),CN24(GH) MIC-IN CN30(D),CN24(EF),CN27(G),CN15(H) HDMI CN42(H) CN31(DG),CN25(EF),DCIN1(H) DC-IN CN29(D),CN23(EF),CN26(G) RJ11 BUTTON,SW5(H),CN45(H) Power button UTC-318 User Manual...

  • Page 32: Locating Jumpers And Connectors

    4.1.3 Locating Jumpers and Connectors PCM-U301 (UTC-318D) PCM-U302 (UTC-318E) UTC-318 User Manual...
  • Page 33 PCM-U303 (UTC-318F) PCM-U304 (UTC-318G) UTC-318 User Manual...
  • Page 34 PCM-U305 (UTC-318H) UTC-318 User Manual...

  • Page 35: Jumpers

    HD_3x1P_100_D Description PIN HEADER 3x1P 2.54mm 180D(M) DIP 205-1x3GS Setting Function (1-2) (2-3)* 3.3V Table 4.4: JP1(H):PWM POWER Part Number 1653003101 Footprint HD_3x1P_79_D Description PIN HEADER 3x1P 2.0mm 180D(M) DIP 2000-13 WS Setting Function (1-2) (2-3)* 3.3V UTC-318 User Manual...
  • Page 36 PIN HEADER 4x1P 2.0mm 180D(M) DIP 21N12050 Setting Function (2-3)* Normal (3-4) Clear CMOS Table 4.7: JP5(H):Clear CMOS Part Number 1653003101 Footprint HD_3x1P_79_D Description PIN HEADER 3x1P 2.0mm 180D(M) DIP 2000-13 WS Setting Function (1-2)* Normal (2-3) CMOS Clear UTC-318 User Manual...
  • Page 37 PIN HEADER 3*1P 180D(M) 2.0mm DIP 2000-13 WS Setting Function (1-2) (2-3)* Table 4.10: CN17(D):COM1 Ring Part Number 1653005101 Footprint HD_5x1P_79_D Description PIN HEADER 5x1P 2.0mm 180D(M) DIP 1140-000-05SN Setting Function (1-2) RING (3-4)* COM1 RI output +5V (4-5)* COM1 RI output +12V UTC-318 User Manual...
  • Page 38 Setting Function (1-2) (2-3)* Table 4.13: CN10: CSAFE Power Part Number 1653003201 Footprint HD_3x2P_79_D Description PIN HEADER 3x2P 2.0mm 180D(M) DIP 21N22050 Setting Function (1-3) * CSAFE output +5V (3-4) CSAFE output +9V (3-5) CSAFE output +12V UTC-318 User Manual...
  • Page 39 Appendix Pin Assignments...
  • Page 40 WF_8P_49_BOX_D Description WAFER BOX 8P 1.25mm 180D(M) DIP A1251WV0-8P Pin name +12V_INVERTER +12V_INVERTER BKLT_EN BRIGHT1 +12V_INVERTER Table A.2: CN3(D):Internal USB Part Number 1655000453 Footprint WHL5V-2M-24W1140 Description WAFER BOX 2.0mm 5P 180D(M) DIP WO/Pb JIH VEI Pin name UTC-318 User Manual...
  • Page 41 Footprint SPH20X2 Description B/B Conn. 40P 1.25mm 90D SMD DF13-40DP-1.25V(91) Pin name +3.3V or +5V +3.3V or +5V +3.3V or +5V +3.3V or +5V LVDS0_D0- LVDS1_D0- LVDS0_D0+ LVDS1_D0+ GND- LVDS0_D1- LVDS1_D1- LVDS0_D1+ LVDS1_D1+ LVDS0_D2- LVDS1_D2- LVDS0_D2+ LVDS1_D2+- UTC-318 User Manual...
  • Page 42 Table A.4: CN4(DEFG):LVDS LVDS0_CLK- LVDS1_CLK- LVDS0_CLK+ LVDS1_CLK+ LVDS0_DDC_SC LVDS0_DDC_SD LVDS0_D3- LVDS1_D3- LVDS0_D3+ LVDS1_D3+ +3.3V or +5V +3.3V or +5V UTC-318 User Manual...
  • Page 43 Table A.5: LVDS1(H):LVDS Part Number 1653006918-01 Footprint SPH20X2 Description (DEL20)Wafer 2x20P/1.25mm/(M)/NY9T/VA/GFL/S/WH Pin name +3.3V +3.3V LVDS0_D0- LVDS1_D0- LVDS0_D0+ LVDS1_D0+ GND- LVDS0_D1- LVDS1_D1- LVDS0_D1+ LVDS1_D1+ LVDS0_D2- LVDS1_D2- LVDS0_D2+ LVDS1_D2+- LVDS0_CLK- LVDS1_CLK- LVDS0_CLK+ LVDS1_CLK+ LVDS0_D3- LVDS1_D3- LVDS0_D3+ LVDS1_D3+ UTC-318 User Manual...
  • Page 44 UTC-318 User Manual...
  • Page 45 Table A.6: CN5(D),CN3(EF),CN9(H):eDP Part Number 1653006914-01 Footprint WB10x2P-S1.25 Description WTB 2x10P 1.25mm 180D(M) SMD W/P DF13E-20DP-1.25 Pin name TXN0 TXN3 TXP0 TXP3 TXN1 TXP1 AUX- AUX+ TXN2 TXP2 LCD_POWER LCD_POWER UTC-318 User Manual...
  • Page 46 Table A.7: CN3(G) eDP Part Number 1653006914-01 Footprint WB10x2P-S1.25 Description WTB 2x10P 1.25mm 180D(M) SMD W/P DF13E-20DP-1.25 Pin name +5V_LCD +5V_LCD TXN0 TXP0 TXN3 TXP3 TXN1 TXP1 AUX- AUX+ TXN2 TXP2 +V3.3_LCD +V3.3_LCD UTC-318 User Manual...
  • Page 47 Table A.8: CN11(DF),CN10(G) VGA Part Number 1653208260 Footprint HD_8x2P_79_BOX Description BOX HEADER 8x2P 2.00mm 180D(M) SMD 23N6850 Pin name VGA_R VGA_G VGA_B VGA_DDAT VGA_HS VGA_VS VGA_DCLK UTC-318 User Manual...
  • Page 48 Table A.9: SATA(DEFG):SATA Part Number 1654004659 Footprint WF_5P_98_BOX_D Description WAFER BOX 5P 2.5mm 180D(M) DIP 2503-WS-5 Pin name Table A.10: SATA1(H):SATA Part Number 1654013471-01 Footprint sata_7p_watm-07dbn4a3b8uw_d Description SATA 7P/1.27mm/(F)/NY46/VA/G15u/D/BK/H8.45mm Pin name UTC-318 User Manual...
  • Page 49 Part Number 1659254005 Footprint SATA_7P_WATM-07DBN4A3B8UW_D Description Serial ATA 7P 1.27mm 180D(M) DIP WATM-07DBN4A3B8 Pin name +3.3V +12V Table A.12: CN23(H):SATA LED Part Number 1655000170 Footprint WF_4P_49_BOX_R1_D Description WAFER 1.25mm 4P 180D DIP A1251WV0-4P Pin name +5VSB SATA0_LED UTC-318 User Manual...
  • Page 50 Table A.14: CN9(D),CN6(EG),CN26(F),CN41(H):Touch Part Number 1655005110 Footprint WF_5P_100_RA_D Description WAFER 5P 2.54mm 90D(M) DIP 2542-WR-5 Pin name SENSE Table A.15: CN13(D),DIMM(EG):DDR3L SODIMM Part Number 1651002087-11 Footprint DDR3_204P_AS0A626-N2S6-7H Description DDR3 SODIMM H=5.2mm STD 204P SMD AS0A626-H2S6-7H Pin name UTC-318 User Manual...
  • Page 51 DDR4 SODIMM H=5.2mm 260P SMD AS0A826-H2SB-7H STD Pin name Table A.17: MINIPCIE1(DEF):MINIPCIE Part Number 1654002538 Footprint FOX_AS0B226-S68K7F Description MINI PCI E 52P 6.8mm 90D SMD AS0B226-S68Q-7H Pin name MPCIE1_WAKE# +3.3VSB MPCIE_CLKREQ# CLK_MINI_PCIE- CLK_MINI_PCI+ MPCIE1_DISABLE# PLTRST# PCIE_RX- +3.3VSB PCIE_RX+ +1.5V SMB_CLK_MPCIE1 PCIE_TX- SMB_DAT_MPCIE1 PCIE_TX+ UTC-318 User Manual...
  • Page 52 Table A.17: MINIPCIE1(DEF):MINIPCIE USB_D- USB_D+ +3.3VSB +3.3VSB +3.3VSB UTC-318 User Manual...
  • Page 53 Table A.18: MSATA1(DEFG):MSATA Part Number 1654002538 Footprint FOX_AS0B226-S68K7F Description MINI PCI E 52P 6.8mm 90D SMD AS0B226-S68Q-7H Pin name +3.3V SATA1_RX+ +3.3V SATA1_RX- SATA1_TX- SATA1_TX+ +3.3V +3.3V UTC-318 User Manual...
  • Page 54 Table A.18: MSATA1(DEFG):MSATA +3.3V +3.3V UTC-318 User Manual...
  • Page 55 Table A.19: CN14(D),CN10(F),CN7(GH):COM4 Part Number 1655000197 Footprint WF_5x2P_79_BOX_D_P1R Description 1655_WF_5x2P_79_BOX_D_P1R_0.Normal Pin name DTR# DSR# RTS# CTS# Table A.20: CN15(D) ,CN12(F),CN9(G),CN96(H):COM3 Part Number 1655000197 Footprint WF_5x2P_79_BOX_D_P1R Description 1655_WF_5x2P_79_BOX_D_P1R_0.Normal Pin name DTR# DSR# RTS# CTS# UTC-318 User Manual...
  • Page 56 1655000197 Footprint WF_5x2P_79_BOX_D_P1R Description 1655_WF_5x2P_79_BOX_D_P1R_0.Normal Pin name LINE_IN1_L LINIE_IN1_R COM3_ RX+ COM3_TX V_CSAFE COM3_CTS# Table A.22: CN16(D),CN13(E),CN14(F),CN11(G),CN44(H):COM2 Part Number 1655000197 Footprint WF_5x2P_79_BOX_D_P1R Description 1655_WF_5x2P_79_BOX_D_P1R_0.Normal Pin name 422/485 TX- 422/485 TX+ 422 RX+ 422 RX- DSR# RTS# CTS# UTC-318 User Manual...
  • Page 57 Table A.23: CN18(D),CN14(E),CN15(F),CN13(GH):COM1 Part Number 1655000197 Footprint WF_5x2P_79_BOX_D_P1R Description 1655_WF_5x2P_79_BOX_D_P1R_0.Normal Pin name DTR# DSR# RTS# CTS# Table A.24: CN21(D),CN16(EF),CN23(G),CN45(H):Power on Switch Part Number 1655302020 Footprint WF_2P_79_BOX_R1_D Description WAFER BOX 2P 2.0mm 180D(M) DIP A2001WV2-2P Pin name PSIN UTC-318 User Manual...
  • Page 58 Table A.26: M.2_1(G):M.2_2230 Part Number 1654012663-01 Footprint NGFF_75P_APCI0163-P001A Description NGFF 75P 0.5mm 90D(F) H=8.5mm SMD APCI0163-P001A Pin name 1,7,33,39,45,51 18,57,63,69,75 USB_D+ 2,4,72,74 3.3V USB_D- PCIE_TX+ PCIE_TX- PCIE_RX- PCIE_RX+ CLK_100M+ CLK_100M- PCIE_WAKE# 9,11,13,15,17,19,21,23 NC 61,63,65,67,71,73 6,8,10,12,14,16,20,22 32,34,36,38,40,42,44 46,48,58,60,62,64,66 68,70 UTC-318 User Manual...
  • Page 59 UTC-318 User Manual...
  • Page 60 Table A.27: CN16(H):M.2_2230 Part Number 1654013690-01 Footprint NGFF_75P_APCI0085-P003A Description NGFF 75P/0.5/F/LCP+40GF/RA/G10u/S/BK/H3.0/E Key Pin name 1,7,18,33,39,45 51,57,63,69,75,H4 57,71,73,75,H3,H4 2,4,72,74 3.3V SUSCLK_z_EKEY BT_DISABLE# WIFI_DISABLE# I2C0_KEYE_DAT I2C0_KEYE_CLK USB8_z_P+ USB8_z_P- PCIE_M2_z_TX7+ PCIE_M2_z_TX7- CLK_M2E_z_PCIE+ CLK_M2E_z_PCIE- PCIE_a_CLKREQ2# UTC-318 User Manual...
  • Page 61 NGFF 75P 0.5mm 90D(F) H=8.5mm SMD 2E0BC21-S85BM-7H Pin name 1,3,9,15,21,27 33,39,45,51 57,71,73,75,H4 5,17,29,41 PERN 7,19,31,43 PERP 11,23,35,47 PETN 13,25,37,49 PETP 2,4,12,14,16 3.3V 18,70,72,74 3.3V SATA1_C_TX+ SATA1_C _TX- SATA1_C _RX- SATA1_C _RX+ CLK5_M2M+ CLK5_M2M- M2_2280_RST# M2_2280_CLKREQ# M2_2280_WAKE# CLK32K_M2_2280 6,8,20,22,24,26 28,30,32,34,36 40,42,44,46 48,56,58 UTC-318 User Manual...
  • Page 62 Table A.29: CN23(D),CN17(EFG):LAN1/LAN2 Part Number 1652003274 Footprint RJ45_28P_RTB-19GB9J1A Description PHONE JACK RJ45 28P DIP RTB-19GB9J1A Pin name Table A.30: CN11(H):LAN1/LAN2 Part Number 1652006625-01 Footprint RJ45_28P_RTB-19GB9J4A Description PHONE JACK RJ45 28P 2.54mm DIP RTB-19GB9J4A Pin name UTC-318 User Manual...
  • Page 63 Table A.31: CN19(EF),CN21(G):External USB Part Number 1654010969-01 Footprint USB_9x2P_UEA1112C-8HS6-4F Description USB CONN. 18P 2.0mm 90D(F) DIP UEA1112C Pin name RX_D- RX_D+ TX_D- TX_D+ RX_D- RX_D+ TX_D- TX_D+ UTC-318 User Manual...
  • Page 64 Table A.32: CN20(EF),CN22(G):External USB Part Number 1654010969-01 Footprint USB_9x2P_UEA1112C-8HS6-4F Description USB CONN. 18P 2.0mm 90D(F) DIP UEA1112C Pin name RX_D- RX_D+ TX_D- TX_D+ RX_D- RX_D+ TX_D- TX_D+ UTC-318 User Manual...
  • Page 65 Table A.33: CN24,CN25 (D),CN18(EF),CN20(G):External USB Part Number 1654009513 Footprint USB_8P_UB1112C-8FDE-4F Description USB CONN. 8P 2.0mm 90D DIP UB1112C-8FDE-4F Pin name +5VSB +5VSB UTC-318 User Manual...
  • Page 66 Table A.34: CN26(D):External USB Part Number 1654010199 Footprint USB_13P_UEA1112C-UHS6-4F Description USB Conn. 2.0+3.0 13P 90D(F) DIP UEA1112C-UHS6-4 Pin name +5VSB RX_D- RX_D+ TX_D- TX_D+ +5VSB UTC-318 User Manual...
  • Page 67 Table A.35: CN170(H),CN169(H),CN43(H):External USB Part Number 1654013480-01 Footprint USB_9x2P_USB5-18F5-BNR0-10 Description USB 3.1 2x9P/2.0mm/PA66/(F)/RA/G30u/D/BU/H15.69 Pin name UTC-318 User Manual...
  • Page 68 KUONYI_PJ-2508PC-5-L Description PHONE JACK 5P 3.5φ 90D(F) AZALIA GREEN DIP WO/P Pin name OUT_L OUT_R Table A.37: CN28(D),CN22(E),CN21(F),CN24(GH):MIC-IN Part Number 1652001584 Footprint KUONYI_PJ-2508PA-5-L Description PHONE JACK 5P 3.5φ 90D(F) AZALIA PINK DIP WO/Pb Pin name MIC_L MIC_R UTC-318 User Manual...
  • Page 69 Table A.38: CN30(D),CN24(EF),CN27(G),CN15(H):HDMI Part Number 1654011175-01 Footprint HDMI_19P_QJ51191-LFB4-7F Description HDMI Conn. 19P 0.5mm 90D(F) SMD QJ51191-LFB4-7F Pin name HDMI_TX0+ HDMI_TX0- HDMI_TX1+ HDMI_TX1- HDMI_TX2+ HDMI_TX2- HDMI_TX3+ HDMI_TX3- HDMI_CLK HDMI_DAT HDMI_DET UTC-318 User Manual...
  • Page 70 Table A.39: CN42(H):DP Part Number 1654006275 Footprint DPCON_20P_3VD11203-H7A0-4H Description DisplayPort Conn. 20P 1.40mm 90D DIP 3VD11203 Pin name 2,5,8,11,14,16,19 DP_TX0+ DP_TX0- DP_TX1+ DP_TX1- DP_TX2+ DP_TX2- DP_TX3+ DP_TX3- DP_AUX_EN# DP1_AUX+ DP1_AUX- DDP2_DP_HPD 3.3V UTC-318 User Manual...
  • Page 71 Footprint PJ_2P_2DC-G213B200 Description DC POWER JACK 2.5mm 90D(M) DIP 2DC-G213B200 Pin name DC_IN Table A.41: CN29(D),CN23(EF),CN26(G):RJ11 Part Number 1652005977-02 Footprint S RJ11_6P_RJ1201-66N024R0 Description PHONE JACK RJ11 6P6C 90D(F) DIP 6u RJ1201-66N024 Pin name Drawer_A Drawer_state Power Drawer_B UTC-318 User Manual...
  • Page 72 Table A.43: CN45(H):Power Button Part Number 1655302020 Footprint WF_2P_79_BOX_R1_D Description WAFER BOX 2P 2.0mm 180D(M) DIP A2001WV2-2P Pin name ATX_PWRBTN# Table A.44: SW5(H):Power Button Part Number 1600002384 Footprint SW_2P_ELTSA-63_D Description PUSH SW ELTSA-63N-H DIP 4P 7.4x6.65x8.5mm Pin name ATX_PWRBTN# UTC-318 User Manual...
  • Page 73 UTC-318 User Manual...
  • Page 74 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2021...
