Advantech UTC-318 Series User Manual

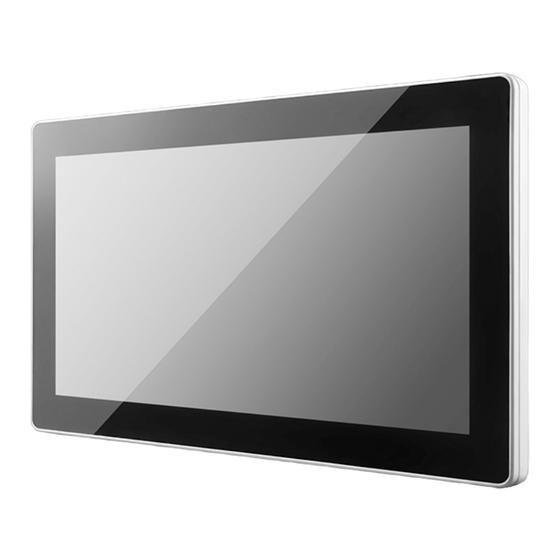

Ubiquitous touch computer with 18.5” tft lcd and intel core i processor
Hide thumbs Also See for UTC-318 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
UTC-318
Ubiquitous Touch Computer
with 18.5" TFT LCD and Intel®
Core™i Processor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UTC-318 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Advantech UTC-318 Series

Summary of Contents for Advantech UTC-318 Series

  • Page 1 User Manual UTC-318 Ubiquitous Touch Computer with 18.5” TFT LCD and Intel® Core™i Processor...
  • Page 2 The documentation and the software included with this product are copyrighted 2019 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to improve the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd.
  • Page 3 If any of these items are missing or damaged, contact your distributor or sales repre- sentative immediately. Technical Support and Assistance Visit the Advantech website at http://support.advantech.com to obtain the latest product information. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you require additional assistance.
  • Page 4 Safety Instructions Read these safety instructions carefully. Retain this user manual for future reference. Disconnect this equipment from all AC outlets before cleaning. Use only a damp cloth for cleaning. Do not use liquid or spray detergents. For pluggable equipment, the power outlet socket should be located near the equipment and easily accessible.

  • Page 5: Table Of Contents

    Contents Chapter General Information ......1 Introduction ....................2 System Specifications ................2 1.2.1 General ..................2 1.2.2 Standard PC Functions..............2 1.2.3 Audio Function ................2 1.2.4 LAN Function ................3 1.2.5 Touchscreen (Optional) ..............3 1.2.6 Environment.................. 3 LCD Specifications..................4 Optional Modules ..................
  • Page 6 Table 4.3: JP1(D), JP3(EF): LCD Power........24 Table 4.4: JP3(D), JP6(E), JP5(F), JP4(G): Clear CMOS..24 Table 4.5: JP4(D), JP5(EG), JP7(F): AT/ATX Power SEL ..25 Table 4.6: CN17(D): COM1 Ring ..........25 Table 4.7: CN9(EF), CN14(G): COM1, COM2 Ring....25 Table 4.8: JCASH1: Cash Drawer Power SEL......

  • Page 7: Chapter 1 General Information

    Chapter General Information This chapter gives background information regarding UTC-318.  Introduction  System Specifications  LCD Specifications  Optional Modules  Dimensions...

  • Page 8: Introduction

    1.1 Introduction UTC-318 is a multi-purpose all-in-one computer equipped with a wide format, touch- based LCD panel. The system can be easily integrated with additional peripherals and display systems to support diverse self-service operations and interactive sig- nage applications at various locations. Additionally, with the removable frame design, the system can be panel mounted for control operations.

  • Page 9: Lan Function

    1.2.4 LAN Function  Chipset: – LAN1 Intel® I218LM, LAN2 Intel® WGI211AT (UTC-318E) – LAN1 Intel® I219LM, LAN2 Intel® WGI211AT (UTC-318F) – LAN1 Intel® WGI211AT, LAN2 Intel® WGI211AT (UTC-318D/G)  Speed: 1000 Mbp  Interface: 2 x RJ45  Wake-on-LAN: Supports wake-on-LAN with ATX power control and LAN team- ing (in fault tolerance) 1.2.5 Touchscreen (Optional) 5-wire analog resistive (resistive flat glass)/projected...

  • Page 10: Lcd Specifications

    However, the display may contain a few defective pixels that do not always illuminate. Even with the most up-to-date technology, it is impossible to completely eliminate defective pixels. Advantech is actively working to improve this technology. UTC-318 User Manual...

  • Page 11: Optional Modules

    1.4 Optional Modules  Memory: – 1 x 204-pin SODIMM DDR3L 1333 MHz up to 8 GB (UTC-318D/E) – 1 x 260-pin SODIMM DDR4 2133 MHz up to 16 GB (UTC-318F) – 1 x 204-pin SODIMM DDR3L 1866 MHz up to 8 GB (UTC-318G) ...

  • Page 12: Dimensions

    1.5 Dimensions Figure 1.1 UTC-318 Dimensions UTC-318 User Manual...

  • Page 13: Chapter 2 System Setup

    Chapter System Setup This chapter details the processes for setting up UTC-318.  Quick Tour  Installation Procedures  BIOS Setup Utility  System Software Installation  Driver Installation...

  • Page 14: Quick Tour

    2.1 Quick Tour Before setting up UTC-318, take a moment to familiarize yourself with the location and functions of the controls, drives, connectors, and ports. When the UTC-318 is upright, the front panel should appear as shown in Figure 2.1. Figure 2.1 UTC-318 Front View Located at the rear of UTC-318 is the I/O section, as shown in Figure 2.2.

  • Page 15: Installation Procedures

    A. COM port B. Line-Out C. Mic-In D. Gigabit LAN x 2 E. HDMI F. 4 x USB 3.0, 2 x USB 2.0 (UTC-318E/F/G) G. RJ11 1 x USB 3.0, 5 x USB 2.0 (UTC-318D) I. DC-In H. Power button 2.2 Installation Procedures 2.2.1 Connecting the Power Cord UTC-318 can be powered by a DC electrical outlet.

  • Page 16: Bios Setup Utility

    2.3 BIOS Setup Utility This equipment is likely to have been set up and configured by the dealer prior to delivery. Nonetheless, users may still need to use the UTC-318's BIOS setup utility to adjust the system configuration data, such as the current date and time or hard drive type.
  • Page 17 Select “Serial Port 2 Configuration” Change Serial Port 2 Mode [RS-232/422/485] UTC-318 User Manual...

  • Page 18: System Software Installation

    Advantech website. Note! The drivers and utilities used for UTC-318 are subject to change without notice. If in doubt, check the Advantech website or contact our application engi- neers for the latest information regarding drivers and utilities. UTC-318 User Manual...

  • Page 19: Chapter 3 Hardware Installation And Upgrades

    Chapter Hardware Installation and Upgrades This chapter explains the UTC-318 hardware installation process.  HDD Installation  mSATA Card Installation  WLAN Installation...

  • Page 20: Introduction

    3.1 Introduction UTC-318 is a touch-based computer housed in an plastic enclosure. The system’s rear cover must be removed in order to install an HDD, DRAM, or mini SATA card, or to conduct hardware maintenance/upgrades. Warning! Do not remove the rear cover until you have verified that no power is flowing within UTC-318.

  • Page 21: Msata Card Installation

    3.3 mSATA Card Installation Remove the 10 screws on the rear cover. Remove the 6 screws on the reinforced board. Insert an mSATA card into the mSATA slot. Replace and tighten the screws on the reinforced board. Replace the rear cover and secure in place with screws. Figure 3.2 Installing an mSATA Card UTC-318 User Manual...

  • Page 22: Wlan Installation

    3.4 WLAN Installation Reserve two locations for the external antenna, one at the I/O port, the other on the rear cover. Users can choose the location according to their requirements. Remove the 10 screws from the rear cover. Remove the 6 screws on the reinforced board. UTC-318 User Manual...
  • Page 23 Connect a coaxial cable (Advantech part number: 1750008953-01 for UTC- 318D/E/F, 170008954-01 for UTC-318G) to “ANT1” on the WLAN card. Install the WLAN card on the underside of the motherboard. The wireless antenna cable should be routed as shown below.
  • Page 24 UTC-318 User Manual...

  • Page 25: Chapter 4 Jumper And Connector Settings

    Chapter Jumper and Connector Settings This chapter provides instruc- tions for setting jumpers and con- necting peripherals, switches, and indicators.  Jumpers and Connectors  Function Description  Jumper and Connector Loca- tions...

  • Page 26: Jumpers And Connectors

    4.1 Jumpers and Connectors 4.1.1 Setting Jumpers Users can configure UTC-318 according to their specific application requirements by setting jumpers. A jumper is the simplest type of electrical switch and consists of two metal pins and a small metal clip (typically protected by a plastic cover) that slides over the pins to connect them.

  • Page 27: Jumper And Connector Functions

    4.1.2 Jumper and Connector Functions Table 4.1: Jumper and Connector Functions CN1(DE), CN2(FG) Backlight Internal USB CN4(DEFG) LVDS CN5(D), CN8(EFG) CN11(DF), CN10(G) SATA SATA CN7(D), CN3(EFG) SATA power CN8(D), CN5(G) Internal USB CN9(D), CN6(EG), CN26(F) Touch CN13(D), DIMM(EFG) DDR3L/4 SODIMM MINIPCIE1(DEF) Mini PCIE MSATA1(DEFG)

  • Page 28: Jumper And Connector Locations

    4.1.3 Jumper and Connector Locations PCM-U301 (UTC-318D) PCM-U302 (UTC-318E) UTC-318 User Manual...
  • Page 29 PCM-U303 (UTC-318F) PCM-U304 (UTC-318G) UTC-318 User Manual...

  • Page 30: Jumpers

    4.2 Jumpers 4.2.1 Jumper List Table 4.2: Jumper List JP1(D), JP3(EF) LCD power JP3(D), JP6(E), JP5(F), JP4(G) Clear CMOS JP4(D), JP5(EG), JP7(F) AT/ATX power SEL CN17(D), CN9(EF), CN14(G) COM1, COM2 ring JCASH1 Cash drawer power CN10(E) CSAFE power 4.2.2 Jumper Settings Table 4.3: JP1(D), JP3(EF): LCD Power Part Number 1653003100...
  • Page 31 Table 4.5: JP4(D), JP5(EG), JP7(F): AT/ATX Power SEL Part Number 1653003101 Footprint HD_3x1P_79_D Description Pin header 3 x 1P 2.0 mm 180D(M) DIP square W/O Pb Setting Function (1-2) (2-3)* Table 4.6: CN17(D): COM1 Ring Part Number 1653005101 Footprint HD_5x1P_79_D Description Pin header 5 x 1P 2.0 mm 180D(M) DIP 1140-000-05SN Setting...
  • Page 32 Table 4.8: JCASH1: Cash Drawer Power SEL Part Number 1653003100 Footprint HD_3x1P_100_D Description Pin header 3 x 1P 2.54 mm 180D(M) DIP 1130-000-03S Setting Function (1-2) (2-3)* Table 4.9: CN10: CSAFE Power Part Number 1653003201 Footprint HD_3x2P_79_D Description Pin header 3 x 2P 2.0 mm 180D(M) DIP 21N22050 Setting Function (1-3) *...
  • Page 33 Appendix I/O Pin Assignments...
  • Page 34 A.1 Pin Assignments Table A.1: CN1(DE), CN2(FG): Backlight Part Number 1655004512-01 Footprint WF_8P_49_BOX_D Description Wafer box 8P 1.25 mm 180D(M) DIP A1251WV0-8P Pin Name +12V_INVERTER +12V_INVERTER BKLT_EN BRIGHT1 +12V_INVERTER Table A.2: CN3: Internal USB Part Number 1655000453 Footprint WHL5V-2M-24W1140 Description Wafer box 5P 2.0 mm 180D(M) DIP WO/Pb JIH VEI Pin Name UTC-318 User Manual...
  • Page 35 Table A.3: CN4(DEFG): LVDS Part Number 1653920200 Footprint SPH20X2 Description B/B connector 40P 1.25 mm 90D SMD DF13-40DP-1.25V(91) Pin Name +3.3V or +5V +3.3V or +5V - +3.3V or +5V +3.3V or +5V LVDS0_D0- LVDS1_D0- LVDS0_D0+ LVDS1_D0+ GND- LVDS0_D1- LVDS1_D1- LVDS0_D1+ LVDS1_D1+ LVDS0_D2-...
  • Page 36 Table A.4: CN4(G): LVDS Part Number 1653920200 Footprint SPH20X2 Description B/B connector 40P 1.25 mm 90D SMD DF13-40DP-1.25V(91) Pin Name +3.3V_LCD +3.3V_LCD +3.3V_LCD +3.3V_LCD LVDS0_D0- LVDS1_D0- LVDS0_D0+ LVDS1_D0+ GND- LVDS0_D1- LVDS1_D1- LVDS0_D1+ LVDS1_D1+ LVDS0_D2- LVDS1_D2- LVDS0_D2+ LVDS1_D2+- UTC-318 User Manual...
  • Page 37 Table A.4: CN4(G): LVDS LVDS0_CLK- LVDS1_CLK- LVDS0_CLK+ LVDS1_CLK+ LVDS0_D3- LVDS1_D3- LVDS0_D3+ LVDS1_D3+ LVDS0_DDC_SC LVDS0_DDC_SD +V5_LCD +V5_LCD +V5_LCD +V5_LCD UTC-318 User Manual...
  • Page 38 Table A.5: CN5(D), CN3(EF): eDP Part Number 1653006914-01 Footprint WB10x2P-S1.25 Description WTB 2 x 10P 1.25 mm 180D(M) SMD W/P DF13E-20DP-1.25 Pin Name TXN0 TXN3 TXP0 TXP3 TXN1 TXP1 AUX- AUX+ TXN2 TXP2 LCD_POWER LCD_POWER UTC-318 User Manual...
  • Page 39 Table A.6: CN3(G): eDP Part Number 1653006914-01 Footprint WB10x2P-S1.25 Description WTB 2 x 10P 1.25 mm 180D(M) SMD W/P DF13E-20DP-1.25 Pin Name +5V_LCD +5V_LCD TXN0 TXP0 TXN3 TXP3 TXN1 TXP1 AUX- AUX+ TXN2 TXP2 +V3.3_LCD +V3.3_LCD UTC-318 User Manual...
  • Page 40 Table A.7: CN11(DF), CN10(G): VGA Part Number 1653208260 Footprint HD_8x2P_79_BOX Description Box header 8 x 2P 2.0 mm 180D(M) SMD 23N6850 Pin Name VGA_R VGA_G VGA_B VGA_DDAT VGA_HS VGA_VS VGA_DCLK Table A.8: SATA(DEFG): SATA Part Number 1654004659 Footprint WF_5P_98_BOX_D Description Wafer box 5P 2.5 mm 180D(M) DIP 2503-WS-5 Pin Name UTC-318 User Manual...
  • Page 41 Table A.9: CN7(D), CN3(EFG): SATA Power Part Number 1659254005 Footprint SATA_7P_WATM-07DBN4A3B8UW_D Description Serial ATA 7P 1.27 mm 180D(M) DIP WATM-07DBN4A3B8 Pin Name +3.3V +12V Table A.10: CN8(D), CN5(G): Internal USB Part Number 1655000453 Footprint WHL5V-2M-24W1140 Description Wafer box 5P 2.0 mm 180D(M) DIP WO/Pb JIH VEI Pin Name UTC-318 User Manual...
  • Page 42 Table A.11: CN9(D), CN6(EG), CN26(F): Touch Part Number 1655005110 Footprint WF_5P_100_RA_D Description Wafer 5P 2.54 mm 90D(M) DIP 2542-WR-5 Pin Name SENSE Table A.12: CN13(DEG): DDR3L SODIMM Part Number 1651002087-11 Footprint DDR3_204P_AS0A626-N2S6-7H Description DDR3 SODIMM H = 204P 5.2 mm STD SMD AS0A626-H2S6-7H Table A.13: DIMM(F): DDR4 SODIMM Part Number 1651002829-01...
  • Page 43 Table A.14: MINIPCIE1(DEF): Mini PCIE Part Number 1654002538 Footprint FOX_AS0B226-S68K7F Description Mini PCIE 52P 6.8 mm 90D SMD AS0B226-S68Q-7H Pin Name MPCIE1_WAKE# +3.3VSB MPCIE_CLKREQ# CLK_MINI_PCIE- CLK_MINI_PCI+ MPCIE1_DISABLE# PLTRST# PCIE_RX- +3.3VSB PCIE_RX+ +1.5V SMB_CLK_MPCIE1 PCIE_TX- SMB_DAT_MPCIE1 PCIE_TX+ USB_D- USB_D+ +3.3VSB +3.3VSB UTC-318 User Manual...
  • Page 44 Table A.14: MINIPCIE1(DEF): Mini PCIE +3.3VSB UTC-318 User Manual...
  • Page 45 Table A.15: MSATA1(DEFG): mSATA Part Number 1654002538 Footprint FOX_AS0B226-S68K7F Description Mini PCIE 52P 6.8 mm 90D SMD AS0B226-S68Q-7H Pin Name +3.3V SATA1_RX+ +3.3V SATA1_RX- SATA1_TX- SATA1_TX+ +3.3V +3.3V UTC-318 User Manual...
  • Page 46 Table A.15: MSATA1(DEFG): mSATA +3.3V +3.3V Table A.16: CN14(D), CN10(F), CN7(G): COM4 Part Number 1655000197 Footprint WF_5x2P_79_BOX_D_P1R Description 1655_WF_5x2P_79_BOX_D_P1R_0.Normal Pin Name DTR# DSR# RTS# CTS# UTC-318 User Manual...
  • Page 47 Table A.17: CN15(D), CN13(E), CN12(F), CN11(G): COM3 Part Number 1655000197 Footprint WF_5x2P_79_BOX_D_P1R Description 1655_WF_5x2P_79_BOX_D_P1R_0.Normal Pin Name DTR# DSR# RTS# CTS# Table A.18: CN16(D), CN13(E), CN14(F), CN11(G): COM2 Part Number 1655000197 Footprint WF_5x2P_79_BOX_D_P1R Description 1655_WF_5x2P_79_BOX_D_P1R_0.Normal Pin Name 422/485 TX- 422/485 TX+ 422 RX+ 422 RX- DSR#...
  • Page 48 Table A.19: CN18(D), CN14(E), CN15(F), CN13(G): COM1 Part Number 1655000197 Footprint WF_5x2P_79_BOX_D_P1R Description 1655_WF_5x2P_79_BOX_D_P1R_0.Normal Pin Name DTR# DSR# RTS# CTS# Table A.20: CN21(D), CN16(EF), CN23(G): Power-On Switch Part Number 1655302020 Footprint WF_2P_79_BOX_R1_D Description Wafer box 2P 2.0 mm 180D(M) DIP A2001WV2-2P Pin Name PSIN UTC-318 User Manual...
  • Page 49 Table A.21: CN22(D), CN15(E), CN16(FG): Speakers Part Number 1655304020 Footprint WF_4P_79_BOX_R1_D Description Wafer box 4P 2.0 mm 180D(M) with lock A2001WV2-4P Pin Name AUD_OUTA- AUD_OUTA+ AUD_OUTB+ AUD_OUTB- Table A.22: M.2 1(G): M.2 2230 Part Number 1654012663-01 Footprint NGFF_75P_APCI0163-P001A Description NGFF 75P 0.5 mm 90D(F) H = 8.5 mm SMD APCI0163-P001A Pin Name 1,7,33,39,45,51 18,57,63,69,75...
  • Page 50 Table A.23: CN23(D), CN17(EFG): LAN1/LAN2 Part Number 1652003274 Footprint RJ45_28P_RTB-19GB9J1A Description Phone jack RJ45 28P DIP RTB-19GB9J1A UTC-318 User Manual...
  • Page 51 Table A.24: CN19(EF), CN21(G): External USB Part Number 1654010969-01 Footprint USB_9x2P_UEA1112C-8HS6-4F Description USB connector 18P 2.0 mm 90D(F) DIP UEA1112C Pin Name RX_D- RX_D+ TX_D- TX_D+ RX_D- RX_D+ TX_D- TX_D+ UTC-318 User Manual...
  • Page 52 Table A.25: CN20(EF), CN22(G): External USB Part Number 1654010969-01 Footprint USB_9x2P_UEA1112C-8HS6-4F Description USB connector 18P 2.0 mm 90D(F) DIP UEA1112C Pin Name RX_D- RX_D+ TX_D- TX_D+ RX_D- RX_D+ TX_D- TX_D+ UTC-318 User Manual...
  • Page 53 Table A.26: CN24, CN25 (D), CN18(EF), CN20(G): External USB Part Number 1654009513 Footprint USB_8P_UB1112C-8FDE-4F Description USB connector 8P 2.0 mm 90D DIP UB1112C-8FDE-4F Pin Name +5VSB +5VSB UTC-318 User Manual...
  • Page 54 Table A.27: CN26(D): External USB Part Number 1654010199 Footprint USB_13P_UEA1112C-UHS6-4F Description USB connector 2.0+3.0 13P 90D(F) DIP UEA1112C-UHS6-4 Pin Name +5VSB RX_D- RX_D+ TX_D- TX_D+ +5VSB UTC-318 User Manual...
  • Page 55 Table A.28: CN27(D), CN21(E), CN22(F), CN25(G): Line-Out Part Number 1652001586 Footprint KUONYI_PJ-2508PC-5-L Description Phone jack 5P 3.5φ 90D(F) Azalia green DIP without Pb Pin Name OUT_L OUT_R Table A.29: CN28(D), CN22(E), CN21(F), CN24(G): Mic-In Part Number 1652001584 Footprint KUONYI_PJ-2508PA-5-L Description Phone jack 5P 3.5φ...
  • Page 56 Table A.30: CN30(D), CN24(EF), CN27(G): HDMI Part Number 1654011175-01 Footprint HDMI_19P_QJ51191-LFB4-7F Description HDMI connector 19P 0.5 mm 90D(F) SMD QJ51191-LFB4-7F Pin Name HDMI_TX0+ HDMI_TX0- HDMI_TX1+ HDMI_TX1- HDMI_TX2+ HDMI_TX2- HDMI_TX3+ HDMI_TX3- HDMI_CLK HDMI_DAT HDMI_DET UTC-318 User Manual...
  • Page 57 Table A.31: CN31(DG), CN25(EF): DC-In Part Number 1652005624 Footprint PJ_2P_2DC-G213B200 Description DC power jack 2.5 mm 90D(M) DIP 2DC-G213B200 Pin Name DC_IN Table A.32: CN29(D), CN23(EF), CN26(G): RJ11 Part Number 1652005977-02 Footprint S RJ11_6P_RJ1201-66N024R0 Description Phone jack RJ11 6P 6C 90D(F) DIP 6u RJ1201-66N024 Pin Name Drawer_A Drawer_state...
  • Page 58 Table A.33: Power Button Part Number 1600000055 Footprint SW_6P_TC003-N11AABRGXX-RK_D Description Push SW DIP 6P with LED without Pb TC003-N11AABRGXX-RK Pin Name ATX_PWRBTN# ATX_PWRBTN# UTC-318 User Manual...
  • Page 59 UTC-318 User Manual...
  • Page 60 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2019...
