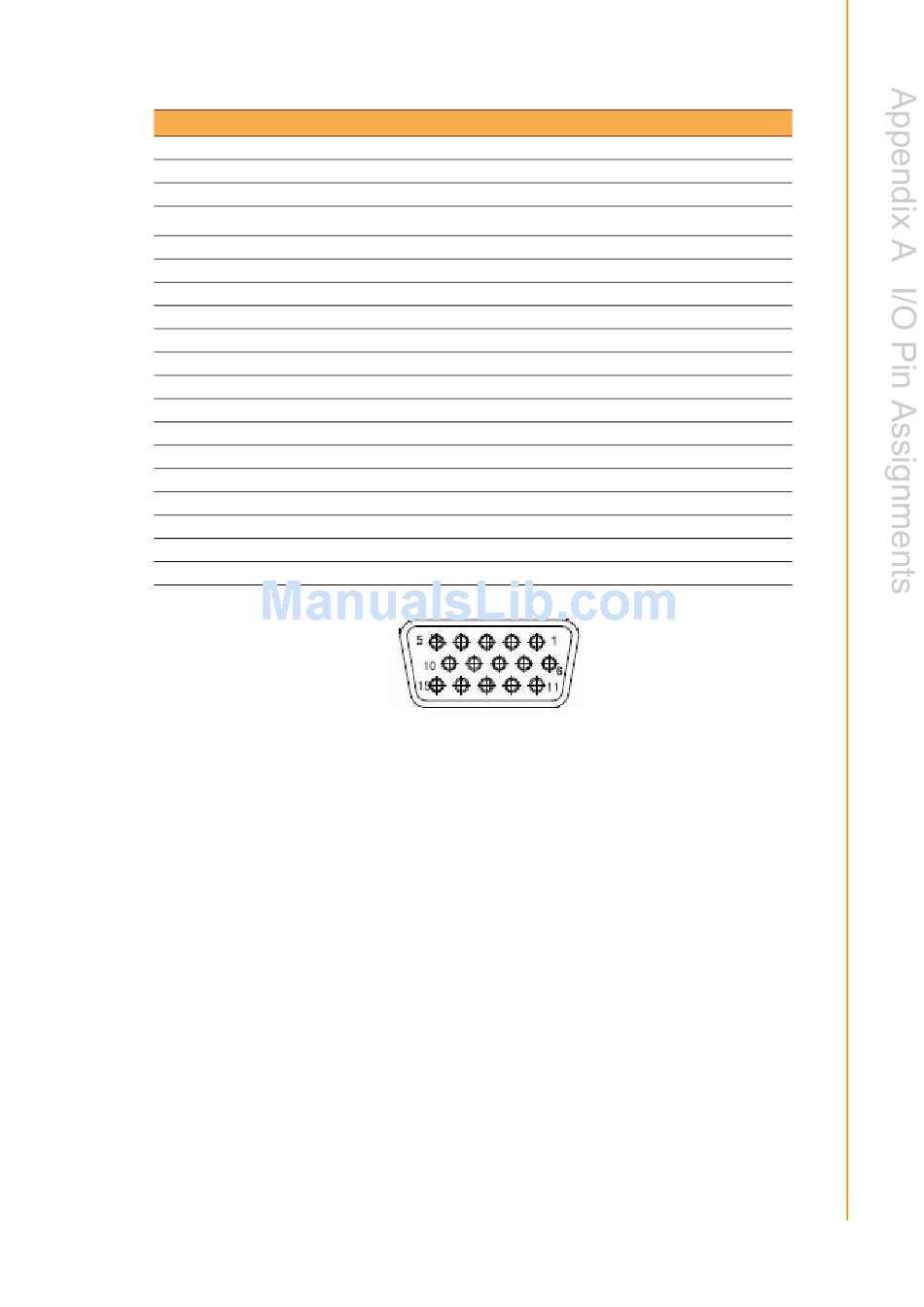

Table A.18: CN27: VGA
Part Number
1654000055
Footprint
DBVGA-VF5MS
Description
D-SUB Conn. 15P 90D(F) DIP 070242FR015S200ZU
Pin
Pin Name
1
RED
2
GREEN
3
BLUE
4
NC
5
GND
6
GND
7
GND
8
GND
9
NC
10
GND
11
NC
12
DDAT
13
HSYNC
14
VSYNC
15
DCLK
39
