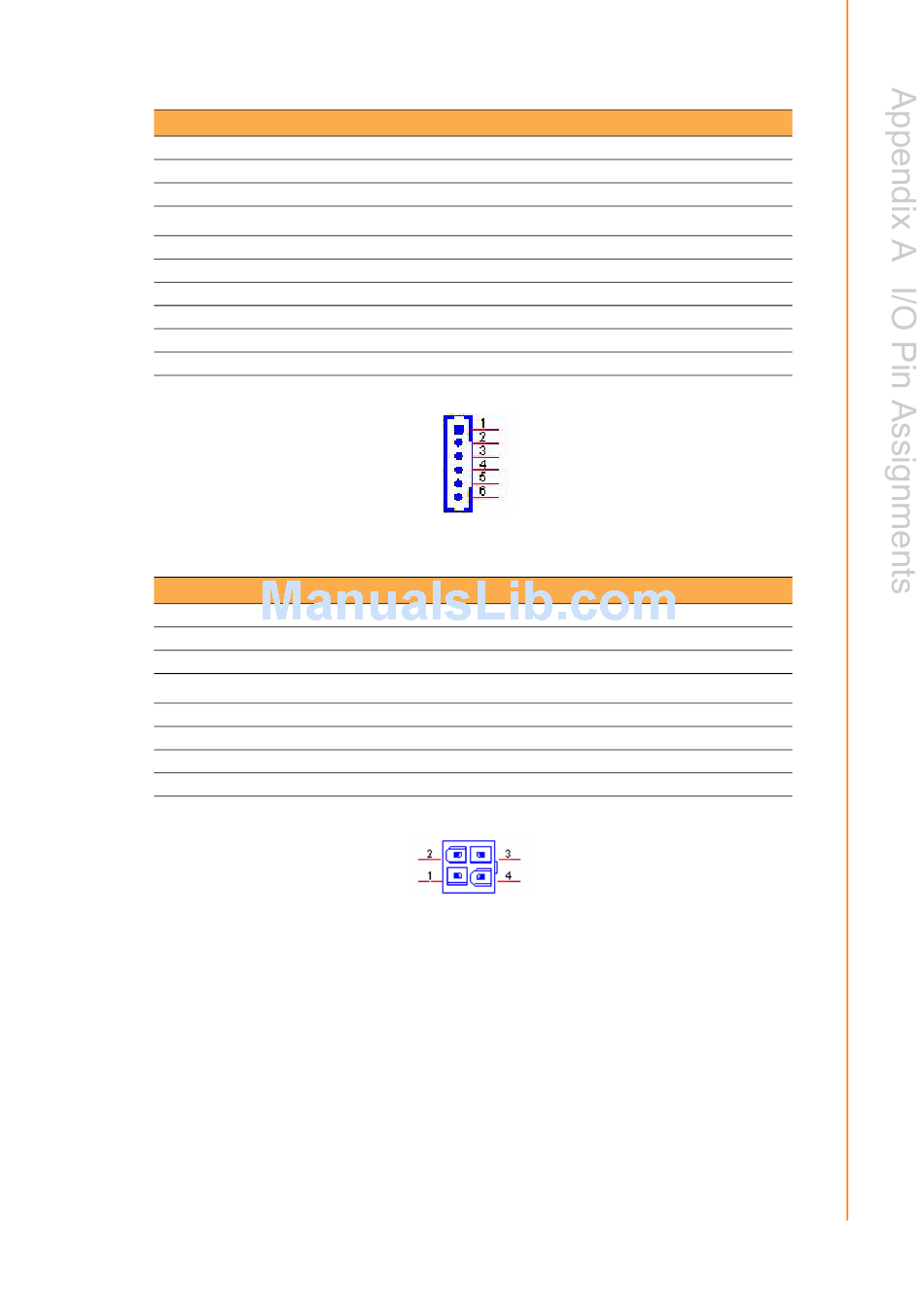

Table A.3: CN5: SATA HDD Power

Part Number 1655306020
Footprint WHL6V-2M
Description WAFER BOX 2.0mm 6P 180D(M) W/LOCK
Pin Pin Name
1 +5V
2 GND
3 NC
4 GND
5 NC
6 NC

Table A.4: CN6: 12 V Power Input

Part Number 1655404090
Footprint ATXCON-2X2-42
Description ATX PWR CONN. 2*2P 180D 4.2mm 24W4310-04S10-01T
Pin Pin Name
1 +12 V
2 +12 V
3 GND
4 GND
31 UTC-515 User Manual
