Tlsb Card Cage - Compaq AlphaServer GS60 Operation Manual

The PSU is located in the upper half of the system cabinet, as viewed from the front.
The PSU storage drawer can house up to six optional SCSI devices, including one
5.25-inch removable media device and five 3.5-inch devices. The 5.25-inch device
and one 3.5-inch device are accessible from the front of the cabinet; the other four 3.5-
inch devices are accessible from the rear of the cabinet.
The TLSB card cage slots are numbered 4 through 8 from right to left in the front of
the cabinet. See Figure 2-6. The card cage contains one KFTIA or KFTHA module,
one CPU module, and one memory module as a minimum configuration. A KFTIA or
KFTHA module is always installed in slot 8.
The blower cools the card cage.

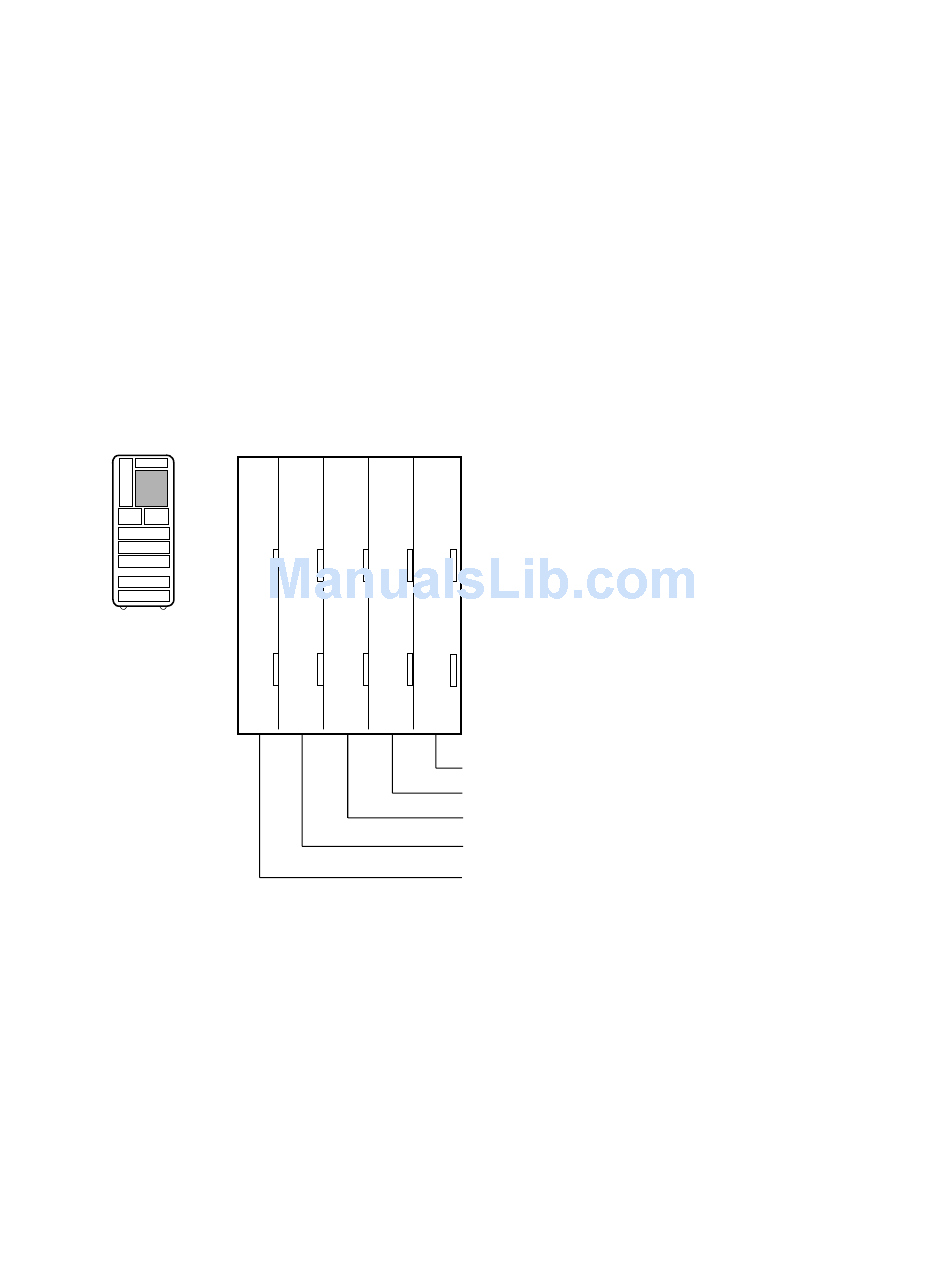

Figure 2-6 TLSB Card Cage
Front
8 7 6 4
5
First CPU
CPUs or Memories
CPUs, Memories, or Third I/O Module
First Memory or Second I/O Module
KFTIA or KFTHA I/O Module
AlphaServer 8200 System
BX-0609B-97
