INSTALLATION

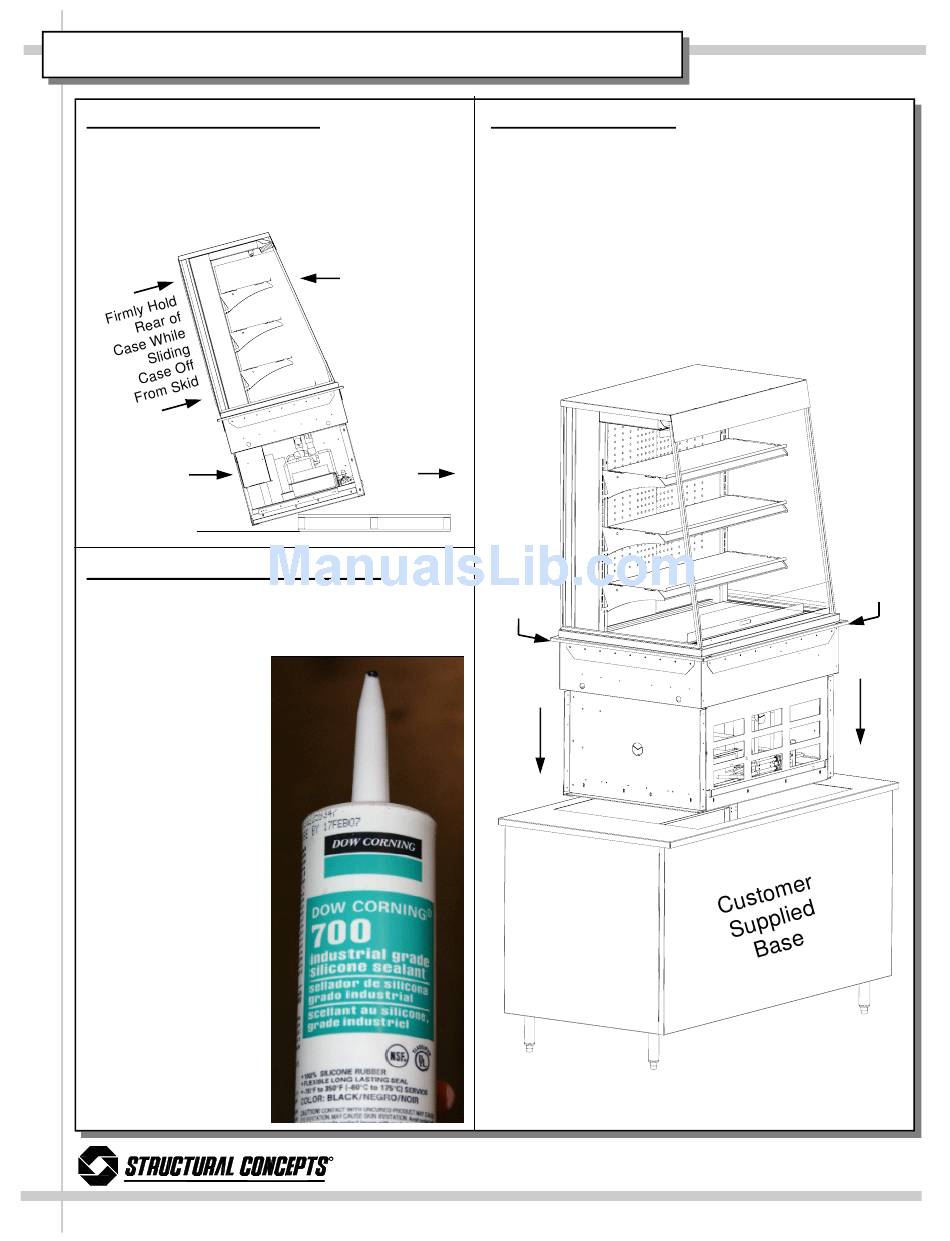

1. Remove Case From Skid
Caution: Case must always remain supported
or center of gravity may allow case to fall. Slide
to rear of skid and tip backward off skid while
maintaining support. See illustration below.
Drop-In
Refrigerated
Section
3. Seal Upper Display Case to Base
•
NSF® Listed Industrial Grade Silicone Seal-
ant is recommended.
•
Clip tip to allow approximately 1/8" to 3/16"
diameter hole.
•
Beginning at case
rear, run a consis-
tent, solid bead of
silicone around
entire perimeter.
2. Display Case Setup
•
•
Upper
•
Display
Case
Slide
Skid
Out
Seal
Along
Here
R
888 Porter Rd. Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 www.structuralconcepts.com
9
SCC® Service Drop-In Refrigerated Merchan-
diser Case consists of two sections: The Upper
Display Case and Drop-In Refrigerated Section.
As both sections make up one conjoined unit, it
is both large and heavy. A team effort is re-
quired for lowering Case into the Customer Sup-
plied Base.
After lowering into Base, adjust into position al-
lowing Case to gingerly rest on Counter Top
without marring.
Seal
Along
Here
