G-SERIES

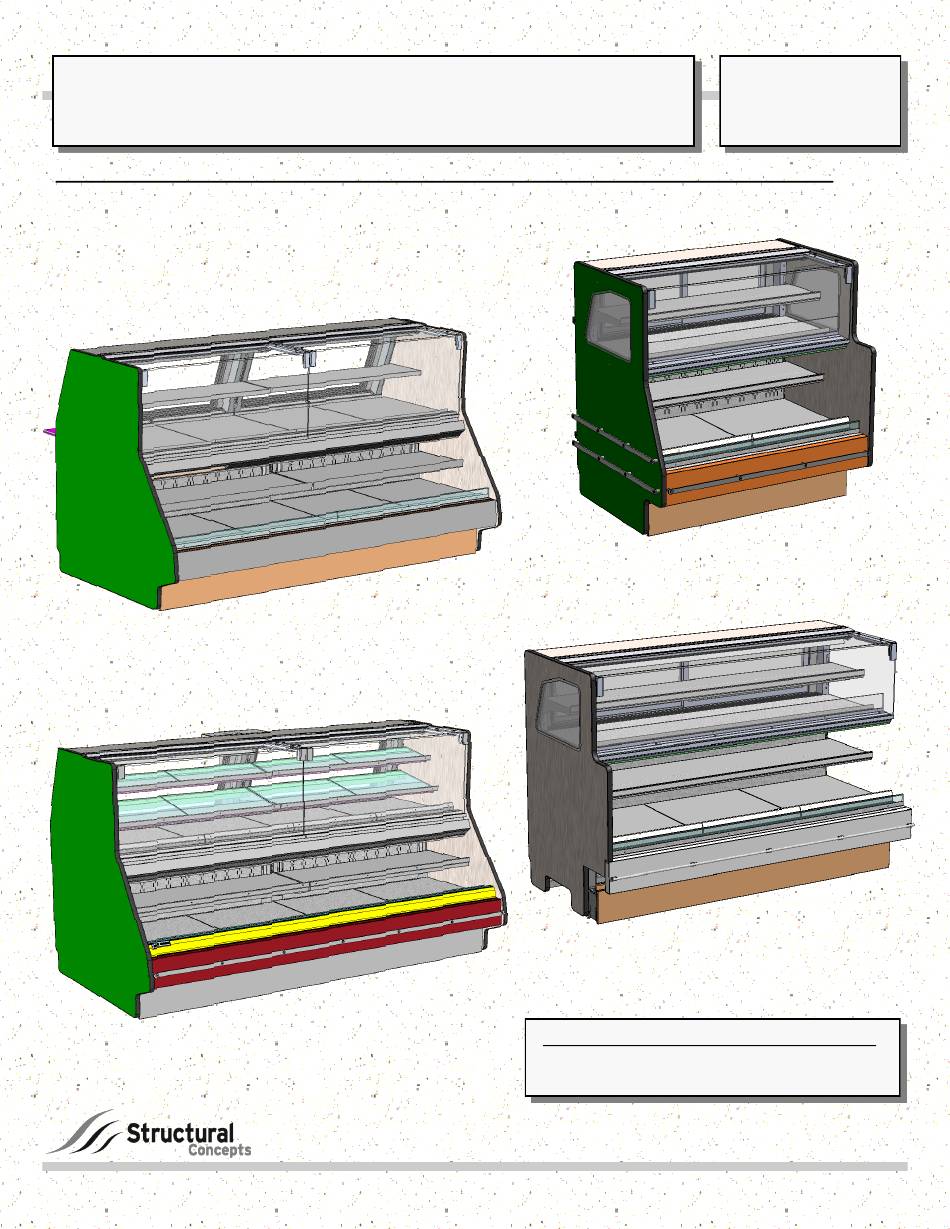

SERVICE UPPER COLD / SELF-SERVICE LOWER COLD COMBINATION DELI MERCHANDISERS:
>> VERTICAL UV-BONDED GLASS UPPER (RAISABLE/HINGED AT CENTER)
>> UPPER SECTION BLOWER COIL SYSTEM (CERTAIN MODELS ONLY)
>> REAR SLIDING/REMOVABLE DOORS
>> REMOTE UNITS
MODEL GCDTV856RLB
(LOWER BASE UNIT WITH VERTICAL
GLASS / UPPER METAL SHELVES)
MODEL GCDTV856RLB.6724A
(LOWER BASE UNIT WITH VERTICAL
GLASS / UPPER GLASS SHELVES /
UPPER SECTION BLOWER COIL SYSTEM)
Oper Manual\G-Series\GCDTV856RLB 6724A GCDV652RLB GCDV452RLB-S GCDV652RLB-S 7540 21-08630.pub
READ AND SAVE THESE INSTRUCTIONS
INSTALLATION AND
OPERATING MANUAL
* This manual may be applicable to additional models not listed herein.
Structural Concepts Corporation ∙ 888 E. Porter Road ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 ∙ www.structuralconcepts.com
MODEL GCDV452RLB-S.7540
(LOWER BASE UNIT WITH VERTICAL
GLASS / UPPER METAL SHELVES)
MODEL GCDV652RLB-S.7540
(LOWER BASE UNIT WITH VERTICAL
GLASS / UPPER GLASS SHELVES)
Models Represented By This Operating Manual*:
GCDV452RLB-S.7540 GCDV652RLB-S.7540
GCDTV856RLB GCDTV856RLB.6724A
PART NO.
21-08630
Rev A Date: 5.7.2019
