Structural Concepts Oasis CO35R User Manual

Hide thumbs Also See for Oasis CO35R:

Advertisement

Quick Links

Oasis

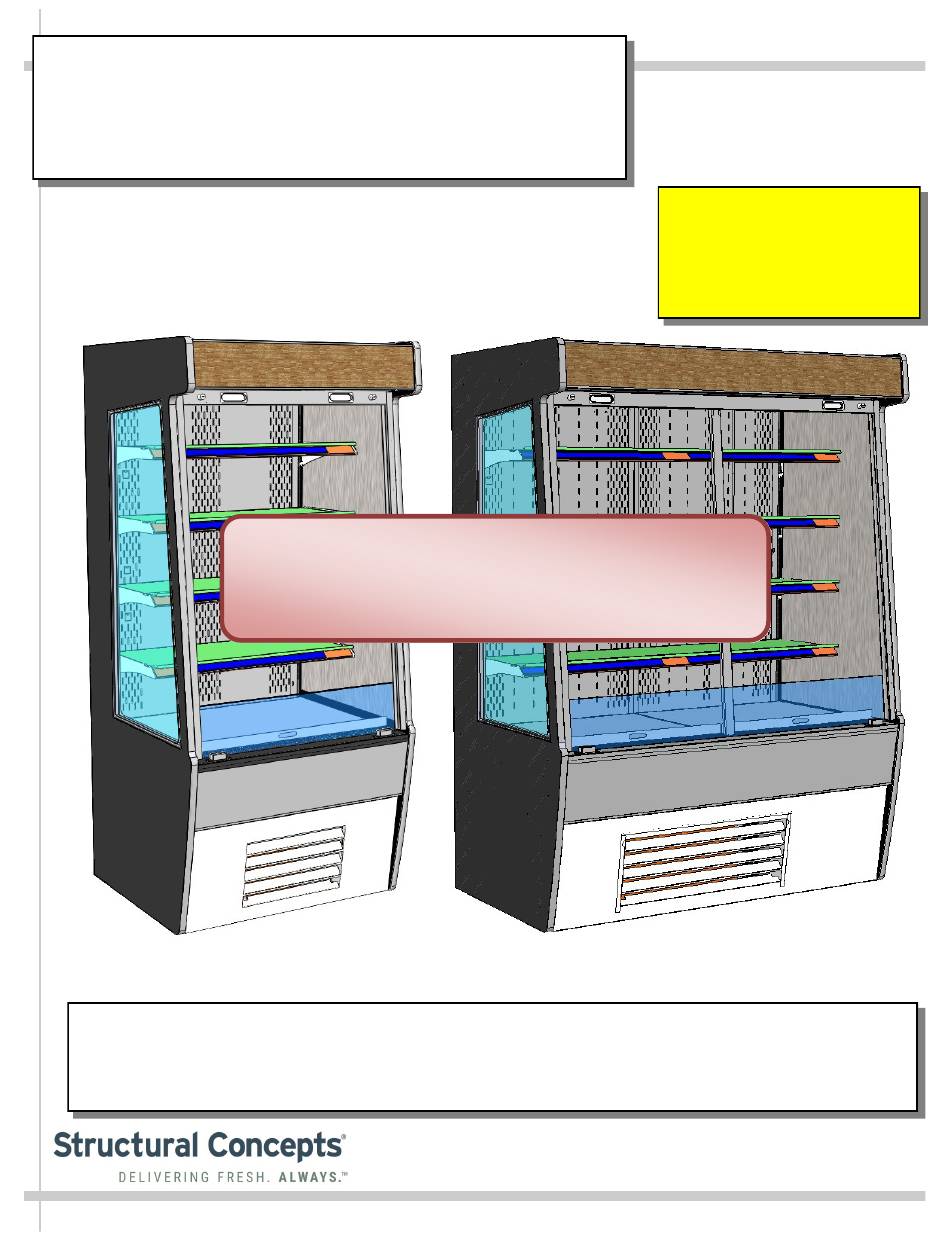

MOBILE REFRIGERATED SELF-SERVICE MERCHANDISER
> ROLL-DOWN SECURITY DOORS ARE OPTIONAL ON ALL UNITS
> BREEZE-E WITH ENERGYWISE IS STANDARD ON ALL UNITS
> REAR PLENUM DOORS ARE OPTIONAL ON ALL UNITS
Model CO37R Shown With Optional Roll-Down
Security Door (Similar Design to Models CO35R,
CO45R and CO47R)
MODEL CO35R.........36 1/4"L* x 33 1/4"D x 61 1/4"H^
MODEL CO45R.........47 1/4"L* x 33 1/4"D x 61 1/4"H^
MODEL CO55R.........59 1/4"L* x 33 1/4"D x 61 1/4"H^
MODEL CO65R.........71 1/4"L* x 33 1/4"D x 61 1/4"H^
*Includes End Panels.
USER MANUALS\20-13644_OASIS_USER MANUAL_COXXR_REF_SELF-SVC_MOBILE CASE
READ AND SAVE THESE INSTRUCTIONS
USER
®
MANUAL
DISCONTINUED
^With Levelers Extended 1 1/4" From Base Frame
Structural
Concepts Corp. ∙ 888 E. Porter Rd ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 ∙ www.structuralconcepts.com
Model CO57R Shown With Optional Roll-Down
Security Door (Similar Design to Models CO55R,
CO65R and CO67R)
MODEL CO37R.........36 1/4"L* x 33 1/4"D x 81"H^
|||||||||
MODEL CO47R.........47 1/4"L* x 33 1/4"D x 81"H^
|||||||||
MODEL CO57R.........59 1/4"L* x 33 1/4"D x 81"H^
|||||||||
MODEL CO67R.........71 1/4"L* x 33 1/4"D x 81"H^
SCC
P/N 20-13644
Important! If Adjoining Cases,
See Synchronous Defrost
Connection Instructions On
Page 7 AND Adjoinment
Instructions on Page 8
In This Manual.
REV Q DATE: 6/20/2023
