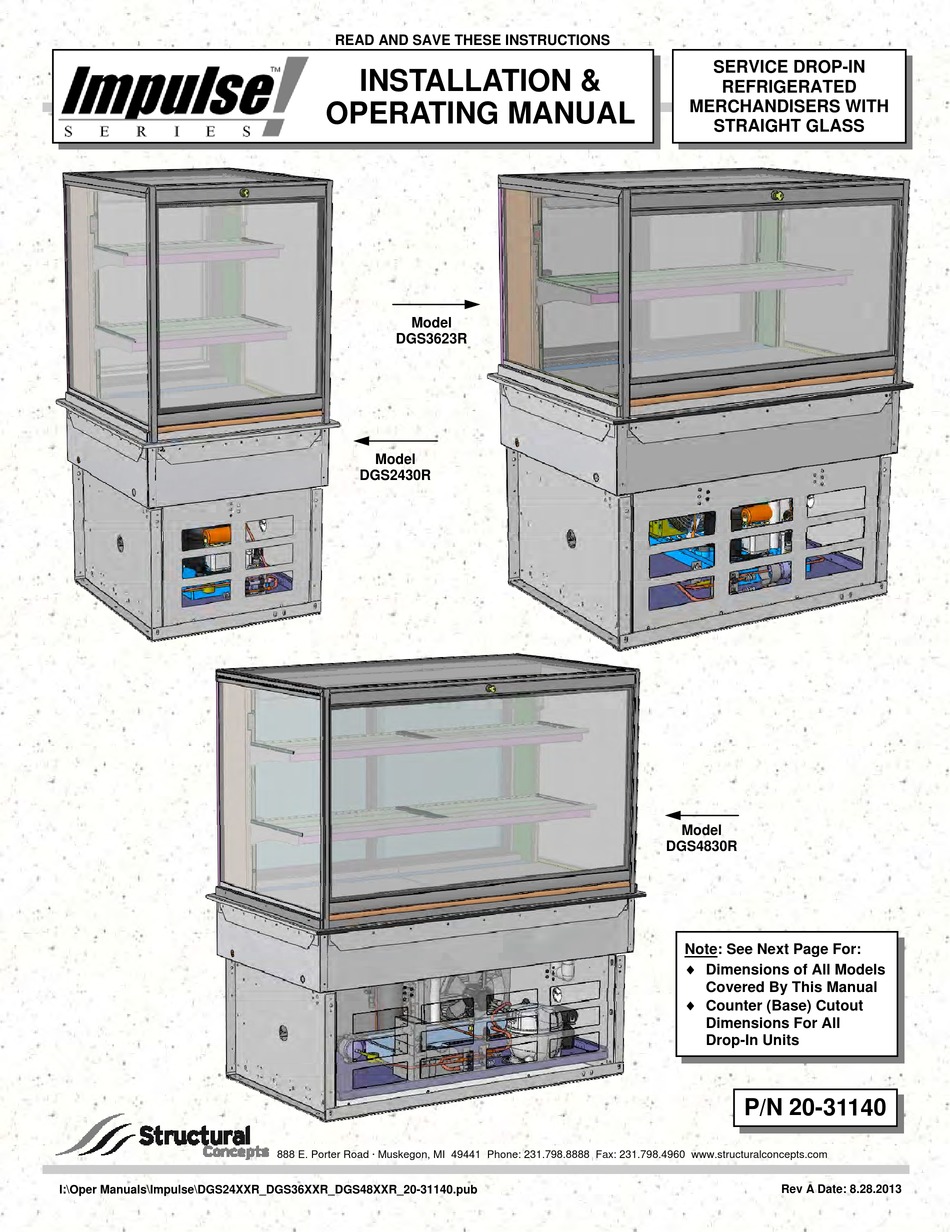

READ AND SAVE THESE INSTRUCTIONS
INSTALLATION &
OPERATING MANUAL
Model
DGS3623R
Model
DGS2430R
888 E. Porter Road · Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 www.structuralconcepts.com
SERVICE DROP-IN
REFRIGERATED
MERCHANDISERS WITH
STRAIGHT GLASS
Model
DGS4830R
Note: See Next Page For:

Dimensions of All Models
Covered By This Manual

Counter (Base) Cutout
Dimensions For All
Drop-In Units
P/N 20-31140
Rev A Date: 8.28.2013
