Structural Concepts DO3623R Installation And Operating Manual page 12

MAINTENANCE FUNDAMENTALS, CONTINUED
Warning, disconnect power before provid-
ing maintenance and service to unit. As-
sembly or disassembly and servicing to be
accomplished by licensed electrical con-
tractor.

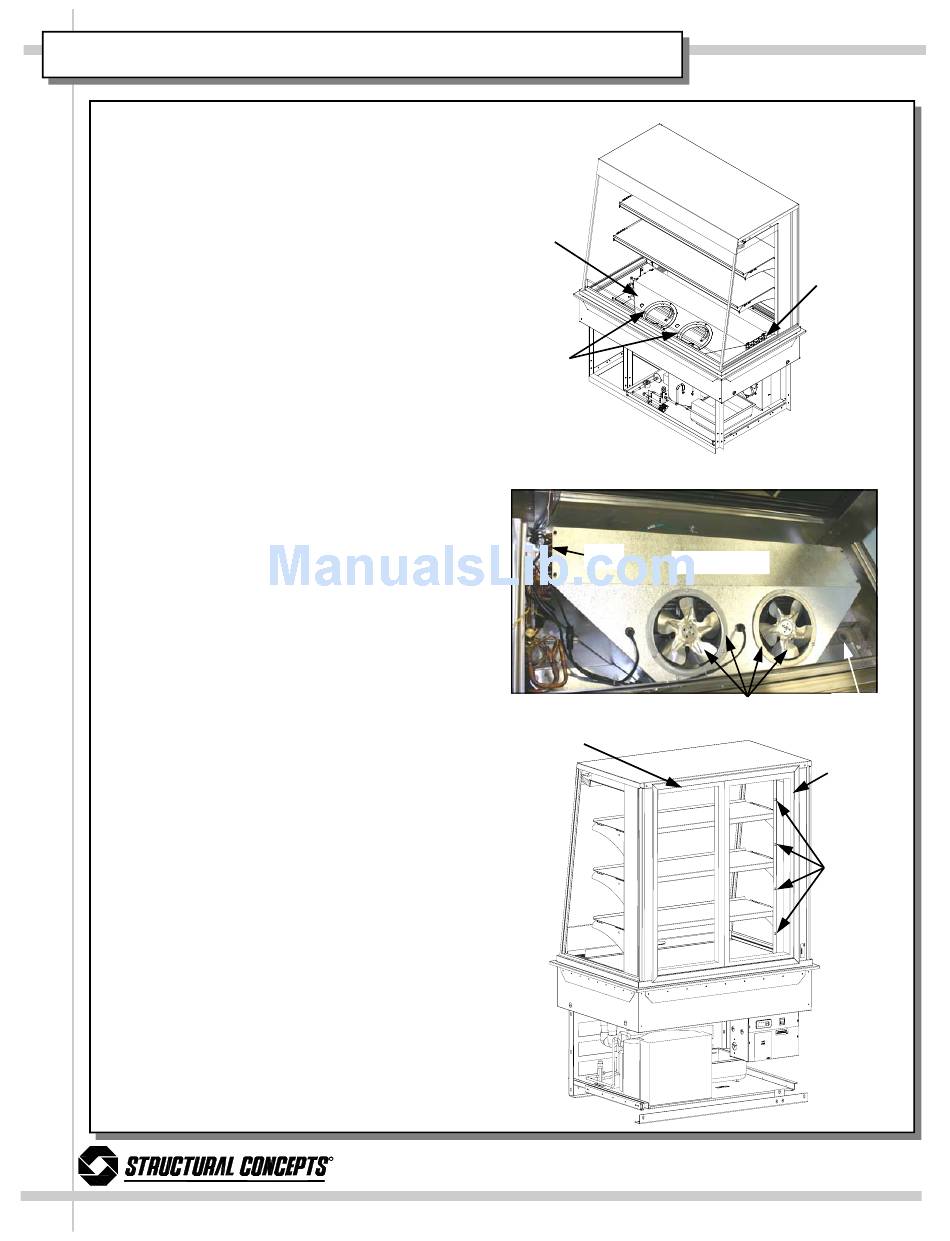

Evaporator Coil Fans Access and Removal
•
Fans may be accessed by removing Deck
(covering Fan Shroud, Fan Housing and
Coil). See illustrations at right.
Light Ballast Access
Light ballast is located inside the Electrical J-
Box. Electrical J-Box is located at lower-right
side (from the rear) of the Drop-In Refrigerated
Section. See below right illustration for general
location.
Electrical J-Box is assembled with Phillips
screws. To disassemble, simply use Phillips
screwdriver to remove screws.
Removing Rear Doors and Perforated
Acrylic Plenum.
•
Note: Doors are not interchangeable.
•
There is an Outer and Inner Door. The
Outer door is the right hand door (from
case rear). It can be identified by a stop
located at the lower right hand corner to the
inside of the case.
•
The Inner Door is the left hand door (from
case rear).
•
See next page for specifics on access to
and removal of thumbscrews, doors and
perforated acrylic plenum.
Shroud
Inner Door
R
888 Porter Rd. Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 www.structuralconcepts.com
12
Fan
Fan
Housing
Coil
Fan Shroud
Coil
Drain
Fan & Housing
Outer
Door
Thumb-
screws
holding
Sliding
Doors to
Acrylic
Plenum
