INSTALLATION

Installation
Note: Units shown may not depict an exact
representation of your particular unit being
installed.

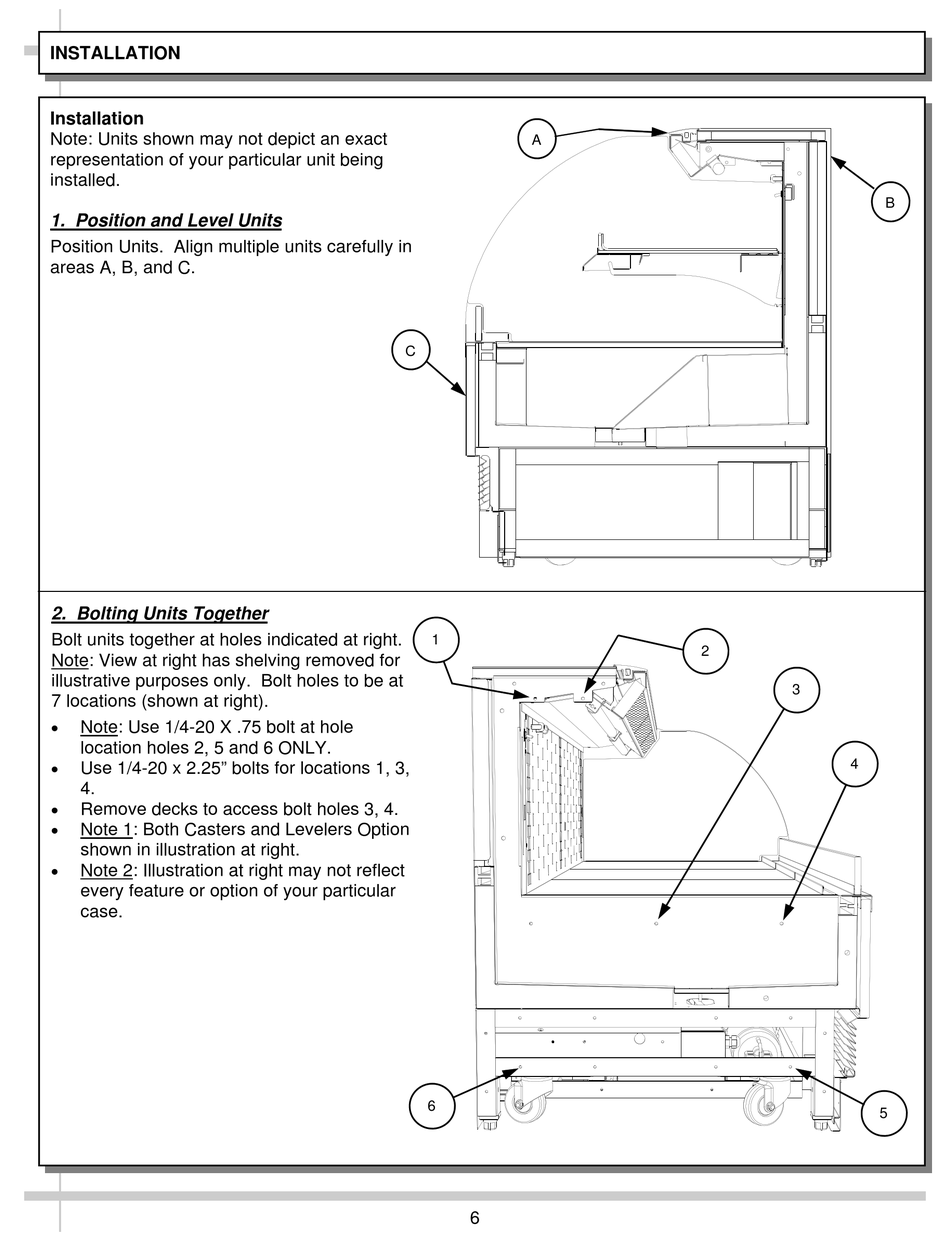

1. Position and Level Units
Position Units. Align multiple units carefully in
areas A, B, and C.
2. Bolting Units Together
Bolt units together at holes indicated at right.
Note: View at right has shelving removed for
illustrative purposes only. Bolt holes to be at
7 locations (shown at right).

Note: Use 1/4-20 X .75 bolt at hole
location holes 2, 5 and 6 ONLY.

Use 1/4-20 x 2.25" bolts for locations 1, 3,
4.

Remove decks to access bolt holes 3, 4.

Note 1: Both Casters and Levelers Option
shown in illustration at right.

Note 2: Illustration at right may not reflect
every feature or option of your particular
case.
A
C
1
6
6
2
3
4
5
B
