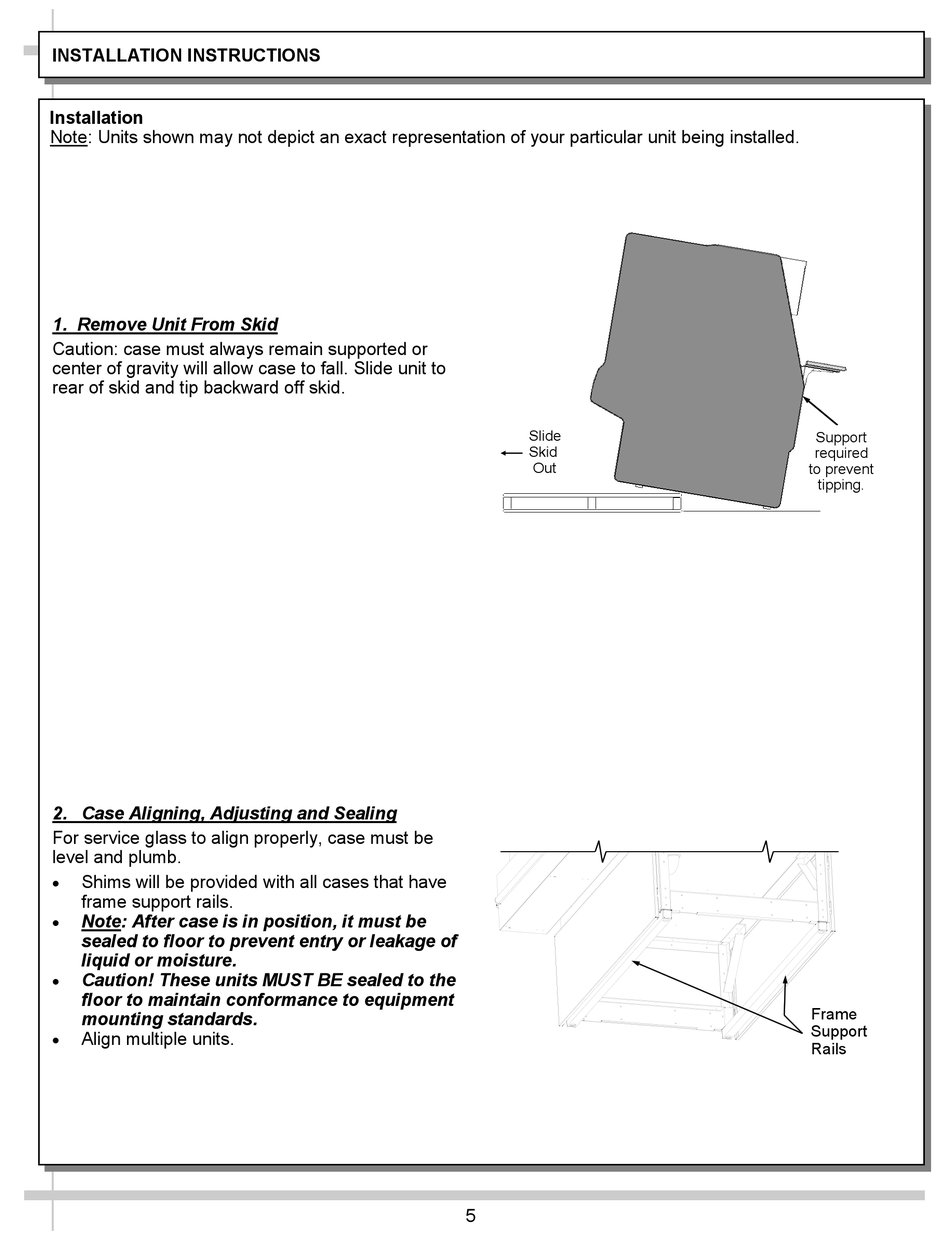

INSTALLATION INSTRUCTIONS

Installation
Note: Units shown may not depict an exact representation of your particular unit being installed.
1. Remove Unit From Skid
Caution: case must always remain supported or
center of gravity will allow case to fall. Slide unit to
rear of skid and tip backward off skid.
2. Case Aligning, Adjusting and Sealing
For service glass to align properly, case must be
level and plumb.
 Shims will be provided with all cases that have
frame support rails.
 Note: After case is in position, it must be
sealed to floor to prevent entry or leakage of
liquid or moisture.
 Caution! These units MUST BE sealed to the
floor to maintain conformance to equipment
mounting standards.
 Align multiple units.
Slide
Skid
Out
5
Support
required
to prevent
tipping.
Frame
Support
Rails
