Structural Concepts Oasis MOT4048RSS.5197 Installation & Operating Manual

Multi-purpose self-service refrigerated island merchandiser
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
M O B I L E S E R I E S

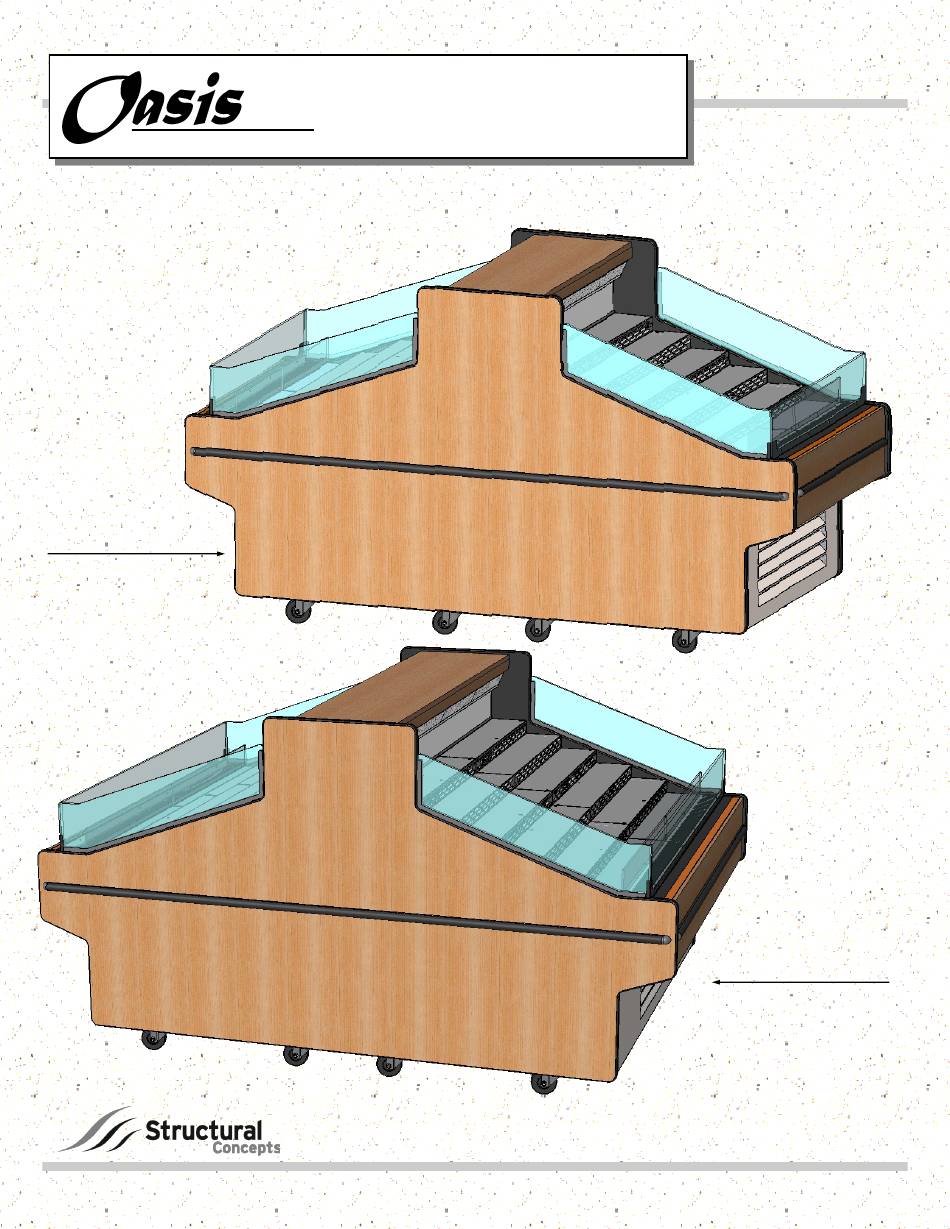

MULTI-PURPOSE SELF-SERVICE REFRIGERATED ISLAND MERCHANDISER
Model
MOT4048RSS.5197
Operating Manuals\Oasis\MOT4048RSS-5197_MOT6048RSS.5197_20-09455.pub
READ AND SAVE THESE INSTRUCTIONS
INSTALLATION &
OPERATING MANUAL
888 E. Porter Road ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 www.structuralconcepts.com
P/N 20-09455
Model
MOT6048RSS.5197
Rev C Date: 10.1.2017
