MAINTENANCE FUNDAMENTALS, CONTINUED
Removing the Rear Doors
•
Remove Thumbscrews (4 each side).
Thumbscrew removal will allow Rear
Doors to be removed.
•
See illustration on this page for locations
of Thumbscrews, Nuts, Perforated
Acrylic Plenum, etc.
•
Move the doors toward the center of the
case.
•
Starting with the Outer Door (right hand
door from rear of the case), individually
lift each door up toward top of the case
and pivot the bottom of door out.
•
Rear Doors (both Outer and Inner) must
be replaced in the same manner in which
they are removed.
Removing Perforated Acrylic Plenum
•
After Outer and Inner Doors are re-
moved, the Perforated Acrylic Plenum
pieces can now be removed.
•
Slide the Plenum toward the center of
the case.
•
Starting with the right hand Plenum, lift
up toward the top of the case and pivot
the bottom Plenum out.
•
Perforated Acrylic Plenum pieces must
be replaced in the same manner in which
they are removed.
Shelving

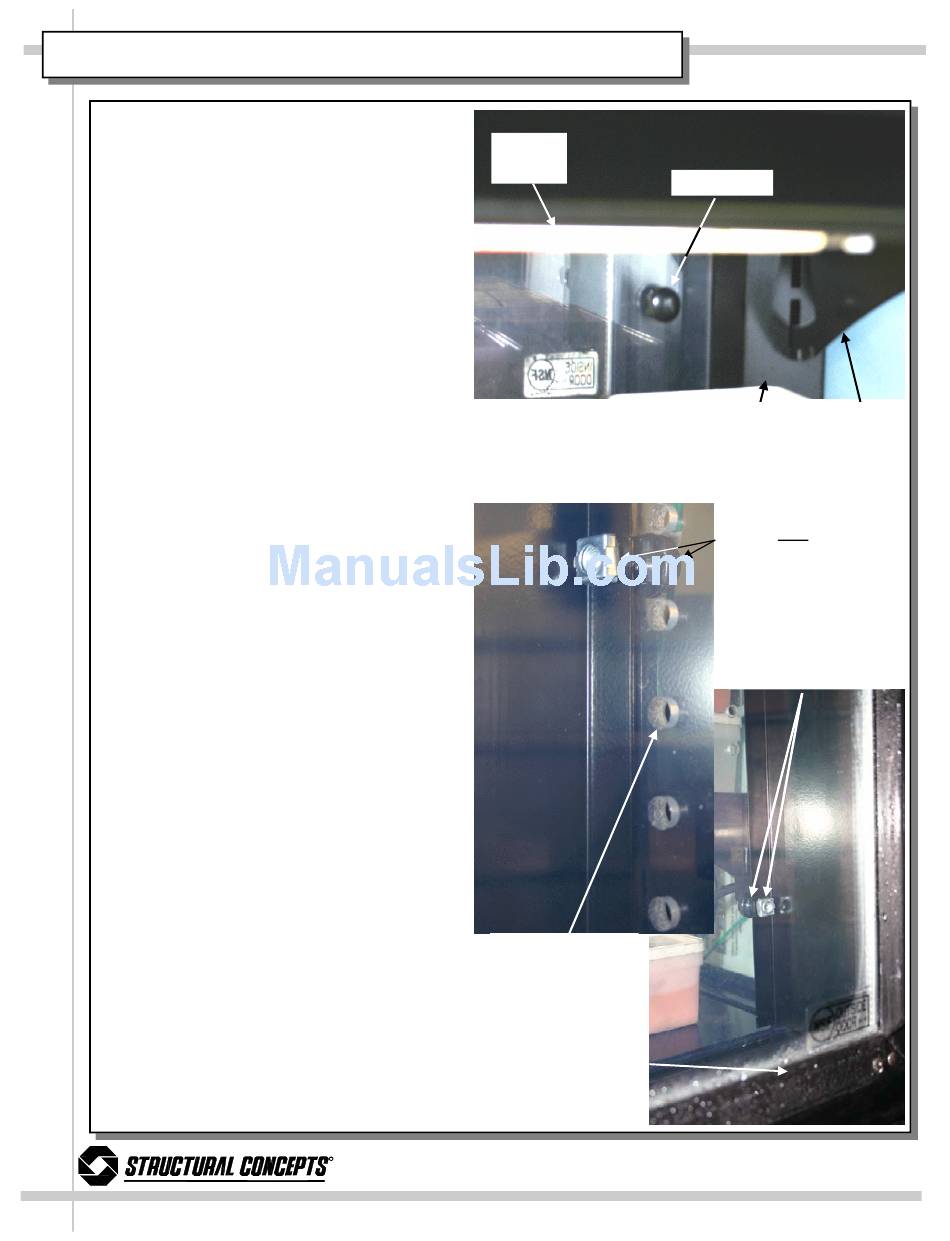

View of thumbscrew
(4 each side) to be removed.
View of Perforated
R
888 Porter Rd. Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 www.structuralconcepts.com
13
Lamp
Thumbscrew
Acrylic Plenum
View of Rear
Outer Door
Upright Shelving
Bracket
View of Thumbscrew
and Nut from Case
Rear. Note: Thumb-
screws are only acces-
sible from front of case.
Additional view of
Thumbscrew and Nut
from Case Rear.
