READ AND SAVE THESE INSTRUCTIONS
INSTALLATION &
OPERATING MANUAL
PN 20-45803
M O B I L E S E R I E S
SELF-SERVICE REFRIGERATED CASES (BOTH SELF-CONTAINED and REMOTE)
>> DESIGNED FOR BERRY MERCHANDISING

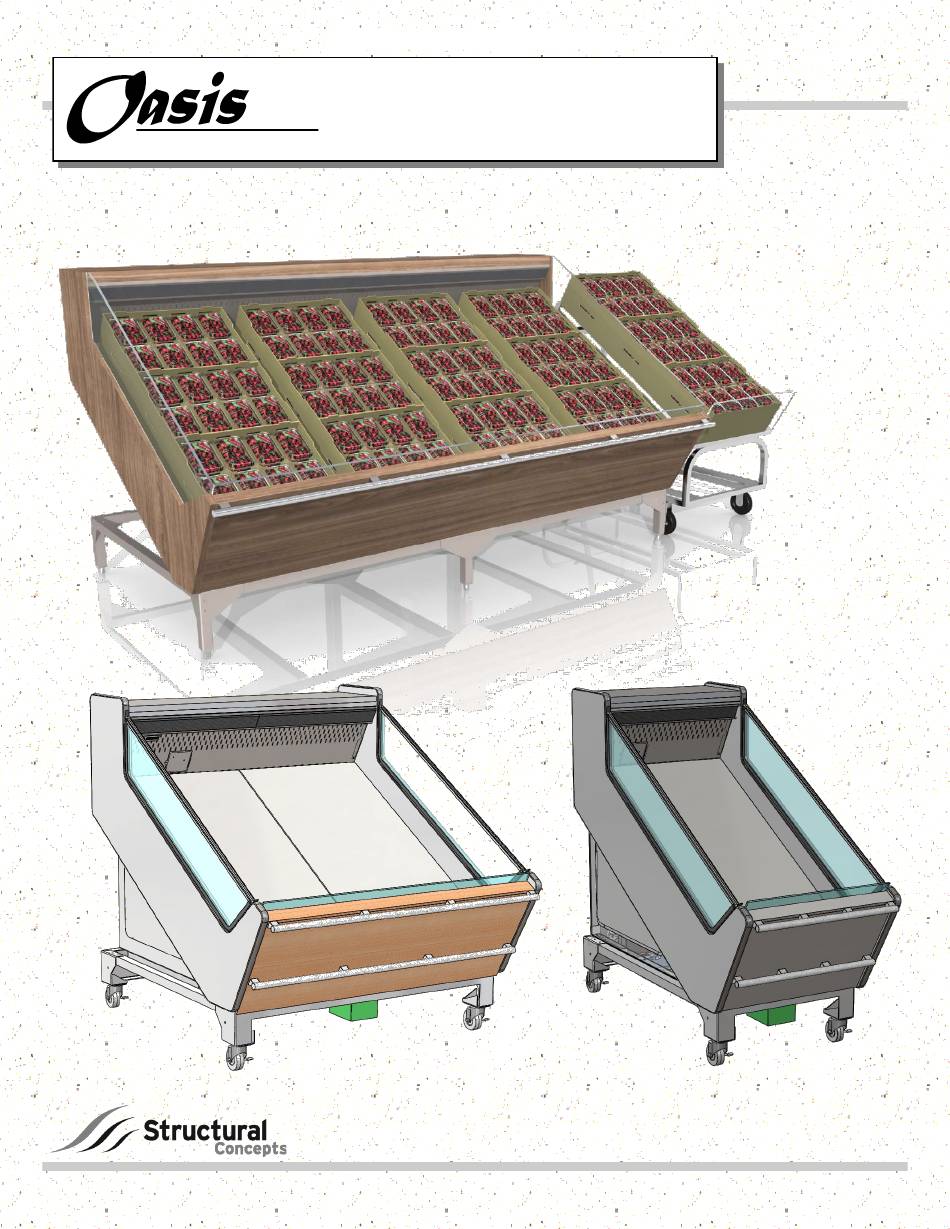

>> MODEL FSIB8R.6031, FSIB4R.6031A and FSIB2R.6031B
Separate Produce Unit Shown
Above-Right (On Casters) For
Illustrative Purposes Only
Model FSIB8R.6031 Shown Above
With Optional Product Crates
Model FSIB4R.6031A
Model FSIB2R.6031B
888 E. Porter Road ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 www.structuralconcepts.com
Operating Manuals\Oasis\Oasis FSIBX_FSIB8R-6031_FSIB4R.6031A_FSIB2R-6031B_Refrig_Berry_Case_20-45803.pub
Rev D Date: 8.14.2019
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Structural Concepts Oasis Series
Summary of Contents for Structural Concepts Oasis Series
- Page 1 READ AND SAVE THESE INSTRUCTIONS INSTALLATION & OPERATING MANUAL PN 20-45803 M O B I L E S E R I E S SELF-SERVICE REFRIGERATED CASES (BOTH SELF-CONTAINED and REMOTE) >> DESIGNED FOR BERRY MERCHANDISING >> MODEL FSIB8R.6031, FSIB4R.6031A and FSIB2R.6031B Separate Produce Unit Shown Above-Right (On Casters) For Illustrative Purposes Only...
-
Page 2: Table Of Contents
TABLE OF CONTENTS OVERVIEW / TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING / CORDS / PLUGS. SHIPPING BRACKETS / CASE REMOVAL FROM SKID - REMOTE UNITS ..………………………..SHIPPING BRACKETS / CASE REMOVAL FROM SKID - SELF-CONTAINED UNITS ……………... POSITIONING &... -
Page 3: Overview / Type / Compliance / Warnings / Precautions / Wiring / Cords / Plugs
OVERVIEW / TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING / PLUGS - PAGE 1 of 2 temperature does not exceed 75 °F (24 °C) and 55% OVERVIEW maximum humidity. These Structural Concepts merchandisers are designed to merchandise packaged products at 41 °F COMPLIANCE (5 °C) or less product temperatures. ... - Page 4 Each case has its own wiring diagram folded and in its 95374. own packet. This disclosure statement has been reviewed and approved by Structural Concepts and Structural Concepts attests, under penalty of perjury, that these statements are true and accurate. CAUTION! DO NOT RELY ON THERMOMETERS OR THERMOSTATS FOR ACTUAL PRODUCT (FOOD) TEMPERATURES.
-
Page 5: Shipping Brackets / Case Removal From Skid - Remote Units
SHIPPING BRACKETS / CASE REMOVAL FROM SKID - REMOTE UNITS 1. Removing Case Shipping Brackets That Are Attached To Skid Various Types Of Remove screws holding case shipping brackets to Shipping Brackets skid. Shown With Remove case shipping brackets from skid. ... -
Page 6: Shipping Brackets / Case Removal From Skid - Self-Contained Units
SHIPPING BRACKETS / CASE REMOVAL FROM SKID - SELF-CONTAINED UNITS 1. Removing Case Shipping Brackets That Are Attached To Skid Various Types Of Remove screws holding case shipping brackets to skid. Shipping Brackets Remove case shipping brackets from skid. Shown With ... -
Page 7: Positioning & Aligning / Adjusting Levelers / Locking Casters In Place
POSITIONING & ALIGNING / ADJUSTING LEVELERS / LOCKING CASTERS IN PLACE 1. Position & Align Case Alongside Others To unlock casters (from the locked position), press down on the RAISED caster lever (as Before adjusting levelers, make certain that the shown in illustration below). -
Page 8: Merchandiser Start-Up / Thermometer / Discharge Air Probes
START-UP / THERMOMETER / DISCHARGE AIR PROBES 1. Start-Up 3. Discharge Air Probes When case is properly field wired, it will start Remove cover to access discharge air probes. operating. General illustration of similar model shown below. ... -
Page 9: Honeycomb Air Diffuser / Air Return Duct / Refrigerated Airflow Path
HONEYCOMB AIR DIFFUSER / AIR RETURN DUCT / REFRIGERATED AIRFLOW PATH 1. Honeycomb Air Diffuser 3. Refrigerated Airflow Path Honeycomb air diffuser must remain Refrigerated airflow from honeycomb air diffuser unobstructed at all times. to air return duct passes over product. ... -
Page 10: Evaporator Area: Deck Pan Removal / Refrig. Components For Fsib8R.6031
EVAPORATOR AREA: DECK PAN REMOVAL / REFRIGERANT COMPONENTS FOR FSIB8R.6031 ONLY Caution! Hazardous moving parts. 1. Deck Pan Removal Authorized service personnel ONLY should Illustration below shows merchandiser after deck access this area. pans have been removed. Do not operate unit with covers removed. -
Page 11: Evaporator Area: Deck Pan Removal / Refrig. Components For Fsib2R.6031B
EVAPORATOR AREA: DECK PAN REMOVAL / REFRIG. COMPONENTS FOR FSIB2R.6031B ONLY Caution! Hazardous moving parts. 1. Deck Pan Removal Authorized service personnel ONLY should Illustration below shows merchandiser after deck access this area. pan has been removed. Do not operate unit with covers removed. -
Page 12: Electrical Layout: Model Fsib8R.6031 Remote & Self-Contained Units
ELECTRICAL LAYOUT: MODEL FSIB8R.6031 REMOTE & SELF-CONTAINED UNITS Caution! Authorized service personnel ONLY should access this area. Field Access Box Illustration below shows field access box for both remote and self-contained units. Caution! Authorized service personnel ONLY should access this area. Main Power Thermostat Switch... -
Page 13: Electrical Layout: Model Fsib4R.6031A Self-Contained Units Only
ELECTRICAL LAYOUT: MODEL FSIB4R.6031A SELF-CONTAINED UNITS ONLY Caution! Authorized service personnel ONLY should access this area. Self-Service Access Box Illustration below shows field access box for both remote and self-contained units. Caution! Authorized service personnel ONLY should access this area. Main Power Thermostat Switch... -
Page 14: Electrical Layout: Model Fsib2R.6031B Self-Contained Units Only
ELECTRICAL LAYOUT: MODEL FSIB2R.6031B SELF-CONTAINED UNITS ONLY Caution! Authorized service personnel ONLY should access this area. Self-Service Access Box Illustration below shows field access box for both remote and self-contained units. Caution! Authorized service personnel ONLY should access this area. Main Power Switch Thermostat... -
Page 15: Condenser Package Layout: Model Fsib8R.6031 Self-Contained Units Only
CONDENSER PACKAGE LAYOUT: MODEL FSIB8R.6031 SELF-CONTAINED UNITS ONLY Refrigeration Package Layout Note: Due to design variables, refrigeration package component layout can vary in location. Illustration below may not reflect every feature or option of your particular case. Compressor Condenser Coil Electrical Box Condenser Coil Fan,... -
Page 16: Condenser Package Layout: Model Fsib4R.6031A Self-Contained Units Only
CONDENSER PACKAGE LAYOUT: MODEL FSIB4R.6031A SELF-CONTAINED UNITS ONLY Refrigeration Package Layout Note: Due to design variables, refrigeration package component layout can vary in location. Illustration below may not reflect every feature or option of your particular case. Compressor Condenser Coil Electrical Box Compressor... -
Page 17: Condenser Package Layout: Model Fsib2R.6031B Self-Contained Units Only
CONDENSER PACKAGE LAYOUT: MODEL FSIB2R.6031B SELF-CONTAINED UNITS ONLY Refrigeration Package Layout Note: Due to design variables, refrigeration package component layout can vary in location. Illustration below may not reflect every feature or option of your particular case. Condenser Coil Fan, Fan Housing &... -
Page 18: General Cleaning Schedule - To Be Performed By Store Personnel (Exterior)
GENERAL CLEANING SCHEDULE - TO BE PERFORMED BY STORE PERSONNEL (EXTERIOR) FREQ. INSTRUCTIONS Daily Acrylic: Acrylic sneeze guard must be cleaned with a mild soap and water solution and a soft cloth. Caution! Never use ammonia-based cleaners on acrylic. Incorrect cleaning agents or abrasive cleaning cloths cause surface to ‘cloud’... -
Page 19: General Cleaning Schedule - To Be Performed By Store Personnel (Interior)
GENERAL CLEANING SCHEDULE - TO BE PERFORMED BY STORE PERSONNEL (INTERIOR) FREQ. INSTRUCTIONS Weekly Decks: Clean with a warm soap and water solution and soft cloth. If necessary, entirely remove from case, and submersed in warm, soapy water. Use soft-bristled brush to remove food particles, dust, grease or grime. -
Page 20: General Cleaning Schedule - To Be Performed By Trained Service Providers Only
GENERAL CLEANING SCHEDULE - TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY FREQ. INSTRUCTIONS Weekly Drains: Keep drains clean and free of debris which could clog the drain and rob the case of needed refrigeration. After removing decks, vacuum tub under deck or flush with water if necessary. -
Page 21: General Cleaning Schedule - Honeycomb Air Diffusers - To Be Performed By Trained Service Technicians Only
GENERAL CLEANING SCHEDULE - HONEYCOMB AIR DIFFUSERS (SERVICE TECHNICIANS ONLY) 1. Honeycomb Air Diffuser Removal Use brush to dislodge stubborn or sticky residue. Dry by using vacuum’s blow mode (vs. suction mode). Honeycomb air diffuser cleaning is to be 2. -
Page 22: Troubleshooting (To Be Performed By Trained Service Providers Only)
Slide condensate package out from under unit. After refrigeration system has been carefully slid out, replace wicking material with new. If wicking material is not available, contact Structural Concepts. See toll-free number at last page of this operating manual. ... - Page 23 TROUBLESHOOTING - TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY, CONTINUED CONDITION TROUBLESHOOTING Fan Emits Loud Check that the case is aligned, level and plumb. Noise Check evaporator fans for cleanliness. Unplug/power off fan motors. Check motor shaft for bearing wear. Check that fan motors are securely mounted in brackets.
-
Page 24: Troubleshooting (To Be Performed By Trained Service Providers Only)
TROUBLESHOOTING - TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY, CONTINUED CONDITION TROUBLESHOOTING Digital Control Display Is Check that the MAIN power switch is on (self-contained units only). Blank Check the circuit breaker box for tripped circuits. System Is Not Operating Check that the utility power is on. Check that the MAIN power switch is on (self-contained units only). -
Page 25: Troubleshooting - Condensing System ( By Trained Service Providers Only)
TROUBLESHOOTING - CONDENSING SYSTEM ( BY TRAINED SERVICE PROVIDERS ONLY) CONDITION TROUBLESHOOTING Head Pressure Too High Check that the condensing coil is not dirty or covered. Check that condensing fans are working. Check that refrigerant is not overcharged. Perform sub-cooling check and verify that no contaminates are in system. Check that liquid line filter dryer is not plugged. -
Page 26: Troubleshooting - Evaporator System (By Trained Service Providers Only)
TROUBLESHOOTING - EVAPORATOR SYSTEM (BY TRAINED SERVICE PROVIDERS ONLY) CONDITION TROUBLESHOOTING Low Suction Pressure Check if sight glass is flashing or showing low charge. Check that expansion valve (TXV) isn’t restricted. Check element charge. Check that liquid line or filter isn’t restricted. Check that refrigeration lines and/or hoses are not kinked on either high or low sides. -
Page 27: Serial Label Information & Location
For additional technical information and service, see the TECHNICAL SERVICE page in this manual for instructions on contacting Structural Concepts’ Technical Service Department. See images below for samples of both refrigerated and non-refrigerated serial labels. ... -
Page 28: Carel® Controller - Programming The Instrument
Read And Save These Instructions - Page 1 of 3 Integrated Electronic Microprocessor Controller Programming The Instrument ▲ mute To Modify The Setpoint 1. Press and hold the “SET” key for at least 1 second. ▼ 2. Use arrow keys ▲ ▼ on temperature ▲... -
Page 29: Carel® Controller - User Interface, Summary Tables Of Alarms & Signals
Read And Save These Instructions - Page 2 of 3 Integrated Electronic Microprocessor Controller User Interface - Display Summary Table of Alarm and Signals: Display, Buzzer and Relay reset alarms w/manual reset / reset HACCP alarms / reset temp. monitoring... -
Page 30: Carel® Controller - Summary Table Of Operating Parameters (After Programming Key)
Read And Save These Instructions - Page 3 of 3 Integrated Electronic Microprocessor Controller Summary Table of Operating Parameters CODE PARAMETER UOM* TYPE MINIMUM MAXIMUM DEFAULT flag Select Celsius (°C) or Fahrenheit (°F) Calibration of probe 1 °C/°F Calibration of probe 2 °C/°F For Case Specific... -
Page 31: Technical Service Contact Information & Warranty Information
DAMAGE, STORE’S AMBIENT CONDITIONS, ETC.) LIMITED WARRANTY Overview: All sales by Structural Concepts Corporation (hereafter referred to as “SCC”) are subject to the following limited warranty. “Goods” refers to the product or products being sold by SCC. Warranty Scope: Warranty is for equipment sold in the United States, Canada, Mexico and Puerto Rico. Equipment sold elsewhere may carry modified warranties.
