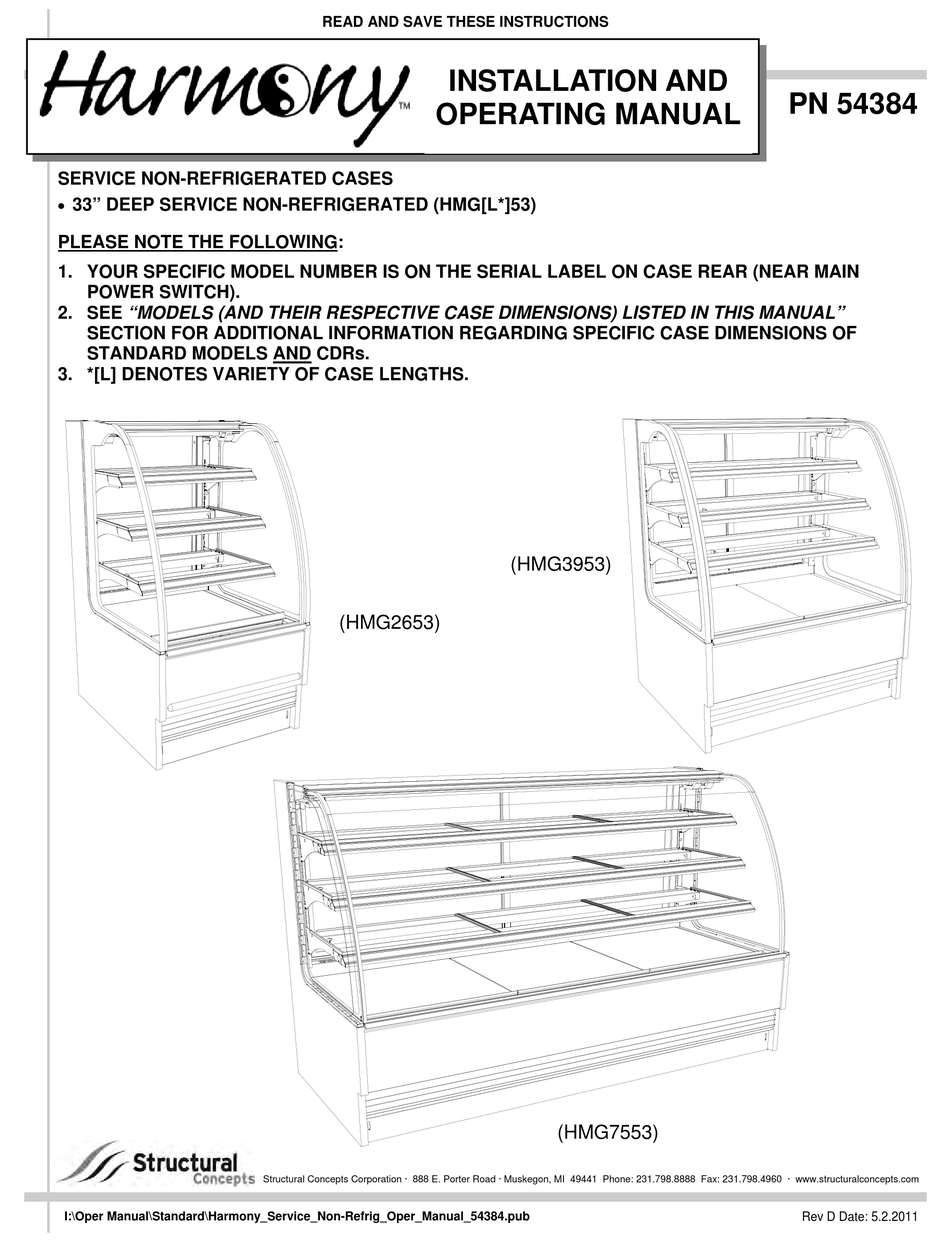

SERVICE NON-REFRIGERATED CASES
33" DEEP SERVICE NON-REFRIGERATED (HMG[L*]53)
PLEASE NOTE THE FOLLOWING:
1. YOUR SPECIFIC MODEL NUMBER IS ON THE SERIAL LABEL ON CASE REAR (NEAR MAIN
POWER SWITCH).
2. SEE "MODELS (AND THEIR RESPECTIVE CASE DIMENSIONS) LISTED IN THIS MANUAL"
SECTION FOR ADDITIONAL INFORMATION REGARDING SPECIFIC CASE DIMENSIONS OF
STANDARD MODELS AND CDRs.
3. *[L] DENOTES VARIETY OF CASE LENGTHS.
I:\Oper Manual\Standard\Harmony_Service_Non-Refrig_Oper_Manual_54384.pub
READ AND SAVE THESE INSTRUCTIONS
OPERATING MANUAL
(HMG2653)
Structural Concepts Corporation · 888 E. Porter Road · Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 · www.structuralconcepts.com
INSTALLATION AND
(HMG3953)
(HMG7553)
(HMG7553R)
PN 54384
Rev D Date: 5.2.2011
Advertisement
Table of Contents
Related Manuals for Structural Concepts Harmony HMG3953
Summary of Contents for Structural Concepts Harmony HMG3953
- Page 1 SECTION FOR ADDITIONAL INFORMATION REGARDING SPECIFIC CASE DIMENSIONS OF STANDARD MODELS AND CDRs. 3. *[L] DENOTES VARIETY OF CASE LENGTHS. (HMG3953) (HMG2653) (HMG7553) (HMG7553R) Structural Concepts Corporation · 888 E. Porter Road · Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 · www.structuralconcepts.com I:\Oper Manual\Standard\Harmony_Service_Non-Refrig_Oper_Manual_54384.pub Rev D Date: 5.2.2011...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS ……………………………………………………………………………………... MODELS LISTED IN MANUAL (AND DETERMINING THEIR RESPECTIVE CASE DIMENSIONS) OVERVIEW / COMPLIANCE / WARNINGS / PRECAUTIONS …………..………………………...….. INSTALLATION: SKID REMOVAL / POSITIONING & ALIGNING UNITS / GLASS SHELVES ..….. INSTALLATION: ADJOINING UNITS / CASTERS / ADJUSTING FRONT TOE-KICK ………………. INSTALLATION: CRUMB TRAY / SLIDING DECKS / REAR LEDGE &... -
Page 3: Models Listed In Manual (And Determining Their Respective Case Dimensions)
MODELS LISTED IN THIS MANUAL (AND DETERMINING THEIR RESPECTIVE CASE DIMENSIONS) DETERMINING YOUR MODEL AND ITS CASE DIMENSIONS: Note 1. Your model number can be found on serial label at rear of case (near main power switch). Note 2. Dimensions of most models can be found at www.structuralconcepts.com. Simply enter the case model number into the Product Number Search box. -
Page 4: Overview / Compliance / Warnings / Precautions
OVERVIEW / COMPLIANCE / WARNINGS / PRECAUTIONS OVERVIEW covered by warranty. See compliance specifics below. These cases should be installed and operated according to these instructions to insure proper WARNINGS performance. Improper use will void warranty. Following are important warnings to prevent This unit is designed for the display of products in injury or death. -
Page 5: Installation: Skid Removal / Positioning & Aligning Units / Glass Shelves
Caution! Check that plastic edging is intact before placing glass shelving onto brackets! Plastic edging must NOT be removed from glass shelves. Contact Structural Concepts for replacement edging (see TECHNICAL SERVICE CONTACT INFORMATION section). Check that glass shelving is in proper position before placing product in case. -
Page 6: Installation: Adjoining Units / Casters / Adjusting Front Toe-Kick
INSTALLATION: ADJOINING UNITS / CASTERS / ADJUSTING FRONT TOE-KICK 5. Bolting and Caulking Units Together Follow these steps to assure a secure, level lineup. Outer Sealant Inner Sealant A. Begin all lineups leveling from highest point of floor. Bead Bead Approximate hole B. -
Page 7: Installation: Crumb Tray / Sliding Decks / Rear Ledge & Storage / Tongs & Bag [Note: This Page Contains Optional Features & Options]
INSTALLATION: CRUMB TRAY / SLIDING DECKS / REAR LEDGE & STORAGE / TONGS & BAG B. Crumb Tray Slots: Crumbs may be brushed into 8. Crumb Tray / Sliding Decks / Rear Ledge & open slots in decking (and down into removable Storage / Tongs &... -
Page 8: Installation: Adjoining Units / Casters / Adjusting Front Toe-Kick
INSTALLATION: ADJUSTING LEVELERS / WIRING DIAGRAMS / FIELD WIRING CONNECTIONS 9. Cases With Levelers: Adjust Levelers Adjustable After case is in position, adjust case so it is level Wrench and plumb (see illustration at right). You may need to remove front and/or rear -Kick to access levelers. -
Page 9: Installation: Field Wiring Connections For Various Models
INSTALLATION: FIELD WIRING CONNECTIONS FOR VARIOUS MODELS 12. Field Wiring Connection (Most Units) Field wiring / junction box location is at case rear. See illustration at left and below (shown with electrical box cover removed for viewing purposes). Single phase leads are provided. -
Page 10: Installation: Front Glass Alignment & Adjustment
INSTALLATION: FRONT GLASS ALIGNMENT & ADJUSTMENT (CURVED & FLAT FRONT GLASS) 15. Setting The Case With Levelers Begin with all levelers touching the floor so that case does not wobble when front glass is closed. Front Glass Alignment Proper alignment of the front glass is important to create and maintain a seal inside the case. ... -
Page 11: Installation: Display Case Start-Up
INSTALLATION: DISPLAY CASE START-UP time lighting may require a short warm-up 16. Display Case Start-Up period for the bulbs. Slightly dim or a flickering When power is supplied, turn on lights. The of new bulbs is normal. light switch is located on inside of case at top ... -
Page 12: Installation: Raising The Front Curved Glass / Removing Rear Doors
INSTALLATION: RAISING THE FRONT CURVED GLASS / REMOVING REAR DOORS 17. Raising the Front Curved Glass 18. Removing the Rear Doors (Note: Optional Swinging Door are on HMG2653 Only) To raise the curved glass, secure lift handle extrusion on the bottom edge of the door and See illustration below. -
Page 13: Maintenance Fundamentals: Shelf Ass'y Removal / Standard Light Fixtures
MAINTENANCE FUNDAMENTALS: SHELF ASSEMBLY REMOVAL / STANDARD LIGHT FIXTURES 1. Shelf Assembly Removal Light Fixture Remove glass shelves Glass For lighted shelving, unplug the light cord. Shelving Lift light shelf straight up to separate from brackets. Remove rear shelf support ... -
Page 14: Maintenance Fundamentals: Led Light Fixtures
If case is provided with LED lights they will rarely require change-out. Contact Structural Concepts’ Technical Service Dept. for replacement parts (see Technical Service section of this guide). To remove LED light fixture, disconnect existing LED light from its brackets and self-adhesive tape. -
Page 15: Cleaning Schedule [To Be Performed By Store Personnel]
GENERAL CLEANING [TO BE PERFORMED BY STORE PERSONNEL] Cleaning Daily Weekly Monthly Task Clean side glass, front curved glass and the Clean Case Exterior sliding rear door glass (swinging door is optional on HMG2653) with a household or commercial glass cleaner and soft cloth. Clean wood, laminate and painted surfaces, and rear ledge with a warm soap and water solution and soft cloth. -
Page 16: Troubleshooting [To Be Performed By Store Personnel Unless Stated Otherwise]
TROUBLESHOOTING [TO BE PERFORMED BY STORE PERSONNEL UNLESS NOTED] Product is Drying Out Check the relative humidity in the store. Doors/Glass Won’t Shut Properly Check that the case is aligned, level and plumb. Case Not Properly Lining Up See the Installation section of this Operating Manual for instructions on properly aligning case and adjusting levelers (alongside other cases). -
Page 17: Serial Label Location & Listed Information
For additional technical information and service, see the TECHNICAL SERVICE page in this See sample serial label below. manual for instructions on contacting Structural Concepts’ Technical Service Department. See images below for samples of both refrigerated and non-refrigerated serial labels. -
Page 18: Technical Service Contact Information & Warranty Information
(Note: Standard Limited Warranty can be found at www.Structuralconcepts.com) All sales by Structural Concepts Corporation (SCC) are subject to the following limited warranty. “Goods” refers to the product or products being sold by SCC. Warranty Scope: Warranty is for equipment sold in the United States, Canada, Mexico and Puerto Rico. Equipment sold elsewhere may carry modified warranty.
