READ AND SAVE THESE INSTRUCTIONS
G-SERIES
INSTALLATION AND
OPERATING MANUAL
P/N 20-75325
G-SERIES SERVICE AMBIENT MID-VOLUME BAKERY MERCHANDISERS:
OPTIONS INCLUDE: FLAT ANGLED FRONT GLASS / CURVED FRONT GLASS / VERTICAL FRONT GLASS /
LIFT FRONT GLASS / FULL & OPEN END PANELS / ADJUSTABLE FLIP-UP LEDGE WITH PULL-PINS

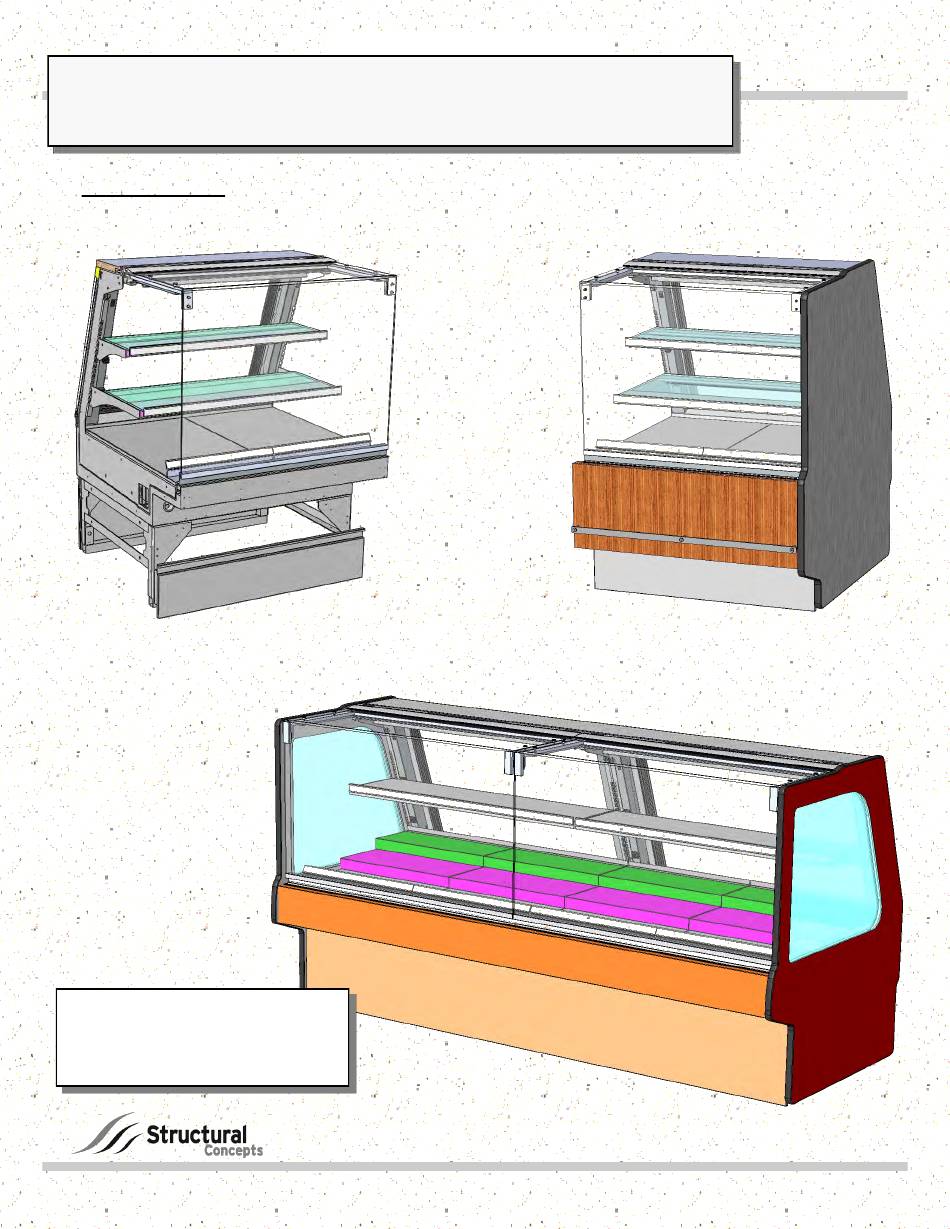

GMDSV3D.7215 Shown Above / Rear Lift Front
GMDSV3D. Shown Above / Rear Lift Front Glass /
Glass / Removable Rear Sliding Doors /
Removable Rear Sliding Doors / To Be Cladded In-Field
End & Front Panel From Factory
THIS OPERATING MANUAL INCLUDES
(BUT IS NOT LIMITED TO) THE FOLLOWING
MODELS: GMDSV3D, GMDSV3D.7215,
GMDSV4D, GMDSV4D.6246, GMDSV8D,
GMDSV8D.6246, and GMDSV8D.6694.
GMDSV8D Shown Above / Steps / Rear Hinged Front
Glass Lift / Removable Rear Sliding Doors
Structural Concepts Corporation ∙ 888 E. Porter Road ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 ∙ www.structuralconcepts.com
I:\Manuals\Standard\G-Series_GMDSVXD_GMDSXD_Service_Ambient_Dry_ Bakery_Cases_20-75325.pub
Rev C Date: 1.22.2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Structural Concepts G Series

  • Page 1 GMDSV8D Shown Above / Steps / Rear Hinged Front Glass Lift / Removable Rear Sliding Doors Structural Concepts Corporation ∙ 888 E. Porter Road ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 ∙ www.structuralconcepts.com I:\Manuals\Standard\G-Series_GMDSVXD_GMDSXD_Service_Ambient_Dry_ Bakery_Cases_20-75325.pub Rev C Date: 1.22.2019...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS …………………………………………………………...…...….………………….….. OVERVIEW / COMPLIANCE / PRECAUTIONS / WARNINGS / WIRING DIAGRAM ...…..……….……... POWER CORD & PLUG WIRING DIAGRAM ………………………………………………………………….. INSTALLATION: REMOVAL FROM SKID, MAGNETIZED/SLOT-HOOK TOE-KICK DESIGN ..……….. INSTALLATION, CONTINUED: BOLTING and CAULKING UNITS TOGETHER ………………………... INSTALLATION, CONTINUED: FRAME SUPPORT RAIL SHIMMING …………………………………….
  • Page 3: Overview / Compliance / Precautions / Warnings / Wiring Diagram

    OVERVIEW   Performance issues when in violation of applicable These Structural Concepts merchandisers are NEC, federal, state and local electrical codes are not designed to merchandise packaged and unpackaged covered by warranty. See below compliance specifics. products at ambient temperatures.
  • Page 4: Power Cord & Plug Wiring Diagram

    POWER CORD & PLUG WIRING DIAGRAM WIRING DIAGRAM POWER CORD AND PLUG MAINTENANCE   Each case has its own wiring diagram folded and in its Caution! Risk of electric shock. If cord or plug own packet. becomes damaged, replace only with cord and plug of ...
  • Page 5: Installation: Removal From Skid, Magnetized/Slot-Hook Toe-Kick Design

    INSTALLATION: REMOVAL FROM SKID, MAGNETIZED/SLOT-HOOK TOE-KICK DESIGN 2. Remove Case From Skid (Casters) 1. Remove Case From Skid Remove shipping brackets that may be securing  Remove shipping brace that may be casters to skid securing case to skid.  Place ramp up against skid (to allow case to ...
  • Page 6: Installation, Continued: Bolting And Caulking Units Together

    INSTALLATION, CONTINUED: BOLTING and CAULKING UNITS TOGETHER other! After leveling, all cases are to be at same 4. Bolting and Caulking Units Together height. Follow these steps to assure a secure, level lineup. G. Using SCC-supplied nuts & bolts, lightly tighten A.
  • Page 7: Installation, Continued: Frame Support Rail Shimming

    INSTALLATION, CONTINUED: FRAME SUPPORT RAIL SHIMMING 5. Position & Align Case Alongside Other 6. Frame Support Rails Must Be Shimmed Cases  Illustration below shows case with frame support rails.  Before adjusting levelers (or shimming frame  Shims will be provided with all cases that have support rails), make certain that the case is in frame support rails.
  • Page 8: Installation, Continued: Front Glass Alignment & Adjustment (Via Rail System)

    INSTALLATION, CONTINUED: FRONT GLASS ALIGNMENT & ADJUSTMENT (VIA RAIL SYSTEM) 7. Front Glass Alignment & Adjustment via Rail System (For Curved and Flat Front Glass)  Proper alignment of the front glass is important to create and maintain smooth opening and closing of glass. ...
  • Page 9: Installation, Continued: Field Wiring Box / Terminal Strip / Led Drivers

    INSTALLATION, CONTINUED: FIELD WIRING BOX / TERMINAL STRIP / LED DRIVERS / RACEWAYS 8. Field Wiring Box / T’Strip / LED Drivers /  Screws hold front electrical cover in place. Raceways Unscrew and drop electrical cover down and out. ...
  • Page 10: Installation, Continued: Optional Scale Stand / Adjustable Flip-Up Ledge With

    INSTALLATION, CONTINUED: OPTIONAL SCALE STAND / ADJUSTABLE FLIP-UP LEDGE 9. Scale Stand / Ethernet CAT5 / Receptacle Rear ledge step-by-step removal method is as follows:  Optional scale stand location and illustration is 1. Hinged Support Bracket is shown in its standard shown below.
  • Page 11: Start-Up And Operation / Light Fixtures / Led & Fluorescent Light Fixtures

     If case is provided with LED lights, they will rarely Shaped Insert require change-out.  Contact Structural Concepts’ Technical Service Department for replacement parts (see the Technical Service section of operating manual). Replacement of lamp:  To replace LED light fixture, simply disconnect the existing LED light from its brackets.
  • Page 12: Maintenance Fundamentals: Shelf Assemblies / Steps

    MAINTENANCE FUNDAMENTALS: SHELF ASSEMBLIES / STEPS 1. Shelf Assembly (Standard Style) chosen, shelf assembly may be tilted forward at 5° increments (see illustration below right).  Shelves may be removed from uprights for cleaning or service. 2. Steps  For lighted shelving, unplug the light cord and ...
  • Page 13: Maintenance Fundamentals, Continued: Rear Sliding Doors

    MAINTENANCE FUNDAMENTALS, CONTINUED: REAR SLIDING DOORS 3. Removing the Rear Sliding Doors  Move doors toward the center of the case.  Individually lift each door up toward the top of the Note: Doors are not interchangeable. There is an case;...
  • Page 14: Maintenance Fundamentals, Continued: Lift-Up Front Glass

    MAINTENANCE FUNDAMENTALS, CONTINUED: LIFT-UP FRONT GLASS 4. Lift-Up Front Glass  Simply grasp lift handle and raise upward.  Front glass will raise up to 90° (as shown in below  Model GMDSV8 (and possibly other models) has illustration). front glass that may be raised via hinge that is ...
  • Page 15: Cleaning Schedule

    CLEANING SCHEDULE AREA FREQ. INSTRUCTIONS Exterior Daily All Glass / Mirrors: Clean side glass, front glass and mirrors with household or commercial glass cleaner. Clean out door track with moist cloth. Daily Rear Sliding Door Exterior Glass: Clean with household or commercial glass cleaner.
  • Page 16: Troubleshooting

    TROUBLESHOOTING CONDITION TROUBLESHOOTING Case Lights Not Working Check that light switch has been flipped on. Check bulbs for proper installation and connection (as illustrated below). Check for burned out bulbs. Lift-Up Front Glass Is See INSTALLATION, CONTINUED: FRONT GLASS ALIGNMENT & Scraping Sides of Case ADJUSTMENT (VIA RAIL SYSTEM) section in manual for corrective instructions.
  • Page 17: Serial Label Information & Location

    For additional technical information and service, see the TECHNICAL SERVICE page in this  manual for instructions on contacting Structural Concepts’ Technical Service Department. manual for instructions on contacting Structural Concepts’ Technical Service Department. See images below for samples of both refrigerated and non-refrigerated serial labels.
  • Page 18: Carel Technical Service Contact Information & Warranty Information

    DAMAGE, STORE’S AMBIENT CONDITIONS, ETC.) LIMITED WARRANTY Overview: All sales by Structural Concepts Corporation (hereafter referred to as “SCC”) are subject to the following limited warranty. “Goods” refers to the product or products being sold by SCC. Warranty Scope: Warranty is for equipment sold in the United States, Canada, Mexico and Puerto Rico. Equipment sold elsewhere may carry modified warranties.
