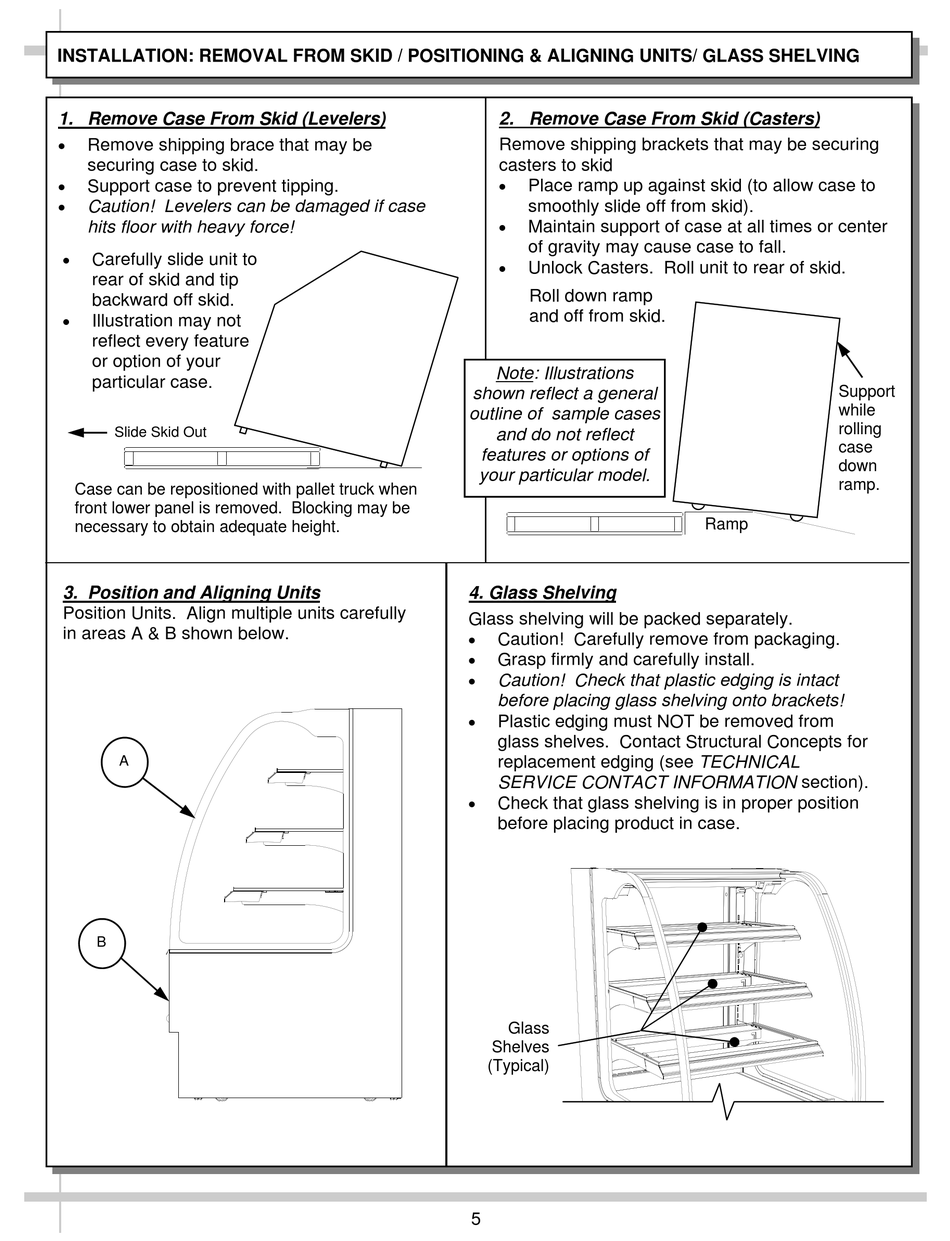

INSTALLATION: REMOVAL FROM SKID / POSITIONING & ALIGNING UNITS/ GLASS SHELVING
1. Remove Case From Skid (Levelers)

Remove shipping brace that may be
securing case to skid.

Support case to prevent tipping.

Caution! Levelers can be damaged if case
hits floor with heavy force!

Carefully slide unit to
rear of skid and tip
backward off skid.

Illustration may not
reflect every feature
or option of your
particular case.
Slide Skid Out
Case can be repositioned with pallet truck when
front lower panel is removed. Blocking may be
necessary to obtain adequate height.
3. Position and Aligning Units
Position Units. Align multiple units carefully
in areas A & B shown below.
A
B
2. Remove Case From Skid (Casters)
Remove shipping brackets that may be securing
casters to skid

Place ramp up against skid (to allow case to
smoothly slide off from skid).

Maintain support of case at all times or center
of gravity may cause case to fall.

Unlock Casters. Roll unit to rear of skid.
Roll down ramp
and off from skid.
Note: Illustrations
shown reflect a general
outline of sample cases
and do not reflect
features or options of
your particular model.
4. Glass Shelving
Glass shelving will be packed separately.

Caution! Carefully remove from packaging.

Grasp firmly and carefully install.

Caution! Check that plastic edging is intact
before placing glass shelving onto brackets!

Plastic edging must NOT be removed from
glass shelves. Contact Structural Concepts for
replacement edging (see TECHNICAL
SERVICE CONTACT INFORMATION section).

Check that glass shelving is in proper position
before placing product in case.
Glass
Shelves
(Typical)
5
Support
while
rolling
case
down
ramp.
Ramp
