START-UP AND OPERATION

Case Start-Up
•
Plug cord into a certified electrical outlet with
ground.
•
Turn on the Main Power Switch. Switch is in
the Drop-In Refrigerated Section on the rear
right hand side of base.
•
The Temperature Control Module (LED) will
illuminate. Evaporator coil fans and the
compressor motor should turn on.
•
From the front of the case, raise the deck to
confirm that the coil fans are functioning
properly.
•
Turn on the lights. Light Switch is in the Up-
per Display interior of the case at rear right
side (see illustration at right).
•
First time lighting may require a short warm
up period for the bulbs. Slightly dim or a
flickering of new bulbs is normal.
Temperature Settings
•
This case has been tested to maintain a
temperature at or below 5° Celsius / 41°
Fahrenheit.
•
When the merchandiser is in a start up
mode or has been idle for a long period of
time, the unit will require 30 minutes in order
to pull-down to temperature.
•
Spirit-Filled Thermometer located in refriger-
ated compartment is for monitoring warmest
air temperature in accordance with NSF®
Std. 7 (see illustration at right).
•
The temperature is controlled by a Tempera-
ture Control Module. It is located at the
lower-right area (from the case rear) of the
Drop-In Refrigerated Section. See top-right
illustration for general location.
•
If a temperature setting change is
required,refer to the instructions for the
CPC® (ESC3) Temperature Control
Programming operating section of this man-
ual
•
Note: See Technical Data section of this
manual for proper settings to maintain prod-
uct temperature per model.
R
888 Porter Rd. Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 www.structuralconcepts.com
10
Upper
Display
Case
Shelves
Deck
Drop-In
Refrigerated
Condensate
Section

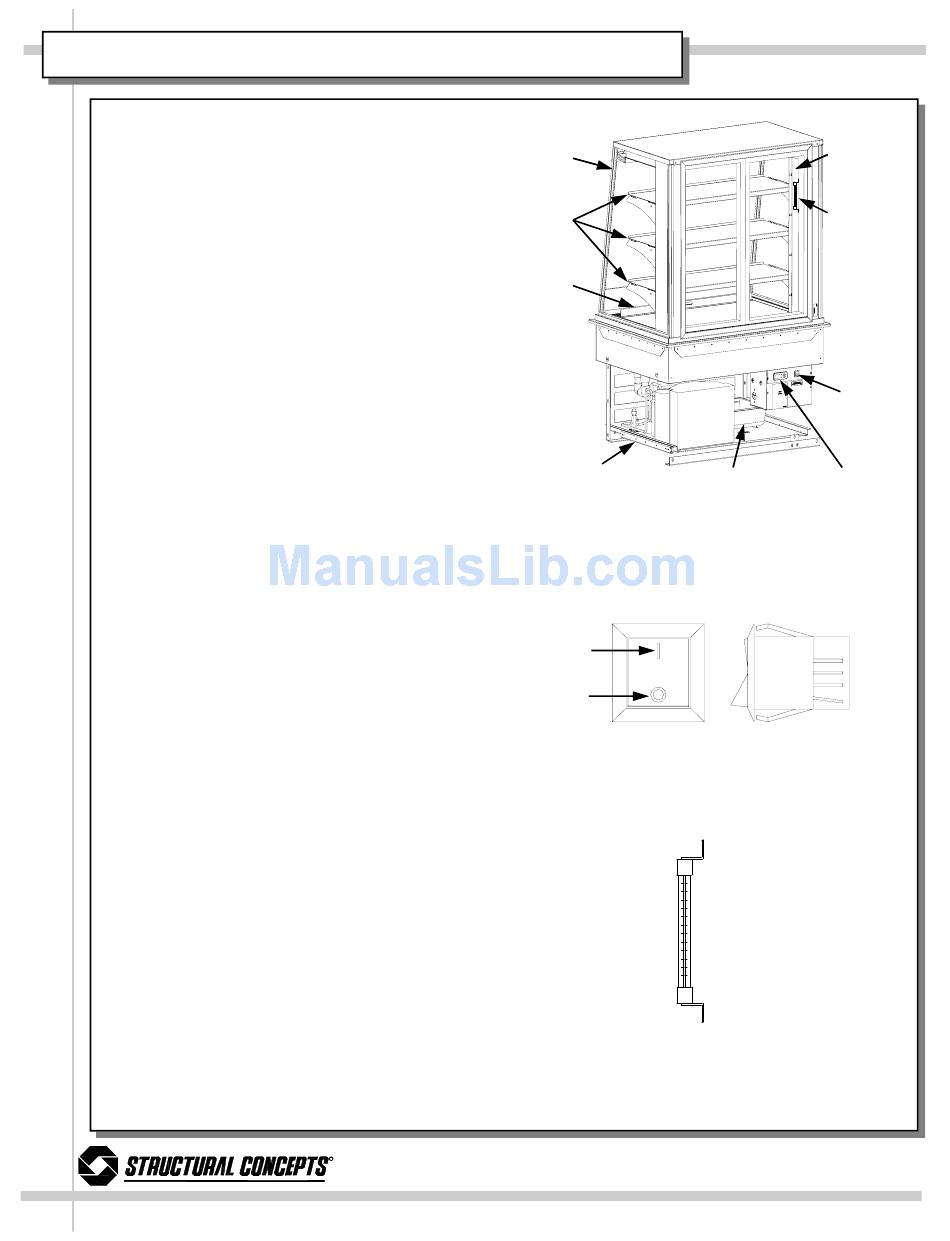

— Upper Display Case & Drop-In Refrigeration Section —
ON
OFF
—– Main Power "Rocker" Switch —–
—– Spirit-Filled Thermometer —–
Light
Switch
Spirit-Filled
Thermometer
(see illustra-
tion below)
Main
Power
"Rocker"
Switch
Temperature
Pan Control Module
