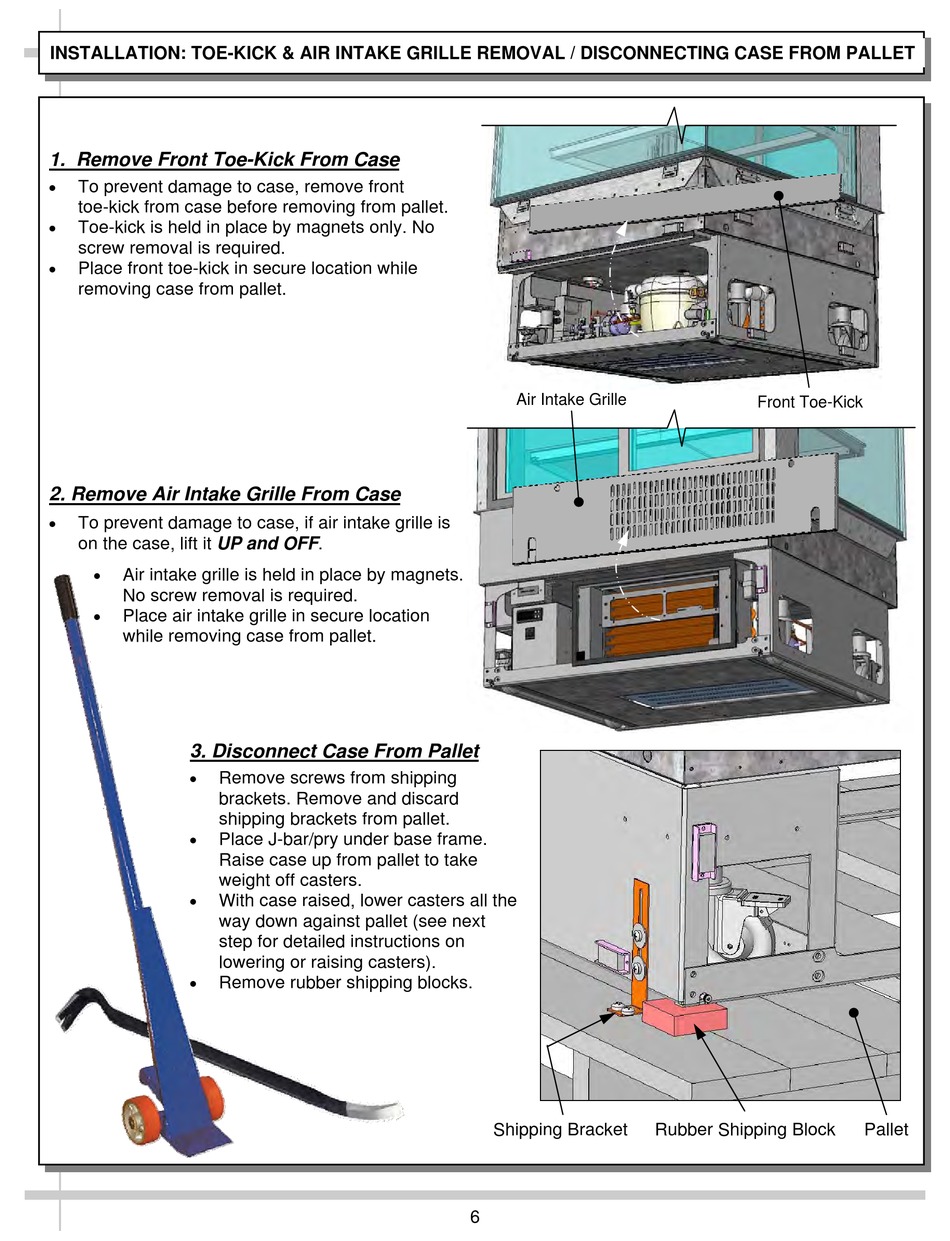

INSTALLATION: TOE-KICK & AIR INTAKE GRILLE REMOVAL / DISCONNECTING CASE FROM PALLET
1. Remove Front Toe-Kick From Case

To prevent damage to case, remove front
toe-kick from case before removing from pallet.

Toe-kick is held in place by magnets only. No
screw removal is required.

Place front toe-kick in secure location while
removing case from pallet.
2. Remove Air Intake Grille From Case

To prevent damage to case, if air intake grille is
on the case, lift it UP and OFF.

Air intake grille is held in place by magnets.
No screw removal is required.

Place air intake grille in secure location
while removing case from pallet.
3. Disconnect Case From Pallet

Remove screws from shipping
brackets. Remove and discard
shipping brackets from pallet.

Place J-bar/pry under base frame.
Raise case up from pallet to take
weight off casters.

With case raised, lower casters all the
way down against pallet (see next
step for detailed instructions on
lowering or raising casters).

Remove rubber shipping blocks.
Air Intake Grille
Shipping Bracket
6
Front Toe-Kick
Rubber Shipping Block

Pallet
