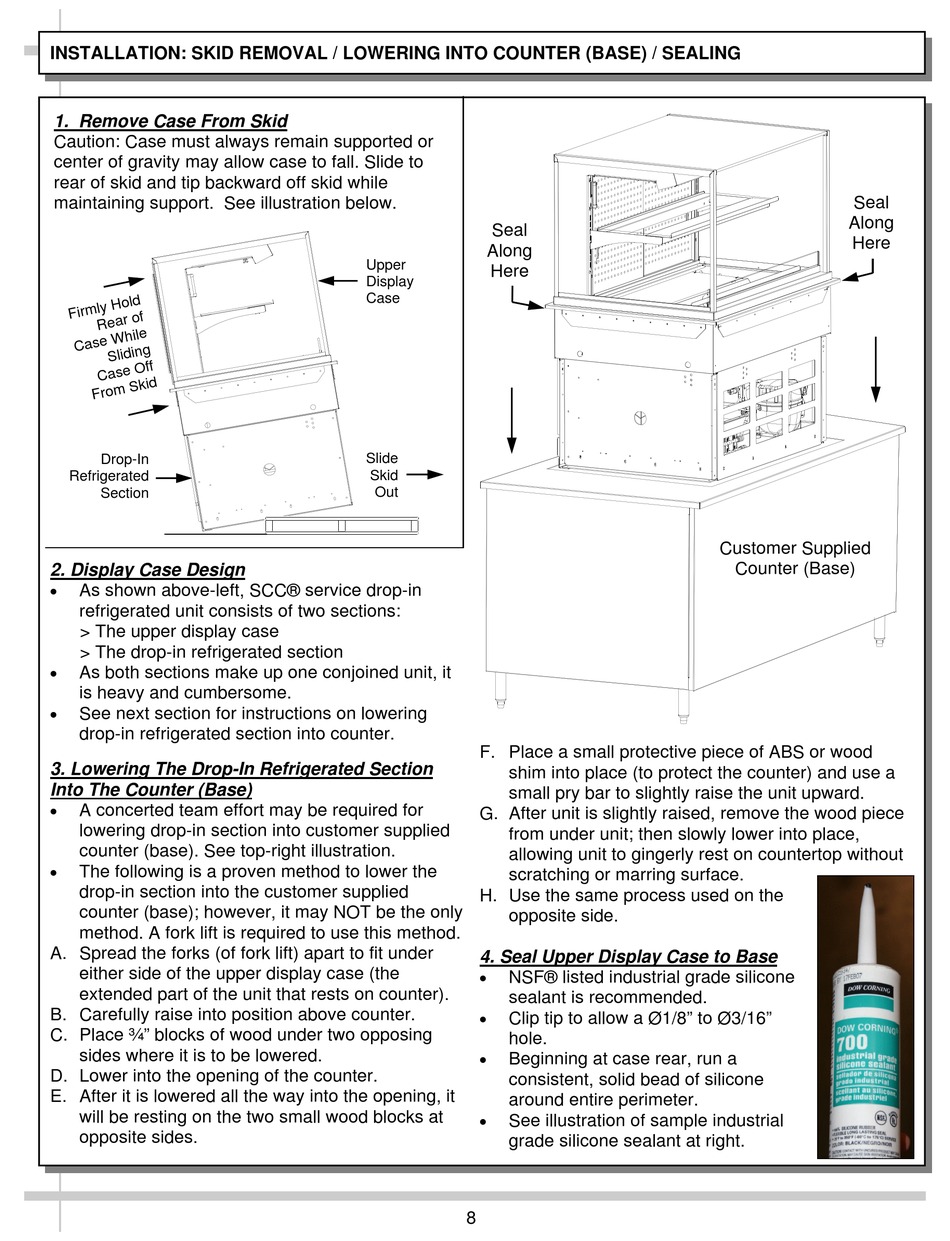

INSTALLATION: SKID REMOVAL / LOWERING INTO COUNTER (BASE) / SEALING

1. Remove Case From Skid
Caution: Case must always remain supported or
center of gravity may allow case to fall. Slide to
rear of skid and tip backward off skid while
maintaining support. See illustration below.
Drop-In
Refrigerated
Section
2. Display Case Design

As shown above-left, SCC® service drop-in
refrigerated unit consists of two sections:
> The upper display case
> The drop-in refrigerated section

As both sections make up one conjoined unit, it
is heavy and cumbersome.

See next section for instructions on lowering
drop-in refrigerated section into counter.
3. Lowering The Drop-In Refrigerated Section
Into The Counter (Base)

A concerted team effort may be required for
lowering drop-in section into customer supplied
counter (base). See top-right illustration.

The following is a proven method to lower the
drop-in section into the customer supplied
counter (base); however, it may NOT be the only
method. A fork lift is required to use this method.
A. Spread the forks (of fork lift) apart to fit under
either side of the upper display case (the
extended part of the unit that rests on counter).
B. Carefully raise into position above counter.
C. Place ¾" blocks of wood under two opposing
sides where it is to be lowered.
D. Lower into the opening of the counter.
E. After it is lowered all the way into the opening, it
will be resting on the two small wood blocks at
opposite sides.
Seal
Along
Upper
Here
Display
Case
Slide
Skid
Out
F. Place a small protective piece of ABS or wood
shim into place (to protect the counter) and use a
small pry bar to slightly raise the unit upward.
G. After unit is slightly raised, remove the wood piece
from under unit; then slowly lower into place,
allowing unit to gingerly rest on countertop without
scratching or marring surface.
H. Use the same process used on the
opposite side.
4. Seal Upper Display Case to Base

NSF® listed industrial grade silicone
sealant is recommended.

Clip tip to allow a Ø1/8" to Ø3/16"
hole.

Beginning at case rear, run a
consistent, solid bead of silicone
around entire perimeter.

See illustration of sample industrial
grade silicone sealant at right.
8
Seal
Along
Here
Customer Supplied
Counter (Base)
