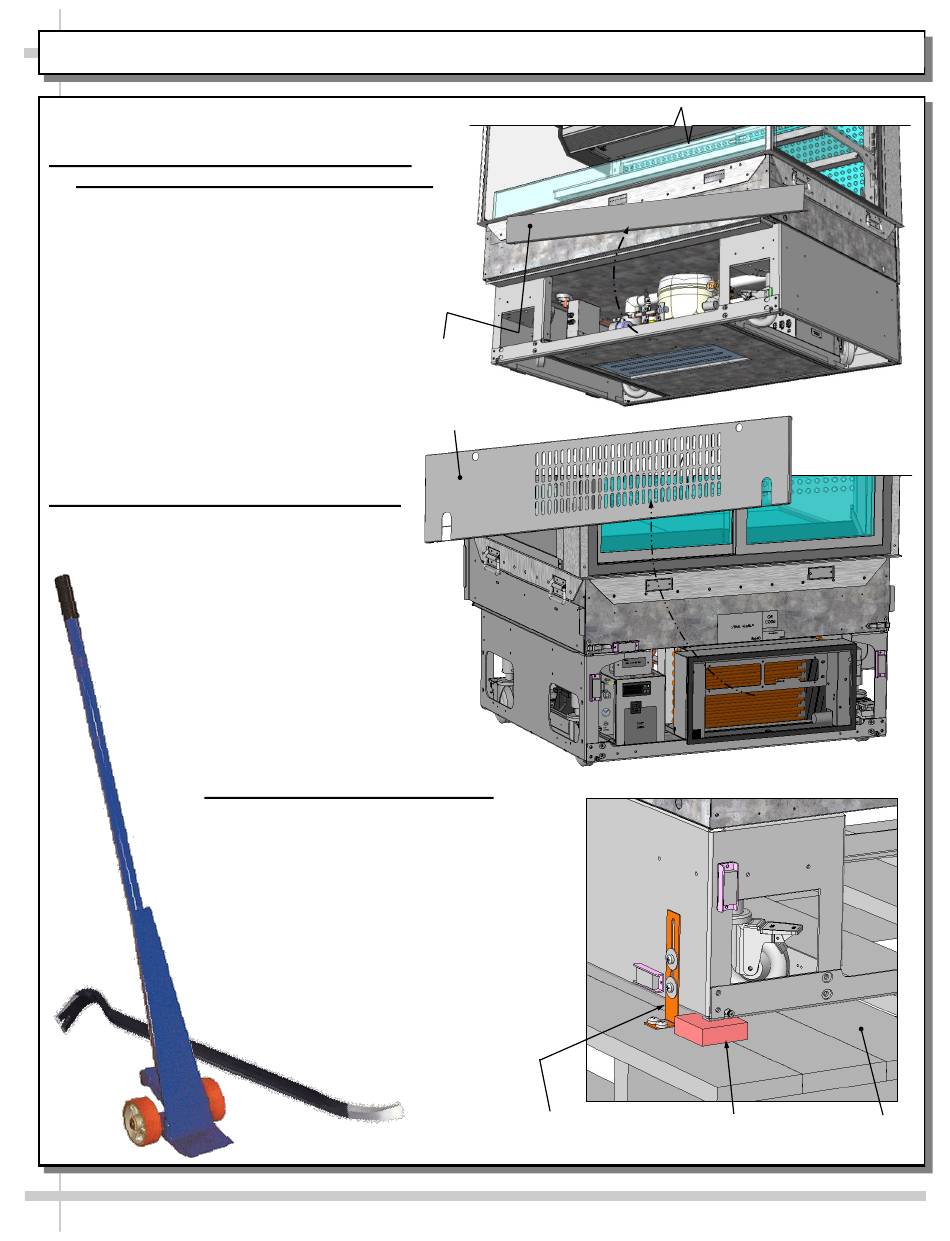

INSTALLATION: TOE-KICK & AIR INTAKE GRILLE REMOVAL / DISCONNECTING CASE FROM PALLET
1. Cases With Rear Access Condenser
Package Only: Remove Front Toe-Kick
To prevent damage to case, remove front
toe-kick from case before removing from pallet.
Toe-kick is held in place by magnets only.
No screw removal is required.
Place front toe-kick in secure location while
removing case from pallet.
2. Remove Air Intake Grille From Case
To prevent damage to case, lift air intake
grille UP and OFF case.
Rear grille is held in place by magnets.
No screw removal is required.
Place air intake grille in secure location
while removing case from pallet.
3. Disconnect Case From Pallet
Toe-Kick
Air Intake Grille
Use Phillips driver to remove screws
from shipping brackets. Remove and
discard shipping brackets from pallet.
Place J-bar/pry bar under base frame.
Raise case up from pallet to take
weight off casters.
With case raised, lower casters all the
way down against pallet (see next
step for detailed instructions on
lowering or raising casters).
Remove rubber shipping blocks.
Shipping
Rubber Shipping Block
Bracket
6

Pallet
