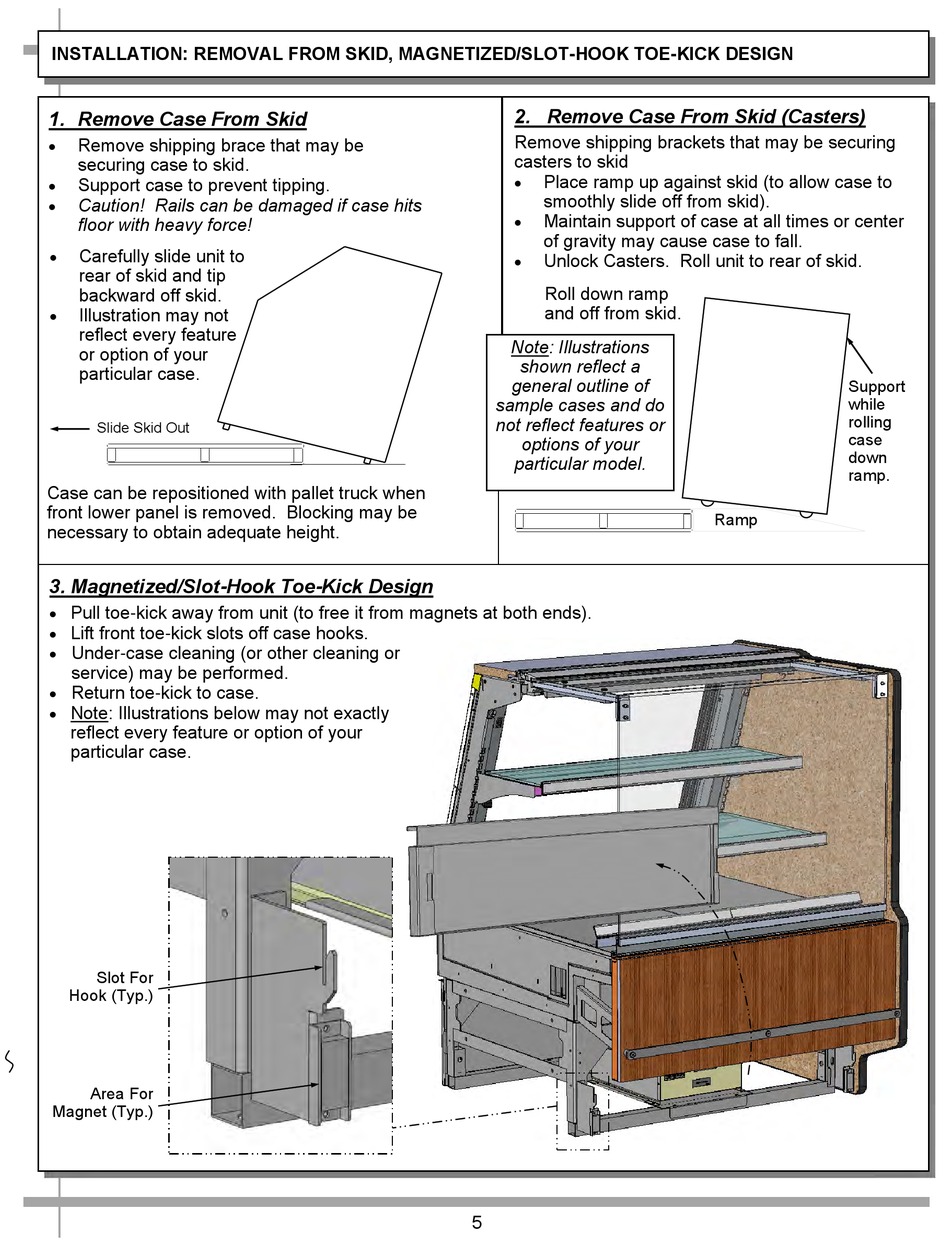

INSTALLATION: REMOVAL FROM SKID, MAGNETIZED/SLOT-HOOK TOE-KICK DESIGN

1. Remove Case From Skid
Remove shipping brace that may be
securing case to skid.
Support case to prevent tipping.
Caution! Rails can be damaged if case hits
floor with heavy force!
Carefully slide unit to
rear of skid and tip
backward off skid.
Illustration may not
reflect every feature
or option of your
particular case.
Slide Skid Out
Case can be repositioned with pallet truck when
front lower panel is removed. Blocking may be
necessary to obtain adequate height.
3. Magnetized/Slot-Hook Toe-Kick Design
Pull toe-kick away from unit (to free it from magnets at both ends).
Lift front toe-kick slots off case hooks.
Under-case cleaning (or other cleaning or
service) may be performed.
Return toe-kick to case.
Note: Illustrations below may not exactly
reflect every feature or option of your
particular case.
Slot For
Hook (Typ.)
Area For
Magnet (Typ.)
2. Remove Case From Skid (Casters)
Remove shipping brackets that may be securing
casters to skid
Place ramp up against skid (to allow case to
smoothly slide off from skid).
Maintain support of case at all times or center
of gravity may cause case to fall.
Unlock Casters. Roll unit to rear of skid.
Roll down ramp
and off from skid.
Note: Illustrations
shown reflect a
general outline of
sample cases and do
not reflect features or
options of your
particular model.
5
Support
while
rolling
case
down
ramp.
Ramp
