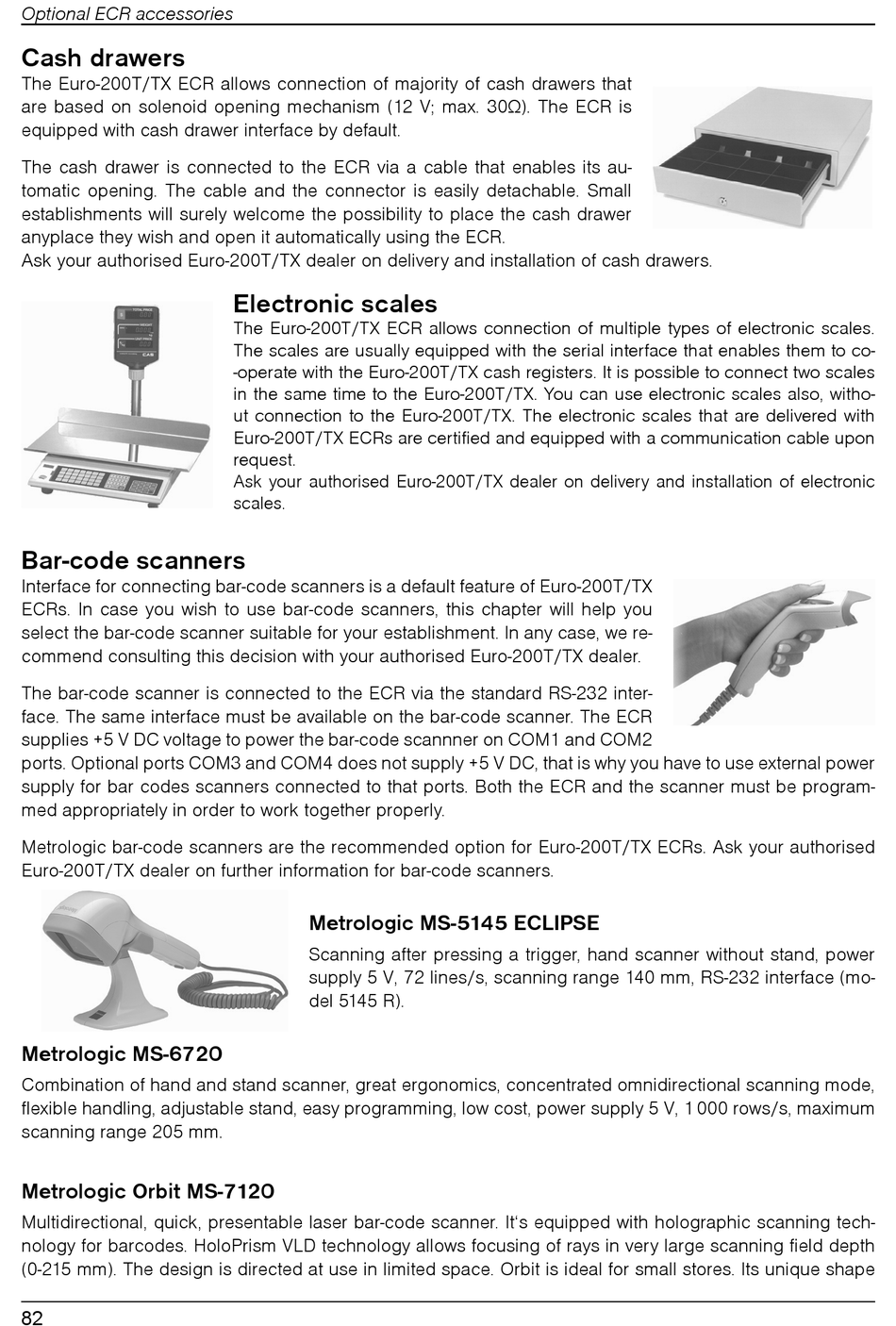

Optional ECR accessories

Cash drawers

The Euro-200T/TX ECR allows connection of majority of cash drawers that
are based on solenoid opening mechanism (12 V; max. 30�). The ECR is
equipped with cash drawer interface by default.
The cash drawer is connected to the ECR via a cable that enables its au-
tomatic opening. The cable and the connector is easily detachable. Small
establishments will surely welcome the possibility to place the cash drawer
anyplace they wish and open it automatically using the ECR.
Ask your authorised Euro-200T/TX dealer on delivery and installation of cash drawers.

Bar-code scanners

Interface for connecting bar-code scanners is a default feature of Euro-200T/TX
ECRs. In case you wish to use bar-code scanners, this chapter will help you
select the bar-code scanner suitable for your establishment. In any case, we re-
commend consulting this decision with your authorised Euro-200T/TX dealer.
The bar-code scanner is connected to the ECR via the standard RS-232 inter-
face. The same interface must be available on the bar-code scanner. The ECR
supplies +5 V DC voltage to power the bar-code scannner on COM1 and COM2
ports. Optional ports COM3 and COM4 does not supply +5 V DC, that is why you have to use external power
supply for bar codes scanners connected to that ports. Both the ECR and the scanner must be program-
med appropriately in order to work together properly.
Metrologic bar-code scanners are the recommended option for Euro-200T/TX ECRs. Ask your authorised
Euro-200T/TX dealer on further information for bar-code scanners.

Metrologic MS-6720

Combination of hand and stand scanner, great ergonomics, concentrated omnidirectional scanning mode,
flexible handling, adjustable stand, easy programming, low cost, power supply 5 V, 1 000 rows/s, maximum
scanning range 205 mm.

Metrologic Orbit MS-7120

Multidirectional, quick, presentable laser bar-code scanner. It's equipped with holographic scanning tech-
nology for barcodes. HoloPrism VLD technology allows focusing of rays in very large scanning field depth
(0-215 mm). The design is directed at use in limited space. Orbit is ideal for small stores. Its unique shape
82

Electronic scales

The Euro-200T/TX ECR allows connection of multiple types of electronic scales.
The scales are usually equipped with the serial interface that enables them to co-
-operate with the Euro-200T/TX cash registers. It is possible to connect two scales
in the same time to the Euro-200T/TX. You can use electronic scales also, witho-
ut connection to the Euro-200T/TX. The electronic scales that are delivered with
Euro-200T/TX ECRs are certified and equipped with a communication cable upon
request.
Ask your authorised Euro-200T/TX dealer on delivery and installation of electronic
scales.

Metrologic MS-5145 ECLIPSE

Scanning after pressing a trigger, hand scanner without stand, power
supply 5 V, 72 lines/s, scanning range 140 mm, RS-232 interface (mo-
del 5145 R).
