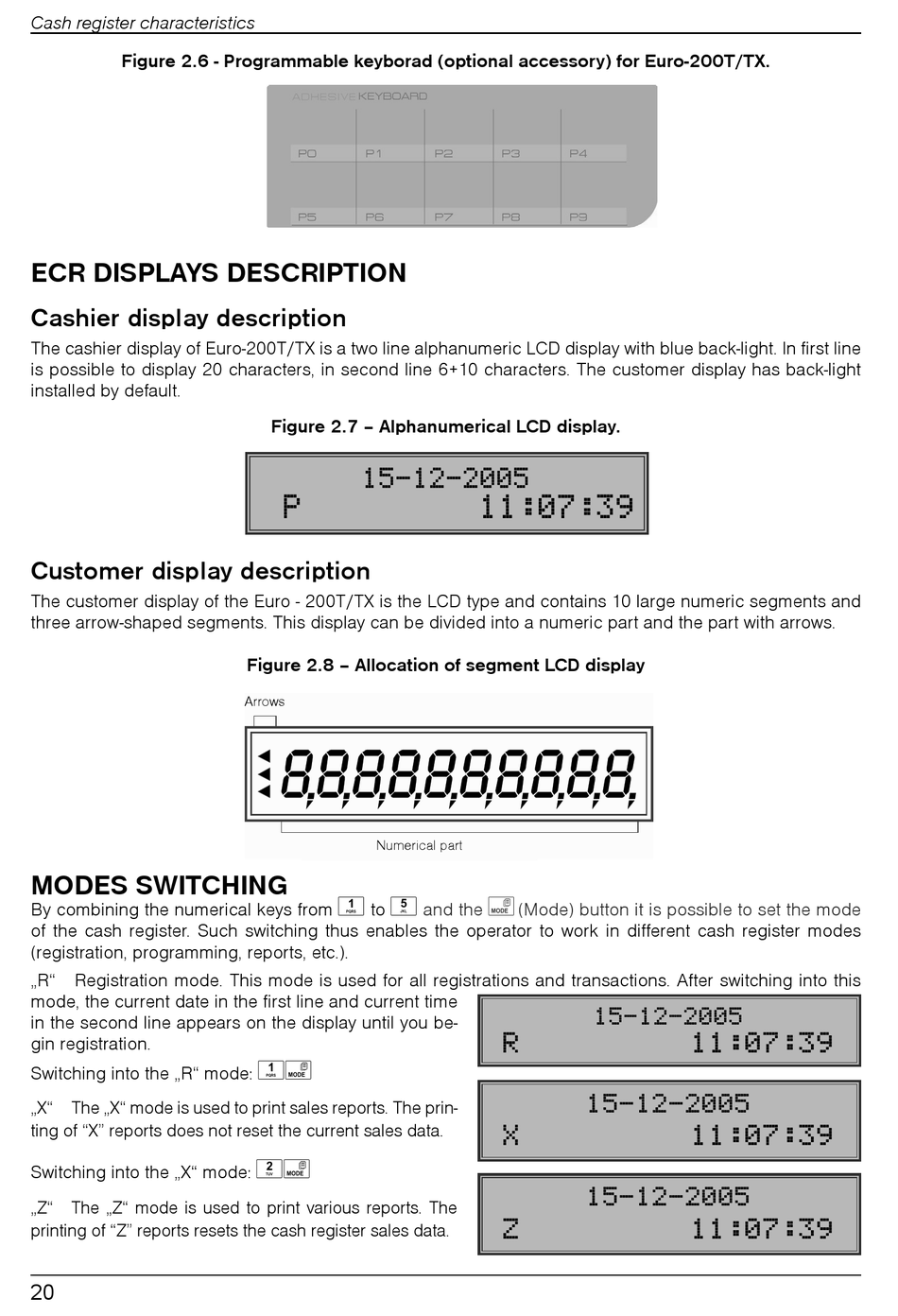

Cash register characteristics
Figure 2.6 - Programmable keyborad (optional accessory) for Euro-200T/TX.
ECR DISPLAYS DESCRIPTION
Cashier display description
The cashier display of Euro-200T/TX is a two line alphanumeric LCD display with blue back-light. In first line
is possible to display 20 characters, in second line 6+10 characters. The customer display has back-light
installed by default.
Customer display description
The customer display of the Euro - 200T/TX is the LCD type and contains 10 large numeric segments and
three arrow-shaped segments. This display can be divided into a numeric part and the part with arrows.
MODES SWITCHING
By combining the numerical keys from
of the cash register. Such switching thus enables the operator to work in different cash register modes
(registration, programming, reports, etc.).
„R" Registration mode. This mode is used for all registrations and transactions. After switching into this
mode, the current date in the first line and current time
in the second line appears on the display until you be-
gin registration.
Switching into the „R" mode:
„X" The „X" mode is used to print sales reports. The prin-
ting of "X" reports does not reset the current sales data.
Switching into the „X" mode:
„Z" The „Z" mode is used to print various reports. The
printing of "Z" reports resets the cash register sales data.
20
Figure 2.7 – Alphanumerical LCD display.
15-12-2005
P
Figure 2.8 – Allocation of segment LCD display
Ší���
Arrows
Numerical part
������������������������
to
11:07:39
and the
(Mode) button it is possible to set the mode
R
15-12-2005
X
15-12-2005
Z
15-12-2005
11:07:39
11:07:39
11:07:39
