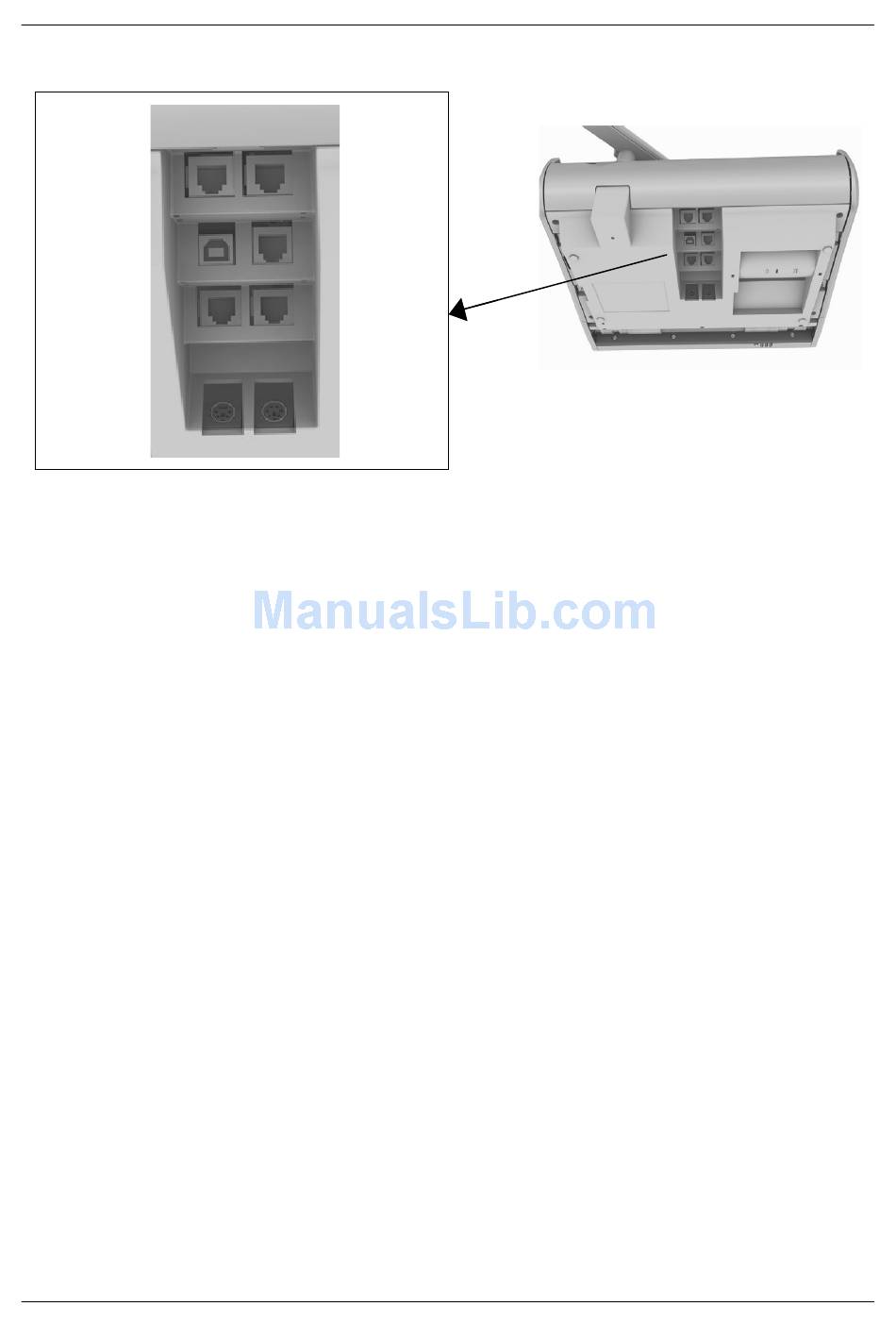

Figure 2.4 – Rear connectors of Euro-200T/TX cash register.
COM1 —>
USB —>
COM4 —>
POWER —>
COM1-2:
USB:
DRAW:
COM3-4:
POWER:
KEYB:

EURO-200T/TX KEYBOARD

Keyboard of Euro-200T/TX ECR is divided into three basic key groups – department keys, numeric keys
and function keys. If there are two functions on a single key, then you select the bottom function by simply
pressing the key. When you wish to use the top function on a key, the first press and hold Shift key, then
press the desired button. The keyboard is very comfortable and is ready for daytime work. The keys are
marked by large simple icons for fast orientation.
Warning: The keyboard is sensitive to dusty environments, humidity and dirt. Use dry clean cloth to clean
the plastic covers of the ECR. Never use cleaning agents as technical gasoline or solvents. Such chemicals
can damage the plastic cover or cause discolouration. If you need to clean heavily soiled plastic parts, we
recommend 3M cleaning spray.
<— COM2
<— DRW
<— COM3
<— KEYB
Connection of the computer, payment terminal, scanner or electronic scales
Connection of the computer through the USB
Connection of the cash drawer
Connection of the computer, payment terminal, scanner or electronic scales - Optional
Connection of the adapter or other external power supply
Connection of the external keyboard
Cash register characteristics
17
