2. PREPARATION

2.3 Attaching the Document Support Wires

Always ensure that the document support wires are attached to the scanner unit before

scanning a document.

Note: Drawings of the CS500 model are used for the explanations.

The document may be damaged upon contact with the power cable if it is scanned

without the document support wires in place.

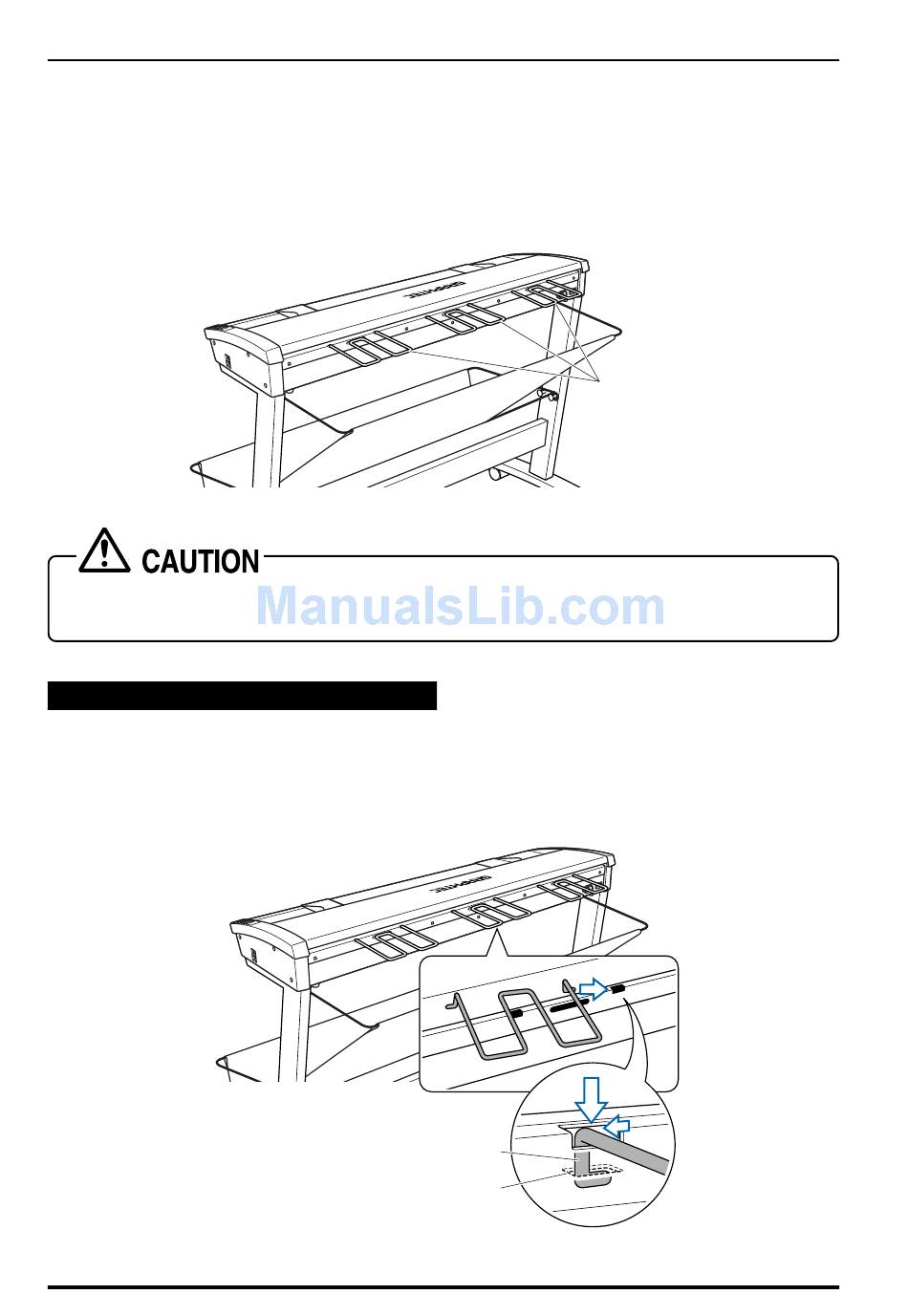

Attaching the document support wires

(1)

Insert one end of the document support wire provided into one of the smaller slots

at the rear of the scanner.

There is a second, hidden slot directly underneath each slot. Insert the end of the wire

so that it fits into the hidden slot on the lower level.

2 – 10

Document support wire end

Hidden slot on the lower level

Document

support wires

CS500/IS200
