6. TROUBLESHOOTING PROCEDURES

6.8 The input image data is incorrectly aligned

Cause
The data is misaligned at a joint between
the image sensors. (see the figure on
page 6-5)
Your scanner comes shipped from the factory after being adjusted for high precision.
Due to its operating environment or other factors, however, the scanning precision
may deviate in very rare cases.
Moreover, fine adjustment to correct such deviation can be performed using the driver
software if the deviation causes are overlapped or missing data.

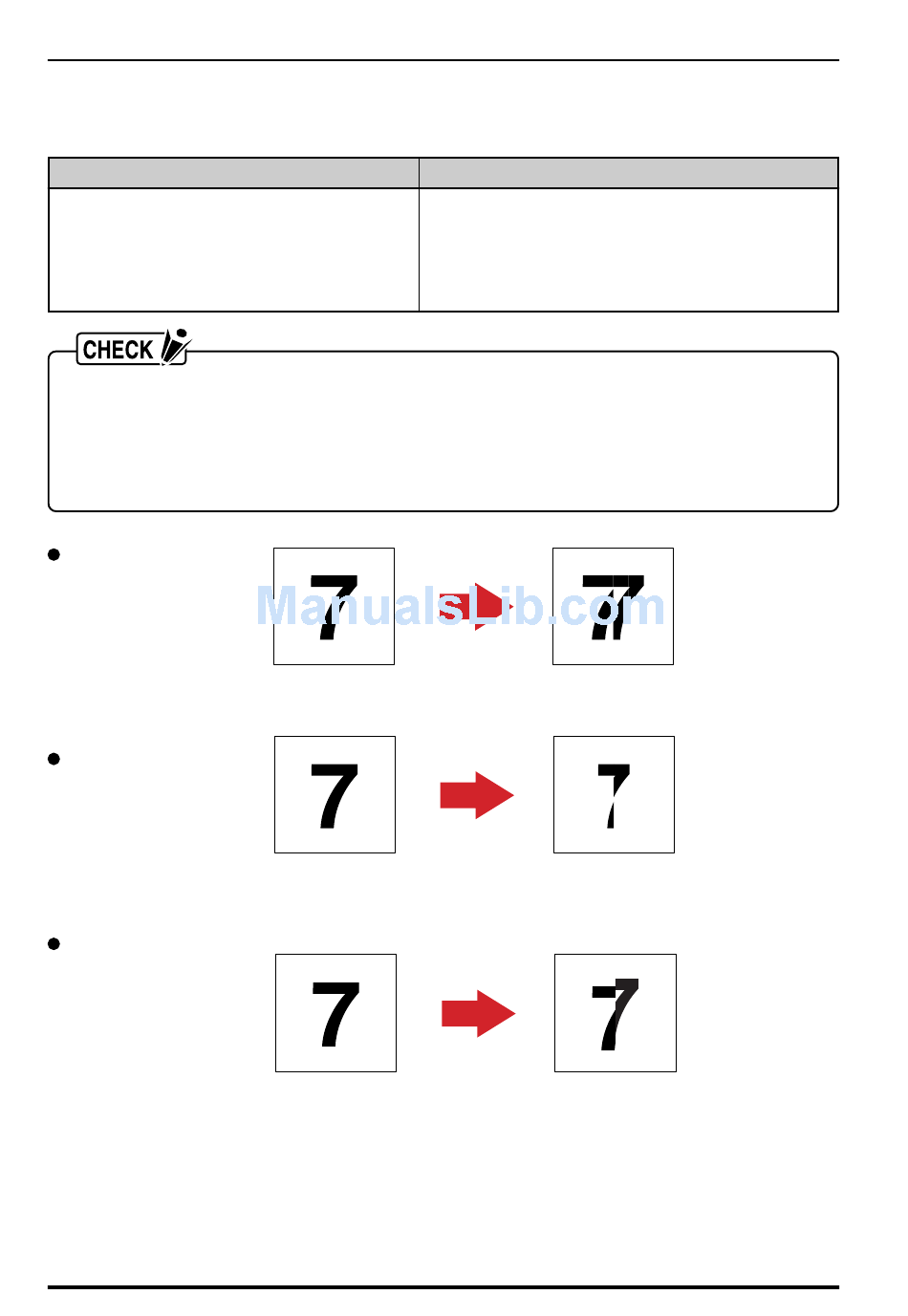

Overlapped data
Missing data
Deviation due to scanner specifications
6 – 4
Original document
Original document
Original document
Remedy
After opening the Tools menu of the driver program
(Scanning Master 21+ driver) provided with your
scanner, select the Joint Adjustment function
then perform adjustment to achieve a seamless
image.
Data overlaps
Data is missing
Deviation caused
by specifications
CS500/IS200
