2. PREPARATION
IS200 series
Two persons are required for the assembly operation.
Assemble the stand before mounting the scanner unit.

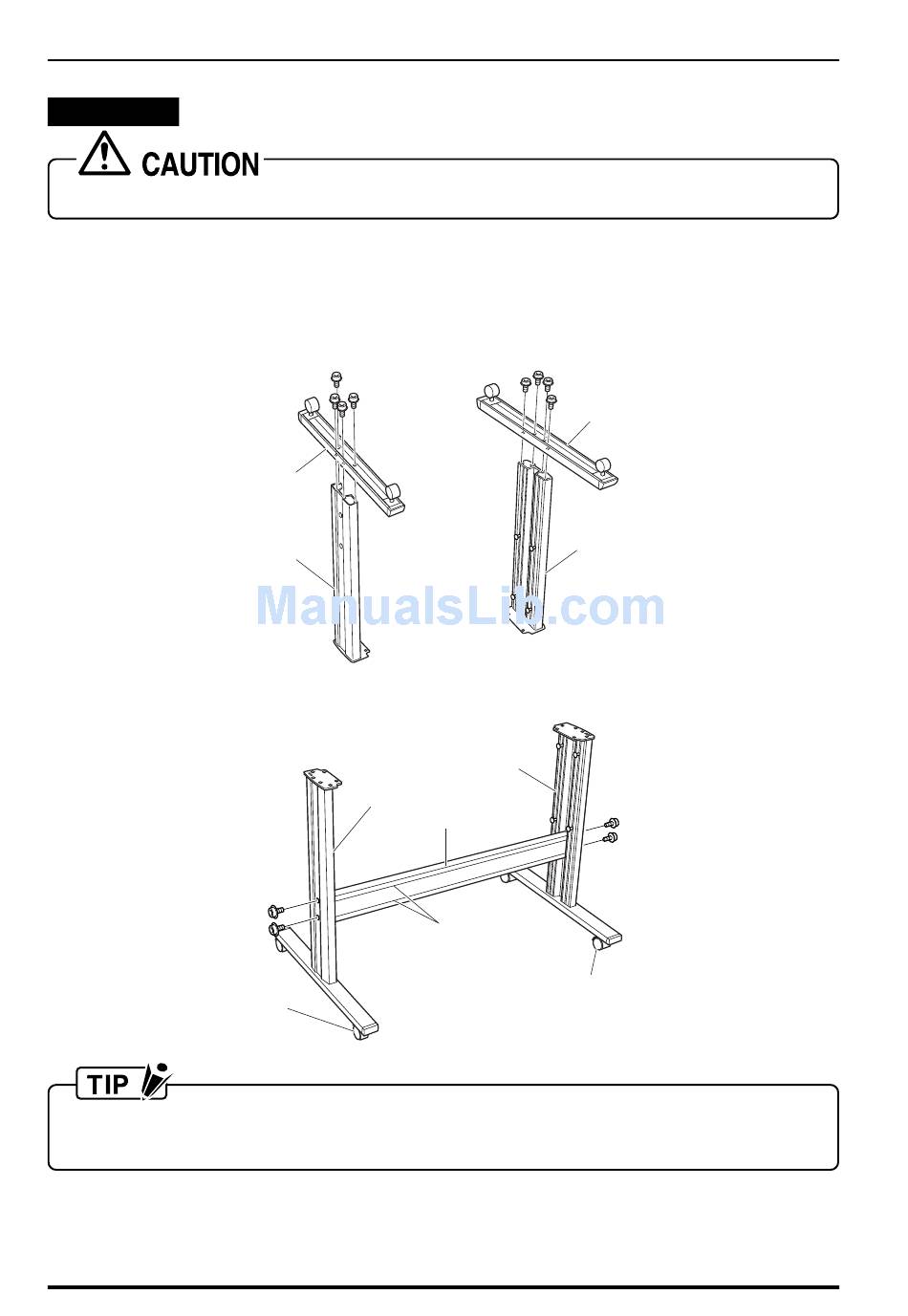

(1) Assemble the caster frames and the side stays using the four screws provided. (It is
not necessary to distinguish between the left side and the right side stay because both
stays have the same shape.)
Caster frame
(2) Attach the center bar to the side stays temporarily using the four screws provided.
Attach the center bar loosely. Tighten the screws securely after the scanner unit has
been mounted on the stand.
2 – 4
Side stay
Side stay
Center bar
Caster
Caster frame
Side stay
Side stay
Groove
Caster
