Function generator (AFG3102)
50 Ω BNC cable
MTX100A rear panel

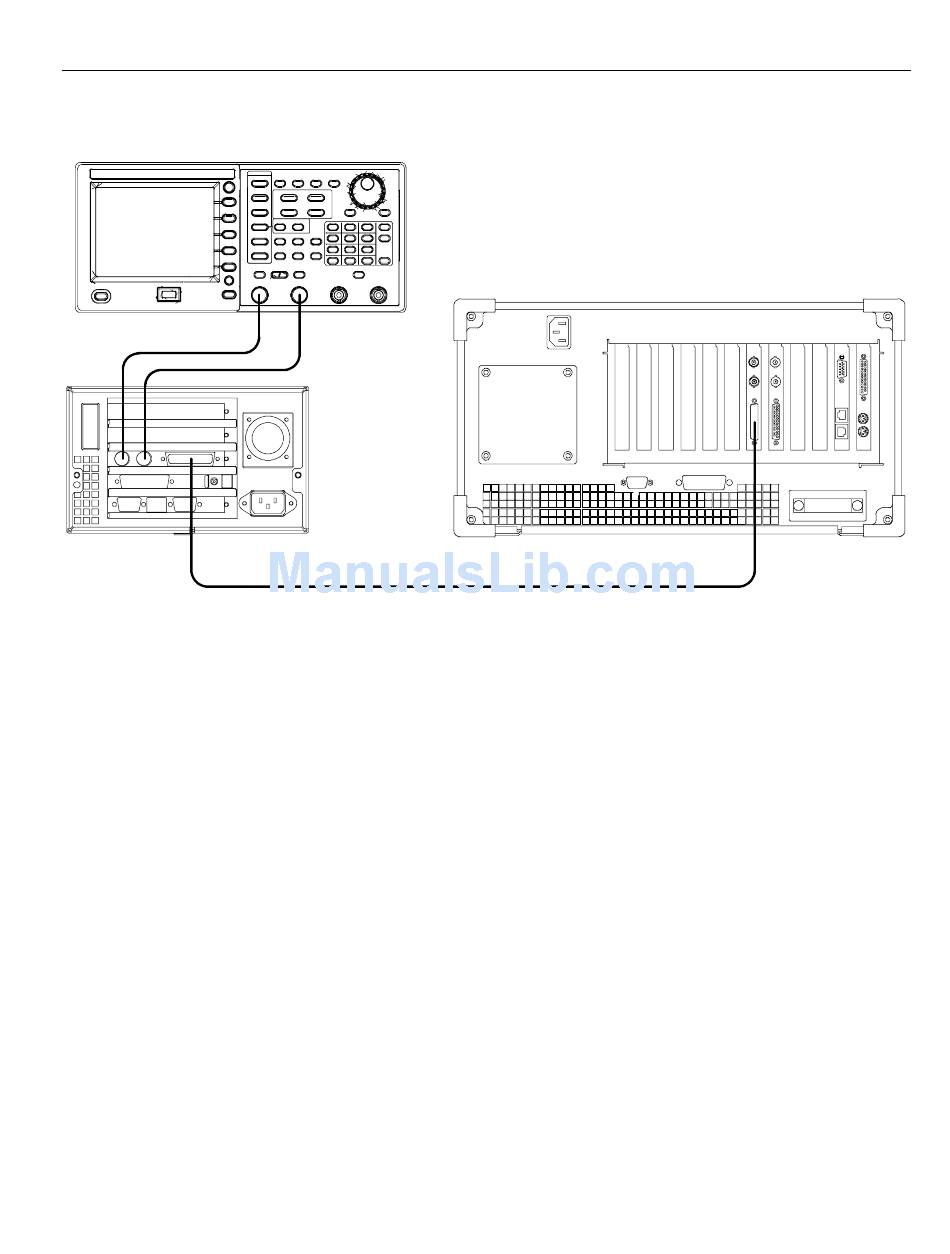

Figure 3-4: Equipment connections for verifying the external clock/reference and trigger inputs

MTX100A MPEG Recorder & Player Service Manual
MPEG analyzer rear panel (MTS430)
50 Ω BNC cable
Parallel interface cable
3. Set the function generator settings as indicated below:
Ch 1 output
Function . . . . . . . . . . .
Run Mode . . . . . . . . . .

Frequency

. . . . . . . . . .
Output Amplitude
Output Offset . . . . . . .
Ch 2 output
Function . . . . . . . . . . .
Run Mode . . . . . . . . . .
Output Menu . . . . . . . .
Output Amplitude
Output Offset . . . . . . .
4. Press the On button of the Ch1 output on the function generator.
5. Open the test64.TRP file on the MTX100A.
a. Select File > Open in the Play screen to open the Select File dialog box.
b. In the dialog box, select the test64.TRP file.
Square
Continuous
10 MHz
. . . . 0.5 V
2.0 V
Arb (Edit: Point Number: 100,
All Data: 16382)
Continuous
Load Impedance: 1 kΩ
. . . . 1.75 V
0.875 V
Performance Verification
3-9
