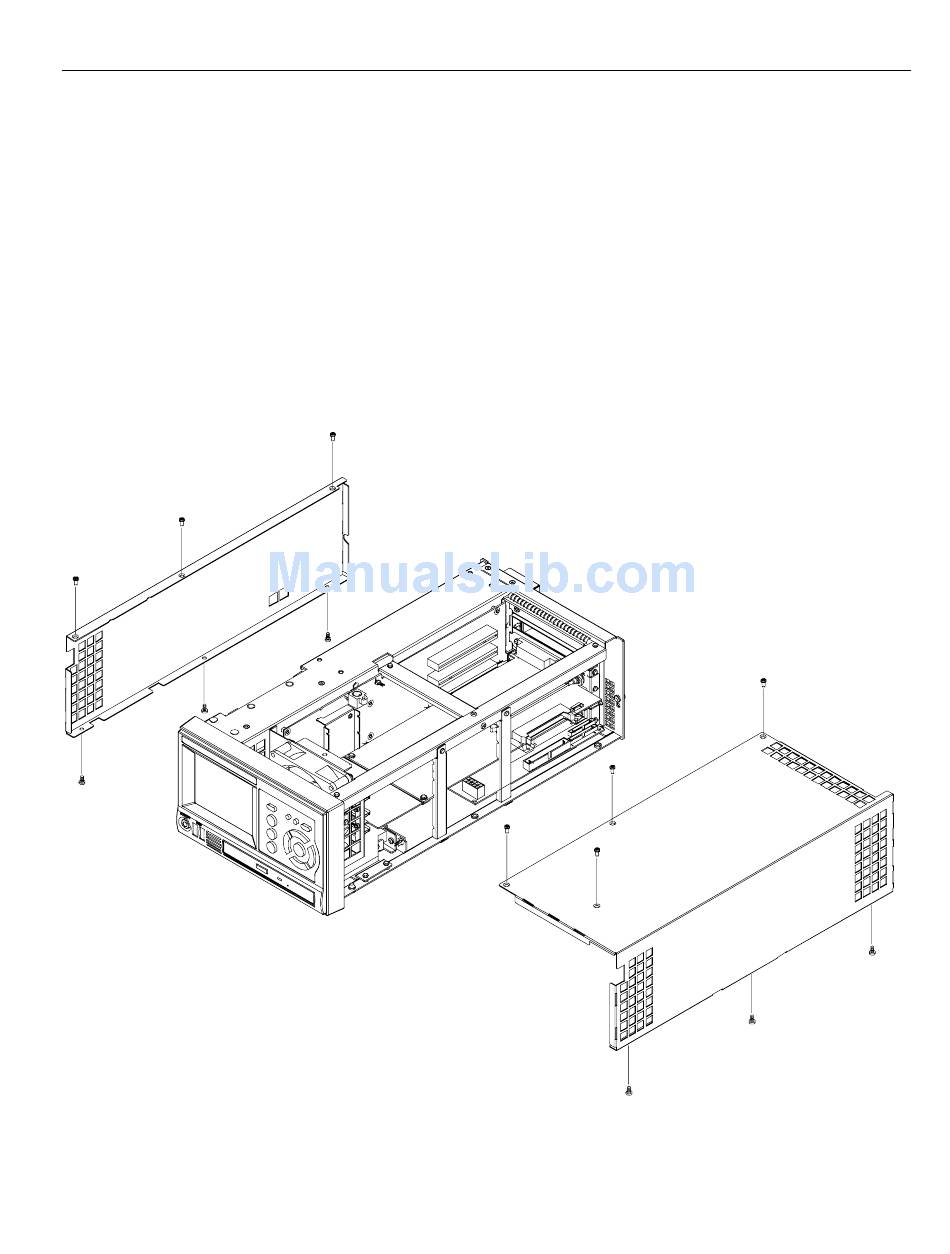

Figure 4-7: Right-side and left-side covers removal

MTX100A MPEG Recorder & Player Service Manual
b. Locate the left-side cover in the locator diagram External modules,
Figure 4-2, on page 4-11.
2. Orient the instrument: Set the MTX100A so its right side is down on the
work surface and its front is facing you.
3. Use a screwdriver with a T-10 Torx tip to remove the six screws securing the
left-side cover to the top and bottom of the chassis. See Figure 4-7.
4. Remove the left-side cover from the chassis.
5. Reinstallation: Perform steps 3 and 4 in reverse order to reinstall the left-side
cover.
Removal and Installation Procedures
4-17
