MTX100A Option 07 rear panel

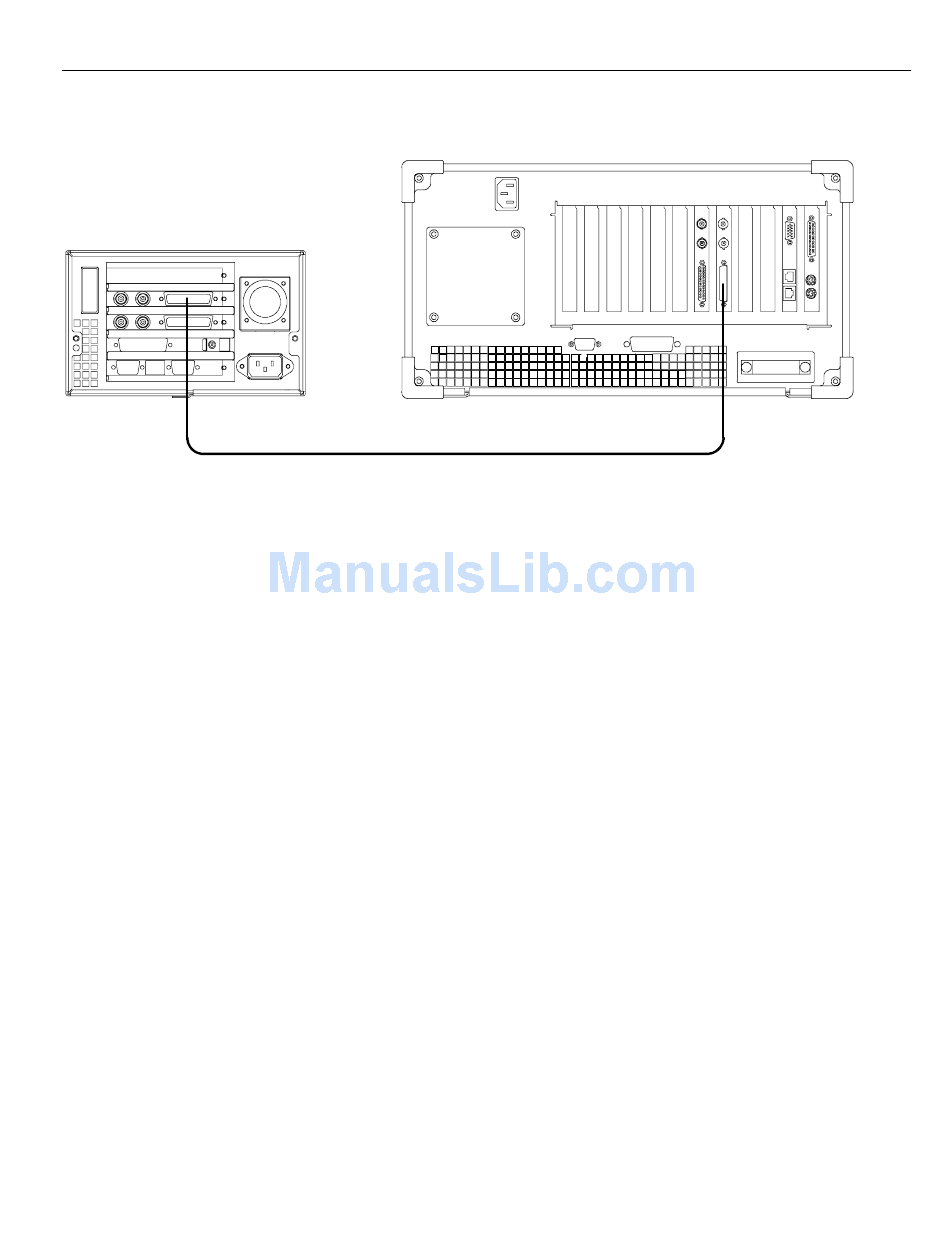

Figure 3-26: Equipment connection for verifying the SPI record operation
MTX100A MPEG Recorder & Player Service Manual
MPEG analyzer rear panel (MTS430)
Parallel interface cable
2. Press the REC button on the MTX100A Option 07 to display the Record
screen.
3. On the MTX100A Option 07, make the following settings:
Record menu
Source . . . . . .
Target . . . . . .
Record Size . .
File menu
Save Mode . . . . .
Save Mode . . . . .
4. Change the MPEG analyzer to Play mode.
5. Select File > Open on the MPEG analyzer to display the Open dialog box.
6. In the dialog box, navigate to the E:\MTXRTX_Test streams\
Record_Files, and then select the SPI214Mbps.trp file.
7. On the MPEG analyzer, make the following settings:
Play menu
Clock . . . . . . .
Update . . . . . .
Source . . . . . .
8. Click the PLAY button on the MPEG Analyzer to start playing the
SPI214Mbps.trp file.
SPI
RAM
100 MB
Over Write
D:\Record_Files\SPI214Mbps
Data Rate: 214 Mbps
Off
RAM
Performance Verification
3-51
