Performance Verification
MTX100A Option 07 rear panel

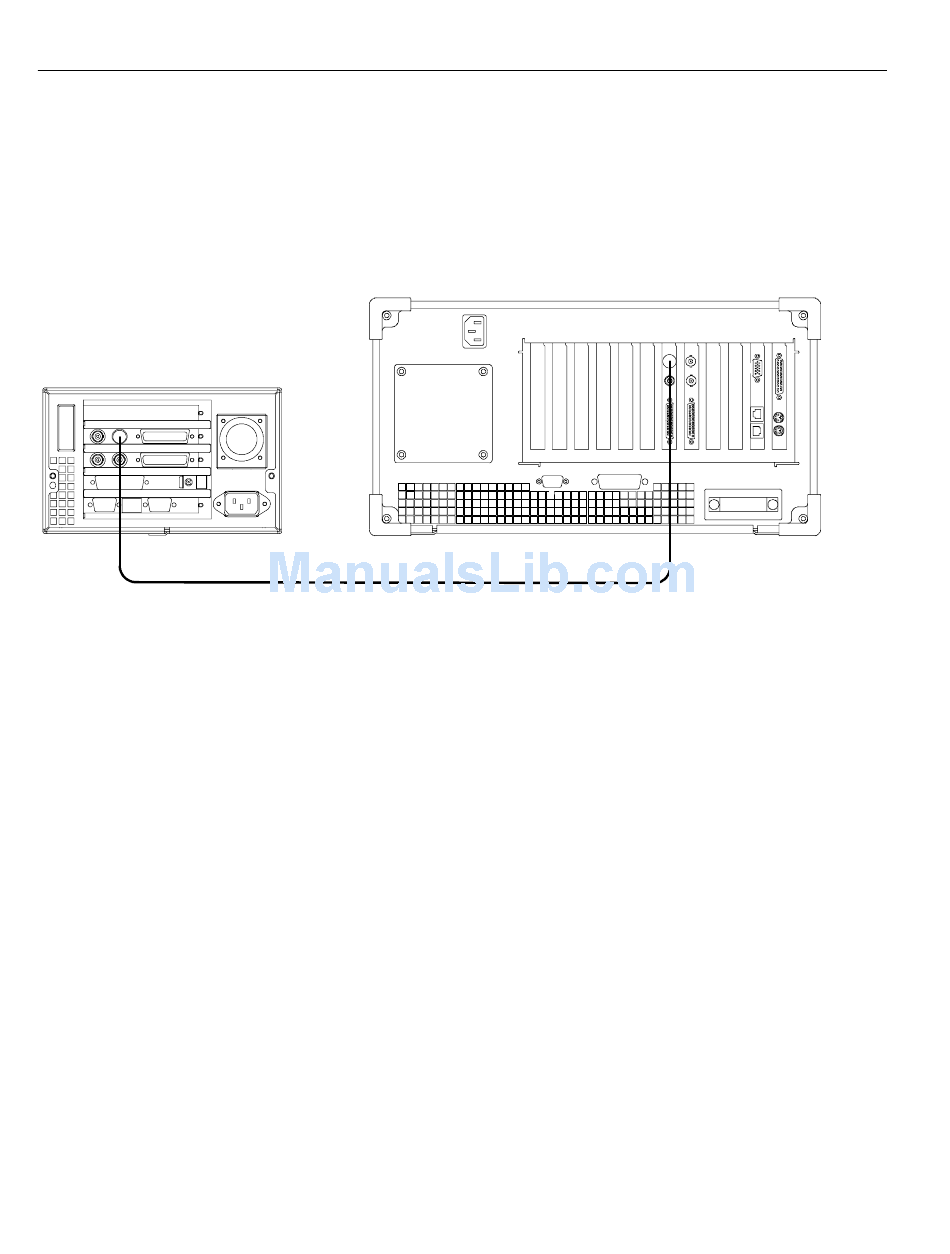

Figure 3-24: Equipment connection for verifying the 8VSB record operation
3-48
Checking the 8VSB Record Operation.
50. Use the 75 Ω BNC cable to connect the SMPTE310M/ASI Input connector
on the MTX100A Option 07 to the ASI/SMPTE Out connector on the
MPEG analyzer. See Figure 3-24.
MPEG analyzer rear panel (MTS430)
75 Ω BNC cable
51. Press the REC button on the MTX100A Option 07 to display the Record
screen.
52. On the MTX100 Option 07, make the following settings:
Record menu
Source . . . . . . . . .
Record size . . . . .
Target . . . . . . . . .
310M/ASI/SPI menu
Input Port . . . . . .
BNC Port . . . . . .
File menu
Save Mode . . . . .
Save . . . . . . . . . . .
53. Set the MPEG analyzer to the Play mode.
54. Select File > Open on the MPEG analyzer to display the Open dialog box.
55. In the dialog box, navigate to the E:\MTXRTX_Test Streams\Re-
cord_Files directory, and then select the S310M.trp file.
310M/ASI/SPI
100 MB
RAM
BNC
310M
Over Write
D:\Record_Files\S310M.trp
