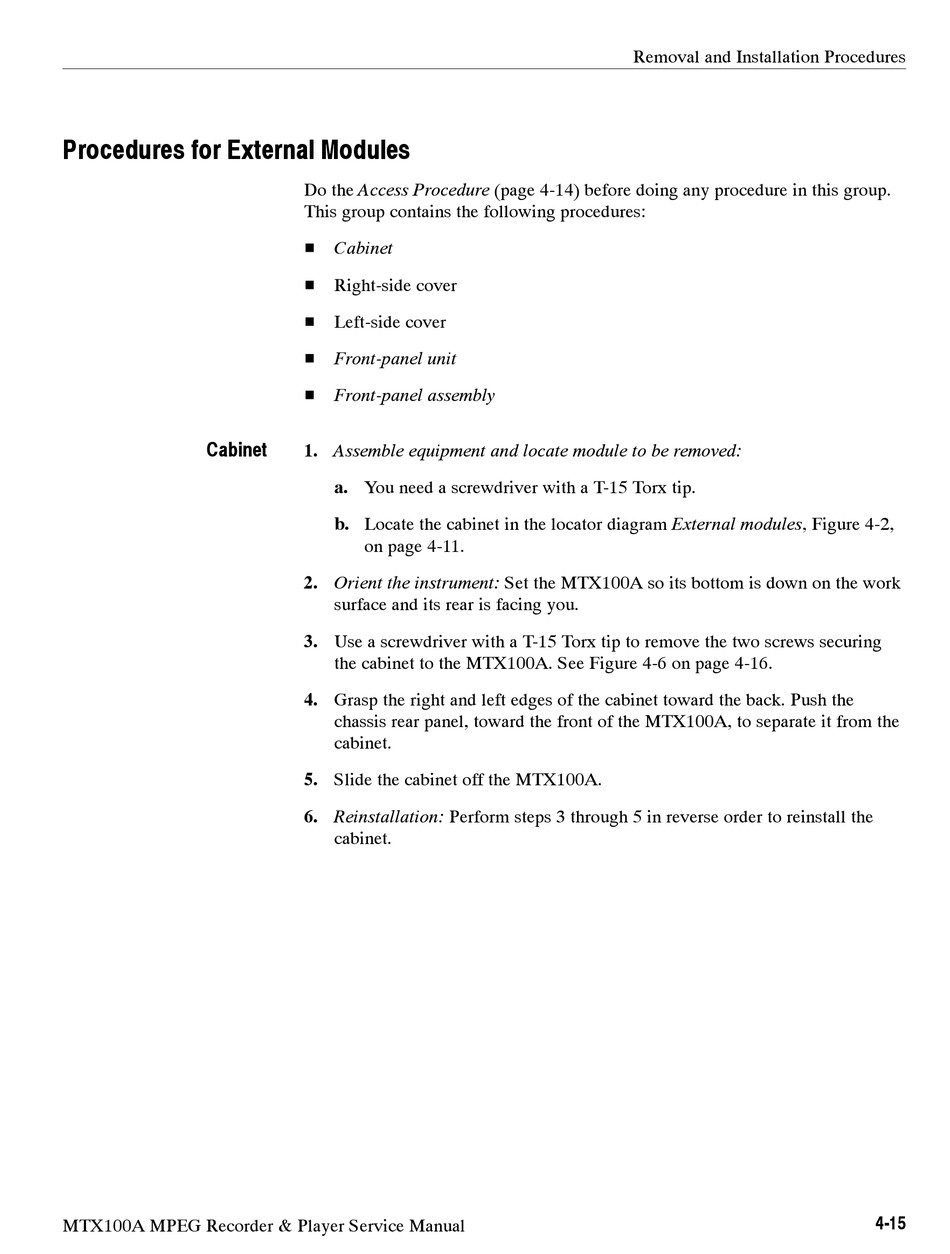

Procedures for External Modules

Cabinet
MTX100A MPEG Recorder & Player Service Manual
Do the Access Procedure (page 4-14) before doing any procedure in this group.
This group contains the following procedures:
H Cabinet
H Right-side cover
H Left-side cover
H Front-panel unit
H Front-panel assembly
1. Assemble equipment and locate module to be removed:
a. You need a screwdriver with a T-15 Torx tip.
b. Locate the cabinet in the locator diagram External modules, Figure 4-2,
on page 4-11.
2. Orient the instrument: Set the MTX100A so its bottom is down on the work
surface and its rear is facing you.
3. Use a screwdriver with a T-15 Torx tip to remove the two screws securing
the cabinet to the MTX100A. See Figure 4-6 on page 4-16.
4. Grasp the right and left edges of the cabinet toward the back. Push the
chassis rear panel, toward the front of the MTX100A, to separate it from the
cabinet.
5. Slide the cabinet off the MTX100A.
6. Reinstallation: Perform steps 3 through 5 in reverse order to reinstall the
cabinet.
