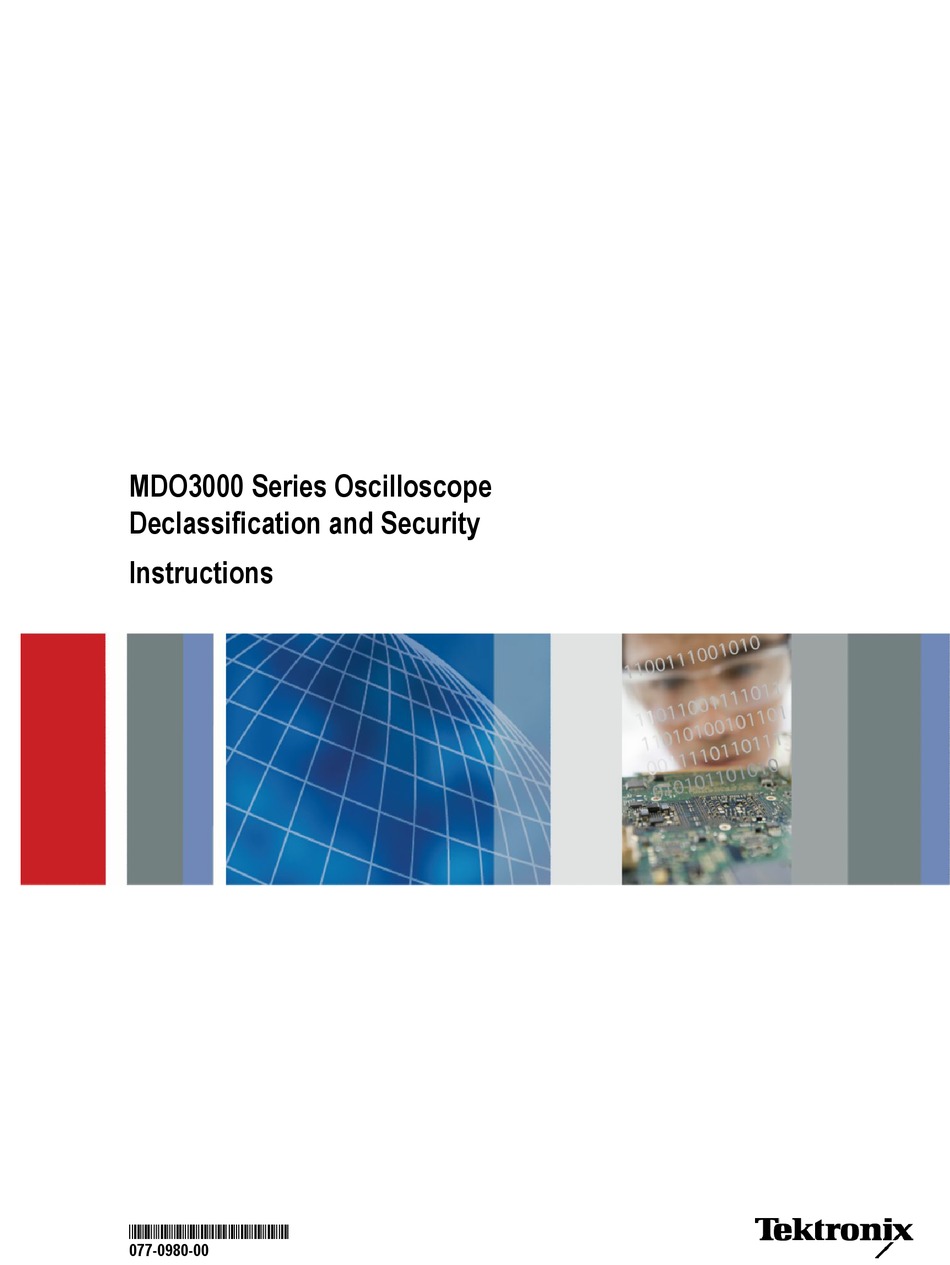

- Page 1 MDO3000 Series Oscilloscope Declassification and Security Instructions *P077098000* 077-0980-00...
- Page 3 MDO3000 Series Oscilloscope Declassification and Security Instructions www.tektronix.com 077-0980-00...
- Page 4 Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
-
Page 5: Table Of Contents
Enable the LAN port and set the LAN Ethernet settings ............. Built-in security features ™ When to use TekSecure ......................Use TekSecure to erase memory contents ..................Clear or sanitize a non-functional instrument Acquisition board ......................... USB flash drive ..........................Charges ............................MDO3000 Series Declassification and Security Instructions... - Page 6 Table of Contents MDO3000 Series Declassification and Security Instructions...
-
Page 7: Preface
Instrument code and calibration settings reside in nonvolatile flash memory. Instrument setups and reference waveforms may also be stored in flash memory or on USB drives connected to the instrument. If you have any questions, contact the Tektronix Technical Support Center at www.tektronix.com/support. Reference The procedures in this document are written to meet the requirements specified NISPOM, DoD 5220.22–M, Chapter 8... - Page 8 ■ contents. User-modifiable. User can write to the memory device during normal ■ instrument operation, using the instrument interface or remote control. Volatile memory. Data is lost when the instrument is powered off. ■ MDO3000 Series Declassification and Security Instructions...
- Page 9 Directly. Describes how data is modified. It means that the user can modify ■ the data. Indirectly. Describes how data is modified. It means that the instrument ■ system resources modify the data and that the user cannot modify the data. MDO3000 Series Declassification and Security Instructions...
- Page 10 Preface MDO3000 Series Declassification and Security Instructions...
-
Page 11: Memory Devices
SDRAM Type and size SDRAM 32 MB (standard) Function ASIC execution memory Type of user information User data and settings stored Backed up by battery? Method of modification indirectly Data input method Firmware operations MDO3000 Series Declassification and Security Instructions... - Page 12 Data input method Firmware operations Location IO board User accessible To clear Remove power from the instrument for at least 20 seconds. Process to sanitize Remove power from the instrument for at least 20 seconds. MDO3000 Series Declassification and Security Instructions...
-
Page 13: Nonvolatile Memory Devices
Type and size EEPROM 1 Kbit Function Holds signal generator calibration data Type of user information None stored Method of modification Indirectly Data input method Not applicable Location IO board User accessible Not applicable MDO3000 Series Declassification and Security Instructions... -
Page 14: Media And Data Export Devices
Files can be deleted or over-written on the oscilloscope or on a PC. USB flash drive can be removed or destroyed. User accessible Process to disable The USB host port cannot be disabled with MDO3000 Series instruments without the MDO3SEC option. If your instrument has the MDO3SEC option, perform the procedure Use the MDO3SEC option to disable all IO ports to disable the two USB host ports. - Page 15 MDO3SEC option) Process to disable (for Perform the procedure Disable the LAN port and clear the LAN Ethernet settings to disable the instruments without the Ethernet port. MDO3SEC option) MDO3000 Series Declassification and Security Instructions...
- Page 16 Memory devices Media and data export devices (cont.) MDO3000 Series Declassification and Security Instructions...
-
Page 17: Clear And Sanitize Procedures
There is no need for a post- sanitization or clear procedure for the MDO3000 Series of instruments. The instrument can begin normal use and function immediately after the sanitizing or clearing procedures. -
Page 18: Disable The Lan Port And Clear The Lan Ethernet Settings
17. Push the Ethernet and LXI lower-bezel button. 18. Push the –more- 1 of 2 side bezel button to get to the second page of side bezel menus. 19. Push the Change Names side-bezel button. MDO3000 Series Declassification and Security Instructions... -
Page 19: Enable The Usb Device Port
3. Push the Utility Page lower-bezel button and use the Multipurpose a knob to select I/O. 4. Push the USB lower-bezel button. 5. Push the Connect to Computer or Connect to PictBridge Printer side- bezel button to enable the USB device port. MDO3000 Series Declassification and Security Instructions... -
Page 20: Use The Mdo3Sec Option To Enable The Io Ports
10. Enter the relevant field data using the lower bezel buttons and Multipurpose a knob. 11. Push the ↓ arrow side-bezel button to position the cursor on the Subnet Mask field. 12. Enter the relevant field data using the lower bezel buttons and Multipurpose a knob. MDO3000 Series Declassification and Security Instructions... - Page 21 25. Push the OK Accept side-bezel button. 26. Push the Change e*Scope and LXI Password side-bezel button. 27. Enter the relevant field data using the lower bezel buttons and Multipurpose a knob. 28. Push the OK Accept side-bezel button. MDO3000 Series Declassification and Security Instructions...
- Page 22 Clear and sanitize procedures MDO3000 Series Declassification and Security Instructions...
-
Page 23: Built-In Security Features
The MDO3000 Series oscilloscopes have two USB host ports: one on the front panel and one on the rear panel. Any USB flash devices can be removed and stored or destroyed. -
Page 24: Use Teksecure To Erase Memory Contents
6. Power off the oscilloscope, and then power it back on to complete the process. To reset the instrument RAM, do the following: 1. Power off the instrument for at least 20 seconds. 2. Power on the instrument. MDO3000 Series Declassification and Security Instructions... -
Page 25: Clear Or Sanitize A Non-Functional Instrument
USB flash drive Remove the USB flash drive and return the instrument to Tektronix for repair. After removing the USB flash drive, refer to your company's internal policies regarding handling or disposal of the flash drive. - Page 26 Clear or sanitize a non-functional instrument MDO3000 Series Declassification and Security Instructions...
