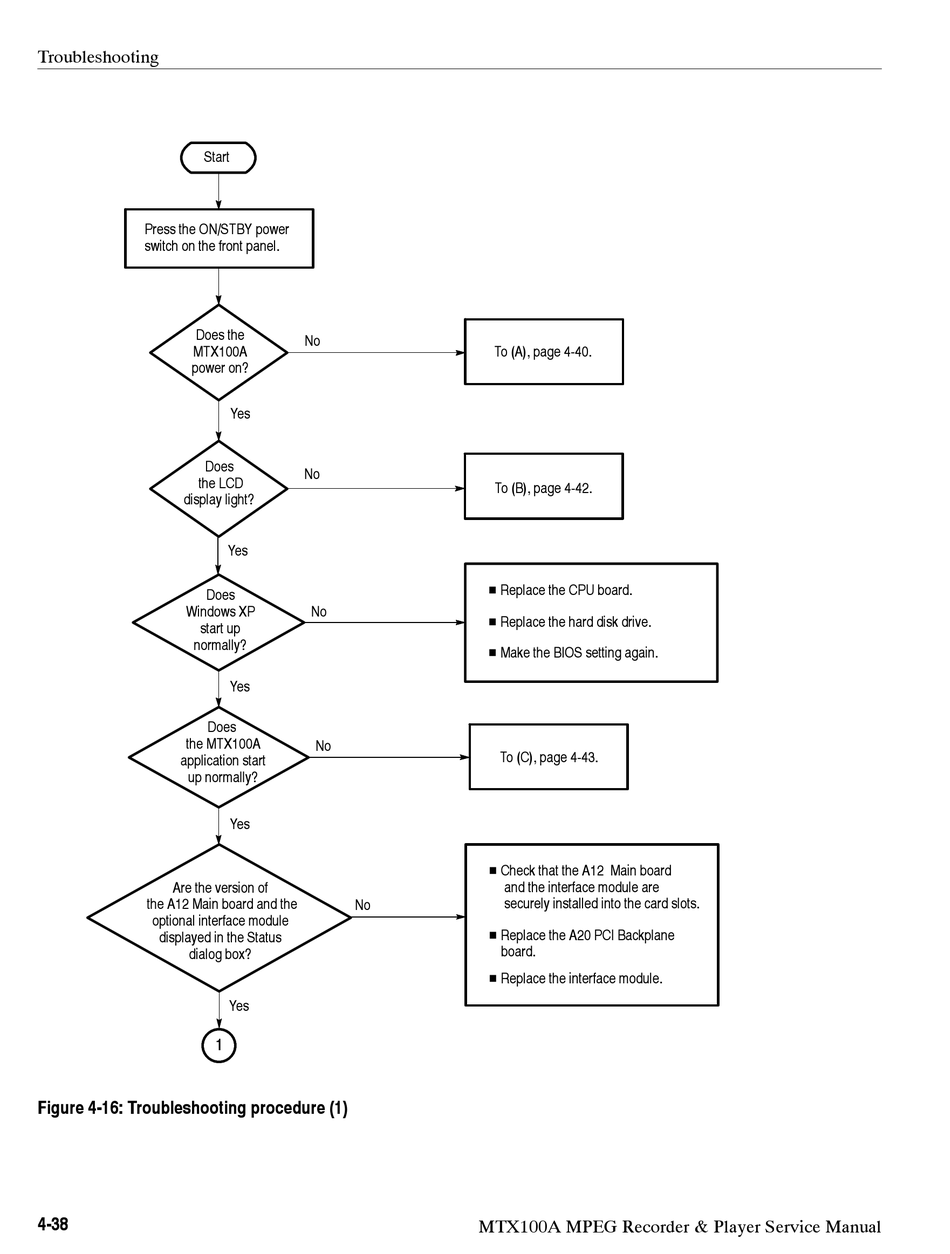

Figure 4-16: Troubleshooting Procedure (1) - Tektronix MTX100A Service Manual

Troubleshooting
Start
Press the ON/STBY power
switch on the front panel.
Does the
MTX100A
power on?
Does
the LCD
display light?
Does
Windows XP
start up
normally?
Does
the MTX100A
application start
up normally?
Are the version of
the A12 Main board and the
optional interface module
displayed in the Status
dialog box?
1

Figure 4-16: Troubleshooting procedure (1)

4-38
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
To (A), page 4-40.
To (B), page 4-42.
H Replace the CPU board.
H Replace the hard disk drive.
H Make the BIOS setting again.
To (C), page 4-43.
H Check that the A12 Main board
and the interface module are
securely installed into the card slots.
H Replace the A20 PCI Backplane
board.
H Replace the interface module.
MTX100A MPEG Recorder & Player Service Manual
