Performance Verification
MTX100A Option 07 rear panel

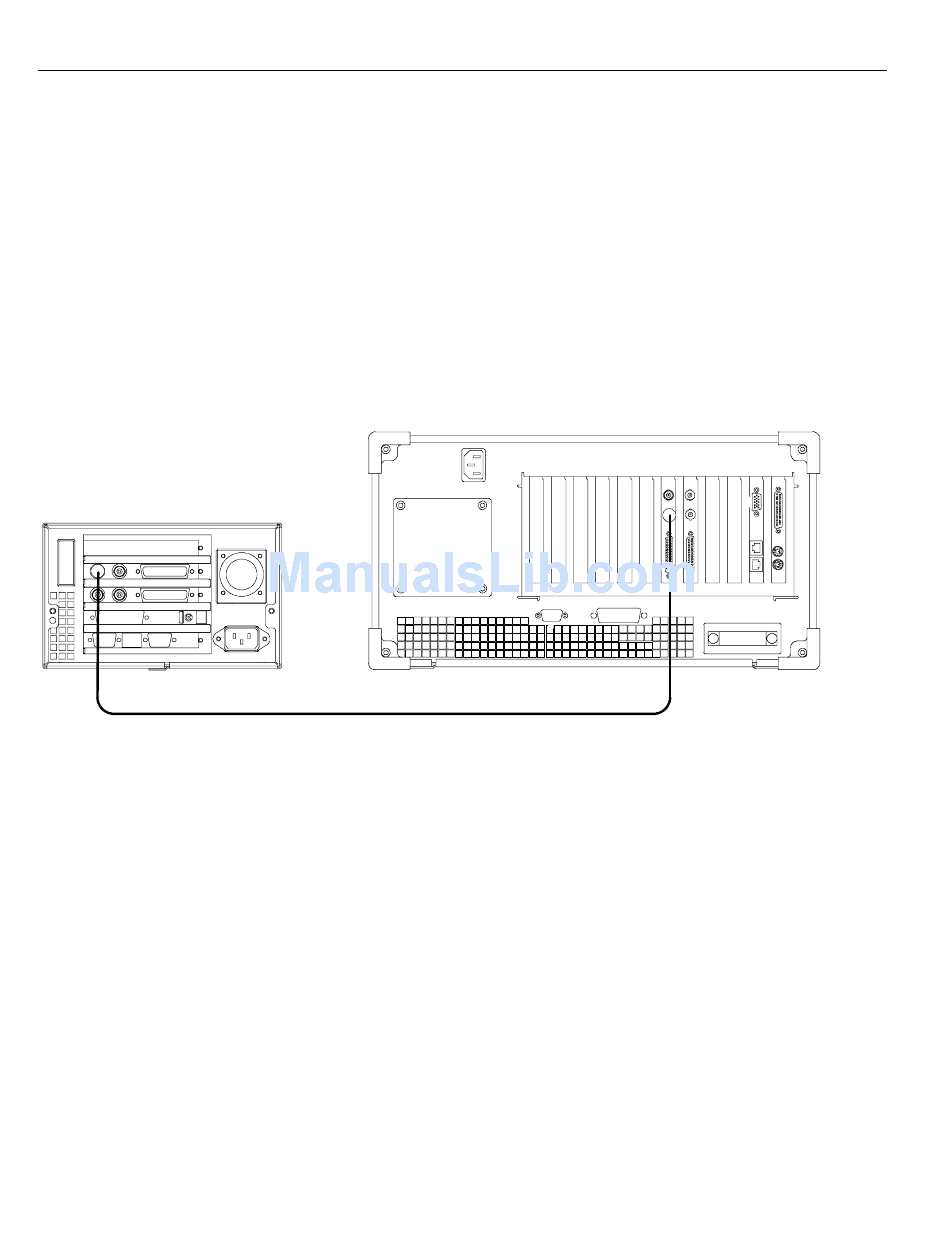

Figure 3-23: Equipment connection for verifying the 8VSB play operation
3-46
37. Press the STOP button on the MTX100A Option 07 to stop the stream
output.
38. Disconnect the 75 Ω BNC cable from the MTX100A Option 07 and MPEG
analyzer.
Checking the 8VSB Play Operation.
39. Use the 75 Ω BNC cable to connect the SMPTE310M/ASI Output connector
on the MTX100A Option 07 to the ASI/SMPTE In connector on the MPEG
analyzer. See Figure 3-23.
MPEG analyzer rear panel (MTS430)
75 Ω BNC cable
40. Start the MPEG Player application on the MPEG analyzer.
41. Set the application to the Record mode.
42. Set the MPEG analyzer settings as indicated bellow:
Record menu
Source . . . . . . . . .
Target . . . . . . . . .
SPI/ASI/310M menu
Input Port . . . . . .
BNC Port . . . . . .
File menu
Save Mode . . . . .
Save . . . . . . . . . . .
SPI/ASI/310M
RAM, Record Size: 100 MB
BNC
310M
Over write
E:\MTXRTX_Test streams\Record_Files\
S310M.trp
MTX100A MPEG Recorder & Player Service Manual
