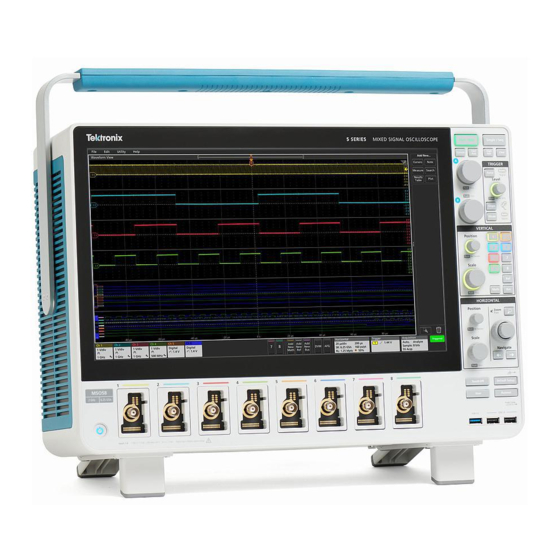

5 Series and 6 Series B Mixed Signal Oscilloscopes
Declassification and Security Instructions
MSO64B, MSO66B, MSO68B, MSO54*, MSO56*, MSO58*
Warning: The servicing instructions are for use by qualified personnel only. To avoid personal injury, do not perform any servicing unless you are qualified
to do so. Refer to all safety summaries prior to performing service.
Supports Product Firmware V1.28 and above.
*5 Series MSO instruments with serial numbers above B020100 or C040100.
Register now!
Click the following link to protect your product.
www.tek.com/register
*P077169401*
077-1694-01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tektronix 5 Series
Summary of Contents for Tektronix 5 Series

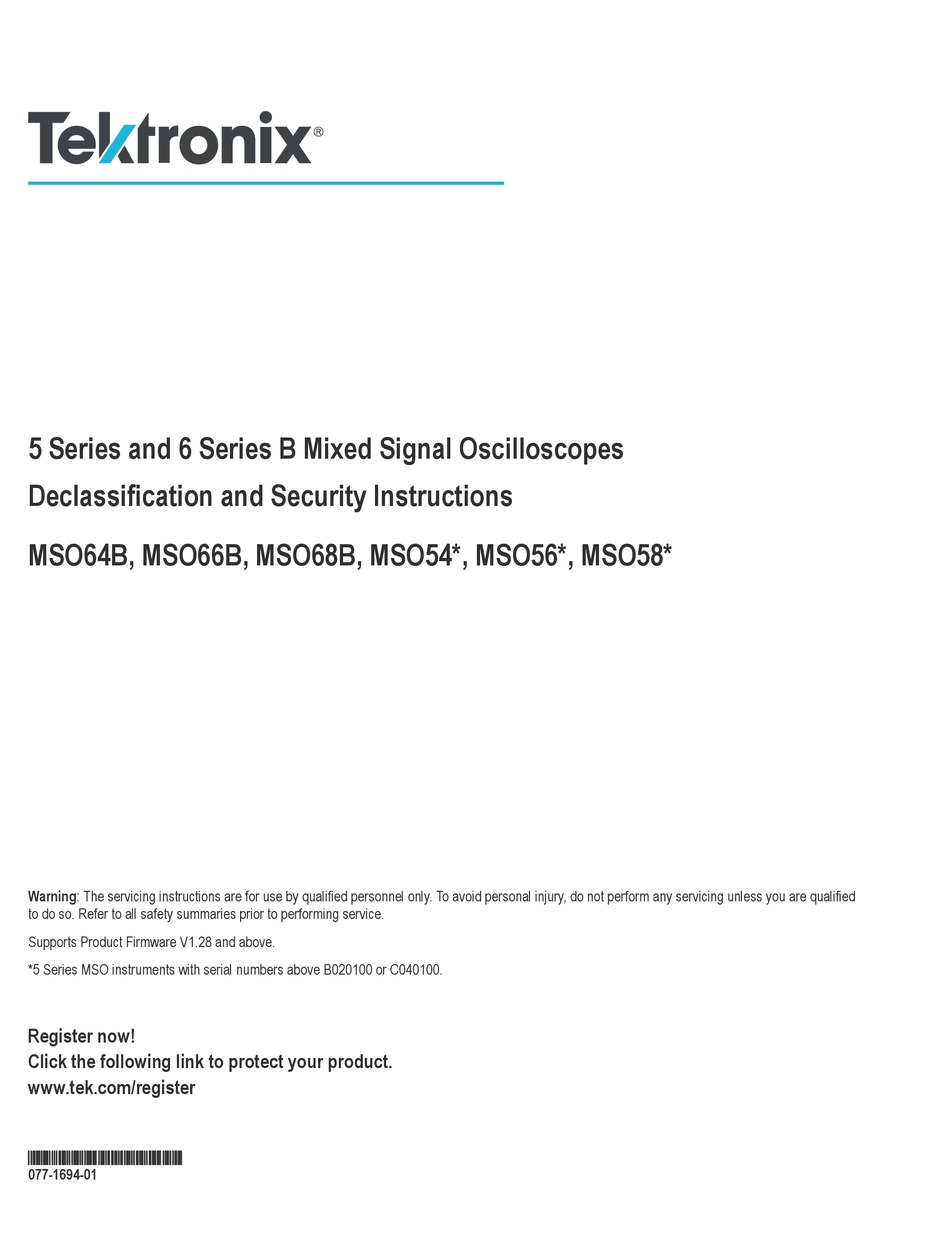

- Page 1 Warning: The servicing instructions are for use by qualified personnel only. To avoid personal injury, do not perform any servicing unless you are qualified to do so. Refer to all safety summaries prior to performing service. Supports Product Firmware V1.28 and above. *5 Series MSO instruments with serial numbers above B020100 or C040100. Register now! Click the following link to protect your product.
- Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specifications and price change privileges reserved.
-
Page 3: Table Of Contents
Troubleshooting...................................15 How to sanitize a non-functional instrument........................15 Repair charges..................................15 Change log....................................16 5 Series and 6 Series B MSO Declassification and Security Instructions document change log........16 5 Series and 6 Series B Mixed Signal Oscilloscopes Declassification and Security Instructions... -
Page 4: List Of Tables
List of Tables List of Tables Table 1: Volatile memory................................7 Table 2: Non-user-accessible memory............................8 Table 3: Media and Data export devices ............................ 12 5 Series and 6 Series B Mixed Signal Oscilloscopes Declassification and Security Instructions... -
Page 5: Preface
The following Tektronix products are covered by this document. 6 Series B MSO Instruments: • MSO64B • MSO66B • MSO68B 5 Series MSO Instruments with a serial number of B020000 and above or C040000 and above: • MSO54 • MSO56 • MSO58 Terms The following terms may be used in this document: •... - Page 6 Instrument Declassification. A term that refers to procedures that must be undertaken before an instrument can be removed from a secure environment. Declassification procedures include memory sanitization and memory removal, and sometimes both. 5 Series and 6 Series B Mixed Signal Oscilloscopes Declassification and Security Instructions...
-
Page 7: Clear And Sanitize Procedure
≥512 MB data operations instrument for instrument a minimum of for a 30 seconds. minimum of 30 seconds. Table continued… 5 Series and 6 Series B Mixed Signal Oscilloscopes Declassification and Security Instructions... - Page 8 12.) on page 12.) Clearing Sanitizing entire entire memory memory device would device would disable disable instrument instrument functionality. functionality. Table continued… 5 Series and 6 Series B Mixed Signal Oscilloscopes Declassification and Security Instructions...
- Page 9 ≥16 Mbit FPGA contain user contain user Two pieces configuration data or data or settings. settings. Clearing Sanitizing would disable would disable instrument instrument functionality. functionality. Table continued… 5 Series and 6 Series B Mixed Signal Oscilloscopes Declassification and Security Instructions...
- Page 10 Clearing Sanitizing would disable would disable instrument instrument functionality. functionality. Table continued… 5 Series and 6 Series B Mixed Signal Oscilloscopes Declassification and Security Instructions...
- Page 11 ≥0.33 Mbit configuration processor contain user contain user carrier board data or data or settings. settings. Clearing Sanitizing would disable would disable instrument instrument functionality. functionality. 5 Series and 6 Series B Mixed Signal Oscilloscopes Declassification and Security Instructions...
-
Page 12: Media And Data Export Devices
Password protection to enable/disable firmware upgrades or downgrades • There is also a special BIOS installed that includes a default password ("Tektronix"). Additionally when the CMOS reset is pressed the BIOS password is reset to "Tektronix" instead of being removed. -
Page 13: Clearing Or Sanitizing Ssds
Your organization must make this decision based on the fact that the other partitions on the SSD retain their data and files after running SQE Tests TekSecure. 5 Series and 6 Series B Mixed Signal Oscilloscopes Declassification and Security Instructions... -
Page 14: Sanitizing The Ssd
Clear and sanitize procedure Sanitizing the SSD The instrument does not have any function to sanitize the entire SSD and retain instrument operation. 5 Series and 6 Series B Mixed Signal Oscilloscopes Declassification and Security Instructions... -
Page 15: Troubleshooting
2. Follow your company's internal policies regarding handling or disposal of the these boards. 3. Reassemble the oscilloscope and return it to Tektronix. New boards will be installed. The oscilloscope will be calibrated and returned. Note: Replacement of any missing or damaged hardware will be charged according to the rate at the time of replacement. -
Page 16: Change Log
Change log Change log 5 Series and 6 Series B MSO Declassification and Security Instructions document change log Document part Revision date Change description number 5 Series and 6 Series B Mixed Signal Oscilloscopes Declassification and Security Instructions...
