MTX100A Option 05 rear panel

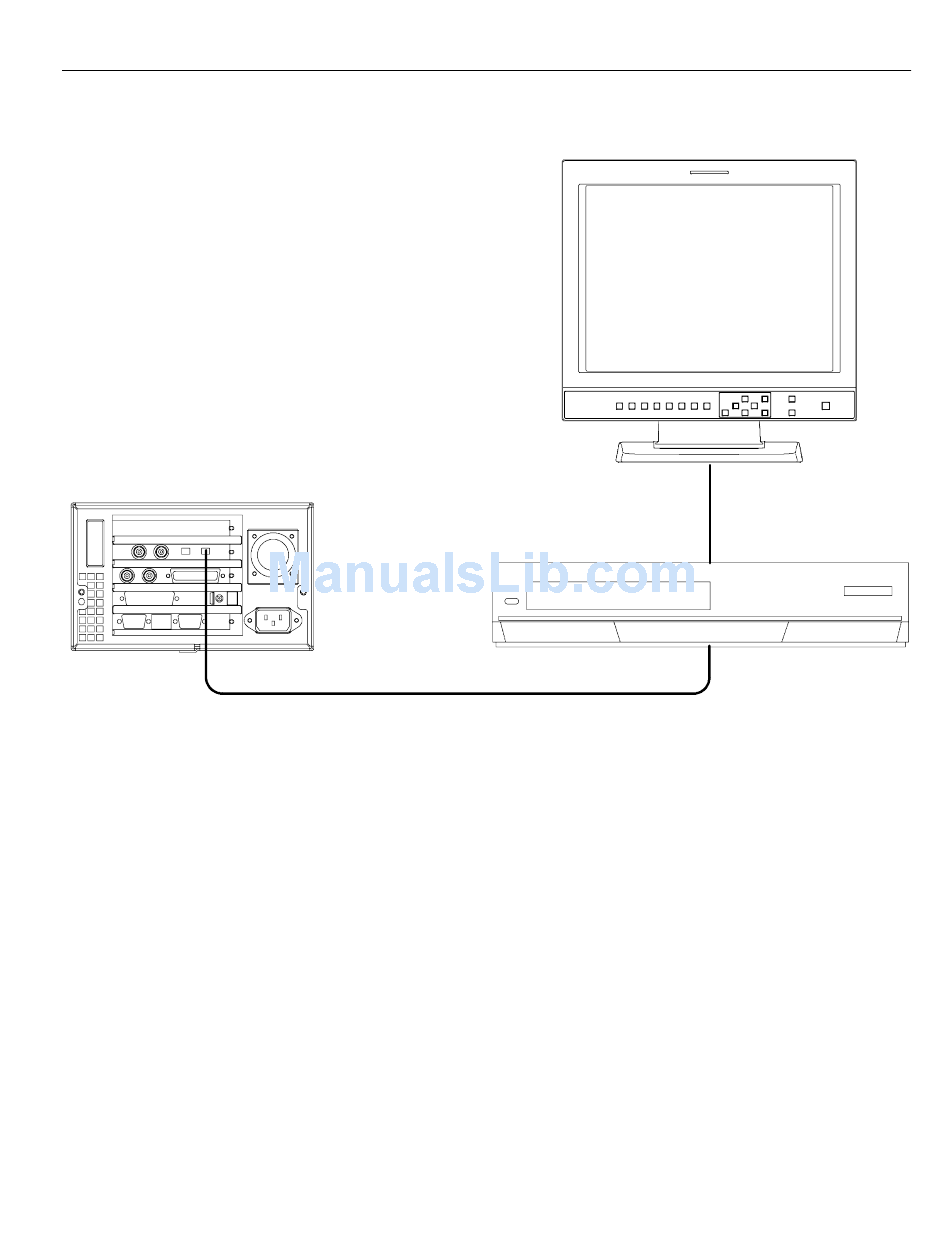

Figure 3-18: Equipment connection for verifying the IEEE1394 output signal

MTX100A MPEG Recorder & Player Service Manual
IEEE1394 cable
3. Make the following i.LINK setup on the D-VHS digital recorder:
a. Press the MENU button on the remote controller that is provided with
the D-VHS digital recorder to display the Main Menu screen.
b. Press the left or right arrow button on the remote controller to move the
arrow to INITIAL SET UP, and then press the OK button.
c. Press the left or right arrow button to move the arrow to OTHER, and
then press the OK button.
d. Press the up or down arrow button to move the arrow to LINK, and then
press left or right arrow button to set to AUTO.
e. Press the MENU button to return to Main Menu screen.
4. Press the PLAY button on the MTX100A Option 05 to display the Play
screen.
Video monitor (LMD-1420)
D-VHS digital recorder(HM-DH5U)
Performance Verification
75 Ω BNC cable and
RCA(Ma)-to-BNC(Fe) adopter
3-37
