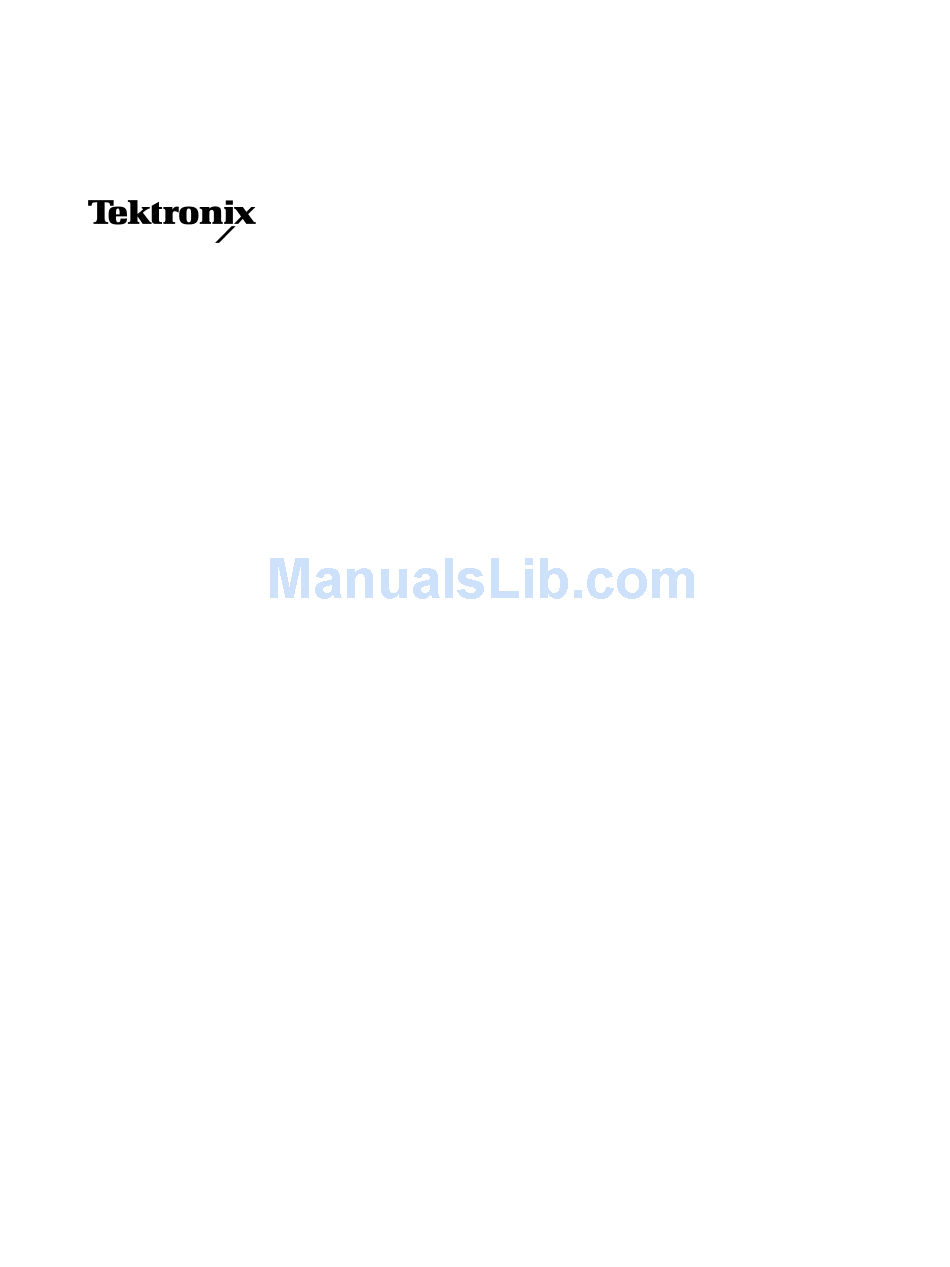

Programmer Manual
MTS400 Series
MPEG Test System
071-1725-02
This document applies to MTS400 Series system
version 1.4 and above.
www.tektronix.com

Advertisement

Table of Contents
loading

Related Manuals for Tektronix MTS400 Series

Summary of Contents for Tektronix MTS400 Series

  • Page 1 Programmer Manual MTS400 Series MPEG Test System 071-1725-02 This document applies to MTS400 Series system version 1.4 and above. www.tektronix.com...
  • Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes that in all previously published material.
  • Page 3 Warranty 2 Tektronix warrants that this product will be free from defects in materials and workmanship for a period of one (1) year from the date of shipment. If any such product proves defective during this warranty period, Tektronix, at its option, either will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.
  • Page 4 In order to obtain service under this warranty, Customer must notify Tektronix of the defect before the expiration of the warranty period. If Tektronix is unable to provide a replacement that is free from defects in materials and workmanship within a reasonable time thereafter, Customer may terminate the license for this software product and return this software product and any associated materials for credit or refund.

  • Page 5: Table Of Contents

    ........... . 3−5 Appendix A: Default Settings Index MTS400 Series MPEG Test System Programmer Manual...
  • Page 6 ......2−5 MTS400 Series MPEG Test System Programmer Manual...
  • Page 7 ....... . . A−1 MTS400 Series MPEG Test System Programmer Manual...
  • Page 8 Table of Contents MTS400 Series MPEG Test System Programmer Manual...
  • Page 9 The manual is organized into the following sections: H Getting Started Provides instructions for connecting the MTS400 Series System to a single PC or a network and setting the network parameters for the 100/10 BASE-T port, as well as network interface specifications for the instrument.

  • Page 10: Table I: Related Documentation

    Preface Related Documentation Table i lists the other documentation available for the MTS400 Series System. Additional documentation, such as Read Me files, may be included on the installation disks. Table i: Related documentation Title Part number Description MTS400 Series Getting Started...

  • Page 11: Figure 1−1: Pin Connections For A Crossover Ethernet Cable

    Connecting to a Network The MTS400 Series System has a 100/10 BASE-T port on the rear panel that allows you to upload and download stream files. This section provides instructions for connecting the MTS400 Series System to a single PC or a network and setting the network parameters for the 100/10 BASE-T port.

  • Page 12: Figure 1−2: Network And Dial-Up Connections Window

    Getting Started You can set the network parameters for the MTS400 Series System using the Setting Ethernet Network Control Panel of Windows XP. Parameters NOTE. The following procedure assumes that you are familiar with the basics of using the Windows XP operating system. If necessary, review the Windows XP documentation.

  • Page 13: Figure 1−3: Local Area Connection Status Dialog Box

    Status dialog box appears as shown in Figure 1−3. Figure 1−3: Local Area Connection Status dialog box 6. Click the Properties button. The Local Area Connection Properties dialog box appears as shown in Figure 1−4. MTS400 Series MPEG Test System Programmer Manual 1−3...

  • Page 14: Figure 1−4: Local Area Connection Properties Dialog Box

    Figure 1−4: Local Area Connection Properties dialog box 7. In the network component field, click Internet Protocol (TCP/IP). 8. Click the Properties button. The Internet Protocol (TCP/IP) Properties dialog box appears as shown in Figure 1−5. MTS400 Series MPEG Test System Programmer Manual 1−4...

  • Page 15: Figure 1−5: Internet Protocol (Tcp/Ip) Properties Dialog Box

    NOTE. Under some network environments, the MTS400 may not be able to obtain the IP address automatically from a DHCP server. In this case, you need to enter the appropriate address value in each submenu item. MTS400 Series MPEG Test System Programmer Manual 1−5...

  • Page 16: Network Interface Specifications

    3. Verify the Ethernet connection by using a ping command from the PC. Network Interface Specifications The MTS400 Series System supports remote control using the Ethernet interface. This section describes the network interface specifications for the instrument. The TCP/IP is used as the network protocol. The commands can be sent from the application program through the socket interface of the TCP/IP.

  • Page 17: Checking Remote Command Operation

    6. Select Remote System from the Connect pull-down menu. The Connect dialog box appears. 7. In the Host Name field, enter the IP address of the MTS400 Series System. 8. In the Port field, enter the port number set by the Communication dialog box or the :SYSTem:COMMunicate:SOCKet:PORT command (the default value is 49152).
  • Page 18 Getting Started MTS400 Series MPEG Test System Programmer Manual 1−8...

  • Page 19: Figure 2−1: Example Of Scpi Subsystem Hierarchy Tree

    This section contains information on the Standard Commands for Programmable Instruments (SCPI) and IEEE 488.2 Common Commands you can use to program your MTS400 Series Player application. The information is organized in the following subsections: Syntax, Functional Command Groups, and Remote Commands.

  • Page 20: Table 2−1: Parameter Types Used In Syntax Descriptions

    The parameters are enclosed in brackets, such as <pattern>. The parameter type is listed after the parameter and is enclosed in parentheses, for example, (discrete). Some parameter types are defined specifically for the MTS400 Series Player application command set and some are defined by ANSI IEEE 488.2-1987 (see Table 2−1).

  • Page 21: Figure 2−2: Example Of Abbreviating A Command

    Long form of a RECord:TARGet:TRIGger:POSition 50 command Minimum information needed for accepted short form REC:TARG:TRIG:POS 50 Accepted short form of a command and parameter Figure 2−2: Example of abbreviating a command MTS400 Series MPEG Test System Programmer Manual 2−3...

  • Page 22: Figure 2−3: Example Of Chaining Commands And Queries

    First command Second command First query Second query 30;50 The response from this chained message might be Response from first query Response from second query Figure 2−3: Example of chaining commands and queries MTS400 Series MPEG Test System Programmer Manual 2−4...

  • Page 23: Figure 2−4: Example Of Omitting Root And Lower-Level Nodes In A Chained Message

    H You can use upper case, lower case, or a mixture of both cases for all commands, queries, and parameters. RECORD:TARGET:TRIGGER:POSITION 50 is the same as record::position target:trigger50 RECORD:target:trigger:POSITION 50 NOTE. Literal strings (quoted) are case sensitive. For example: file names. MTS400 Series MPEG Test System Programmer Manual 2−5...

  • Page 24: Table 2−2: Bnf Symbols And Meanings

    ANSI/IEEE Standard 488.2 defines the codes, formats, protocols, and usage of Description common commands and queries used on the interface between the controller and the instruments. The MTS400 Series Player application complies with this standard. The syntax for an IEEE 488.2 common command is an asterisk (*) followed by a Command and Query command and, optionally, a space and parameter value.
  • Page 25 The Player application can be controlled remotely through the 1000/100/10 BASE-T port on the rear panel. Refer to Connecting to a Network on page 1−1 for detailed information about how to connect and set up for remote operation. MTS400 Series MPEG Test System Programmer Manual 2−7...

  • Page 26: Common Commands

    Returns the contents of SESR (Standard Event Status Register) used in the status and events reporting system. *IDN? Returns the ID information of the instrument. The ID information contains manufacturer, model, firmware version, hardware version, and FPGA code version. MTS400 Series MPEG Test System Programmer Manual 2−8...
  • Page 27 SBR is read as a MSS (Master Status Summary) bit. *TRG Generates a trigger event. *TST? Performs the self test and returns its result. The MTS400 Series System always returns 1. *WAI Wait-to-continue command. This command is not necessary since the MTS400 Series System handles commands sequentially.

  • Page 28: Display Commands

    Use these commands to perform file related operations such as changing and moving a directory, and loading and saving a preset. Command Tree :MMEMory :CATalog? [<directory_path>] :CDIRectory [:DATA] <directory_path> :STATe <directory_path> :LOAD :STATe <preset_name> :MDIRectory <directory_path> :STORe :STATe <preset_name> MTS400 Series MPEG Test System Programmer Manual 2−10...
  • Page 29 :MMEMory:MDIRectory <directory_path> Creates a subdirectory. The command is invalid if a directory with the specified name already exists. :MMEMory:STORe:STATe <preset_name> Saves the instrument settings with the specified preset name. MTS400 Series MPEG Test System Programmer Manual 2−11...

  • Page 30: Play Commands

    :FRAMe ON|OFF :PACKet 188|204|208|NONTs :PCR :INITial <numeric_value>,<numeric_value> :INACcuracy NONE|SINe|SQUare|TRIangle|PULSe|SAW| RANDom|OFFSet[,,numeric_value>, <numeric_value>[,<numeric_value> [,<numeric_value>[,<numeric_value>]]] :S192F :PARTialts ON|OFF :SOURce RAM|DISK :SPIOutput ON|OFF :SSPOsition :INITial :ENABle ON|OFF [:POSition] <numeric_value> :TIME <string> [:POSition] <numeric_value>,<numeric_value> :TIME <string>,<string> :STANdard? MTS400 Series MPEG Test System Programmer Manual 2−12...
  • Page 31 :PLAY:CLOCk:RATE command setting will set to the same value. The default value is 56.61. :PLAY:CLOCk:DEFault:RATE? Returns the default clock rate that is automatically set when the selected stream file was downloaded. MTS400 Series MPEG Test System Programmer Manual 2−13...
  • Page 32 Sets the clock rate for the stream output. You can set the rate from 0.001 MHz to 250.0 MHz. The default value is 56.61. :PLAY:CLOCk:RATE? Returns the current clock rate for the stream output. MTS400 Series MPEG Test System Programmer Manual 2−14...
  • Page 33 Sets whether or not the selected stream is output using looping method. When you set it to ON, the stream is continuously output. The default value is ON. :PLAY:LOOP? Returns the current output loop mode status. MTS400 Series MPEG Test System Programmer Manual 2−15...
  • Page 34 PULSe. The ranges of each argument are as follows: PID: 0 to 8191 Amplitude: 0 to 135000000 Period: 5 to 3000 Pulse width: 1 to (period −1) MTS400 Series MPEG Test System Programmer Manual 2−16...
  • Page 35 (the number of super frames for M-TMCC file, or the number of bytes for a Non-TS file). The setting range depends on the :PLAY:SSPOsition[:POSition] command settings. The default value is 0. MTS400 Series MPEG Test System Programmer Manual 2−17...
  • Page 36 Returns the standard of the loaded stream file. The available responses are MPEG, ARIB, ATSC, DVB, NONTs, MTMCc, STMCc, or ISDBT. The MTMCc, STMCc, and ISDBT standards are checked only when the :SYSTem:STANdard command is set to ARIB. MTS400 Series MPEG Test System Programmer Manual 2−18...
  • Page 37 255 bytes. This value needs to be set equal to or greater than the value in the :PLAY:SYNC:DVALid:WIDTh command. The default value is 188. :PLAY:SYNC:PSYNc:INTerval? Returns the current status and output period of the PSYNC signal. MTS400 Series MPEG Test System Programmer Manual 2−19...
  • Page 38 :PLAY:UPDAte command is set to ON. You can use 1 or 0 instead of ON or OFF. The default value is ON. :PLAY:UPDAte:ITEM:CC? Returns whether to update continuity_counter values when the :PLAY:UPDAte command is set to ON. MTS400 Series MPEG Test System Programmer Manual 2−20...
  • Page 39 :PLAY:UPDAte:ITEM:TIMEpacket ON|OFF Sets whether to update TDT/TOT/STT values when the :PLAY:UP- DAte command is set to ON. You can use 1 or 0 instead of ON or OFF. The default value is ON. MTS400 Series MPEG Test System Programmer Manual 2−21...

  • Page 40: Record Commands

    RISE|FALL|OFF :PACKet? :SOURce SPI|ASI|UNIVersal|BNCserial|DHEI| I1394I|S310M|STANdard|OPTion :STANdard? :STARt :STOP :STORe :FILE <file_name> :MODE NEWfile|OVERwrite :TARGet :IGNOredvalid ON|OFF :SIZE <numeric_value> :TIME <string> :TRIGger :CONTinuous ON|OFF :LIMit <numeric_value> :POSition <numeric_value> :TYPE RAM|DISK :UNLImit ON|OFF :PROGress? MTS400 Series MPEG Test System Programmer Manual 2−22...
  • Page 41 Sets the interface used to capture a stream data. The choices are SPI, ASI, UNIVersal, BNCserial, DHEI, I1394I (IEEE1394), S310M (SMPTE310M), STANdard (same as SPI), and OPTion (optional interface currently installed). The default value is SPI. MTS400 Series MPEG Test System Programmer Manual 2−23...
  • Page 42 ON, the instrument ignores the DVALID signal, and the stream data is acquired according to the internal clock signal. You can use 1 or 0 instead of ON or OFF. The default value is OFF. MTS400 Series MPEG Test System Programmer Manual 2−24...
  • Page 43 Returns the number of files to stop Continuous Recording. :RECord:TARGet:TRIGger:POSition <numeric_value> Sets the trigger position used to record the input stream. You can set the trigger position from 0% to 100%. The default value is 0%. MTS400 Series MPEG Test System Programmer Manual 2−25...

  • Page 44: System Commands

    Use these commands to set or query the system related functions. Command Tree :SYSTem :COMMunicate :SOCKet :PORT <numeric_value> :RXTERM CR|LF :TXTERM CR|LF|CRLF|LFCR :ERRor[:NEXT]? :KLOCk[:STATe] ON|OFF :MODE PLAY|RECord :OPTions? :PRESet :STANdard MPEG|ARIB|ATSC|DVB :STATus? MTS400 Series MPEG Test System Programmer Manual 2−26...
  • Page 45 Locks or unlocks the front-panel buttons and mouse operation. You can use 1 or 0 instead of ON or OFF. The default value is OFF. :SYSTem:KLOCk[:STATe]? Returns the current status of lock function. MTS400 Series MPEG Test System Programmer Manual 2−27...
  • Page 46 Returns the current operation status of the instrument. The available responses are: 0: the instrument stops any operations 1: the instrument is outputing a data 2: the instrument is acquiring a data 3: the instrument is recording a data MTS400 Series MPEG Test System Programmer Manual 2−28...

  • Page 47: Optional Commands

    Selects play loop throughout. The default Value is OFF. :PLAY:OP07AS:PORT: THROughout? Returns the current loop throughout status. :RECORD:OP07AS:INPUTPORT BNC|SPI Selects the recording input port. The default value is BNC. :RECORD:OP07AS:INPUTPORT? Returns the current recording input port. MTS400 Series MPEG Test System Programmer Manual 2−29...
  • Page 48 Enables the optional card when set to ON. You can use 1 or 0 instead of ON or OFF. :PLAY:OPCArdenbl? Returns whether the optional card is enabled. :PLAY:IP:PARAmeters:DEFAult Resets the configuration settings to the default values. MTS400 Series MPEG Test System Programmer Manual 2−30...
  • Page 49 Returns the current packet size mode. :PLAY:IP:PARAmeters:IPPKtsize <numeric_value> Sets the size of the IP packet. You can set the size from 1 bytes to 16,128 bytes. :PLAY:IP:PARAmeters:IPPKtsize? Returns the current size of the IP packet. MTS400 Series MPEG Test System Programmer Manual 2−31...
  • Page 50 Returns the current percentage of progress during the IP playout. Protocol Settings :PLAY:IP:PARAmeters:PRTOcol:SETTings:MODE UDP|RTP Sets the protocol mode for IP playout. The choices are UDP and RTP. The default mode is RTP. :PLAY:IP:PARAmeters:PRTOcol:SETTings:MODE? Returns the current protocol mode for IP playout. MTS400 Series MPEG Test System Programmer Manual 2−32...
  • Page 51 Enables the VLAN settings. When set to on, displays the VLAN parameters in the Advanced settings screen. You can use 1 or 0 instead of ON or OFF. The default value is OFF. :PLAY:IP:PARAmeters:PRTOcol:SETTings:VLAN? Returns whether the VLAN settings is enabled. MTS400 Series MPEG Test System Programmer Manual 2−33...
  • Page 52 Sets the TPID value of the VLAN in the Ethernet layer. You can set the values from 0 to FFFF. The default value is 0X8100. :PLAY:IP:PARAmeters:PRTOcol:CUSTomize:HEADers:ETHEr- net:VLAN:TPID? Returns the current TPID value of the VLAN. MTS400 Series MPEG Test System Programmer Manual 2−34...
  • Page 53 Returns the current type of service. :PLAY:IP:PARAmeters:PRTOcol:CUSTomize:HEADers:IP:PROTocol <numeric_value> Sets the value of the protocol field in the IP layer. You can set the values from 0 to 255. The default value is 17 which corresponds to UDP. MTS400 Series MPEG Test System Programmer Manual 2−35...
  • Page 54 Sets the source port value of the UDP layer. You can set the value from 0 to 65535. The default value is 16384. :PLAY:IP:PARAmeters:PRTOcol:CUSTomize:HEADers:UDP:SRCPort? Returns the current source port value of the UDP layer. :PLAY:IP:PARAmeters:PRTOcol:CUSTomize:HEADers:UDP:DSTPort <numeric_value> MTS400 Series MPEG Test System Programmer Manual 2−36...
  • Page 55 Returns the current value of the payload type for the RTP layer. Protocol Settings−Stream Replication Settings :PLAY:IP:PARAmeters:REPLication:COUNt <numeric_value> Sets the number of replications for a stream. You can set the value from 0 to 65535. The default value is 0. :PLAY:IP:PARAmeters:REPLication:COUNt? MTS400 Series MPEG Test System Programmer Manual 2−37...
  • Page 56 Returns the currnet identification value of the VLAN. :PLAY:IP:PARAmeters:REPLication:INCRement:IP:TOS <numeric_value> Sets the increment value for the type of service of the IP protocol. You can set the value from 0 to 255. MTS400 Series MPEG Test System Programmer Manual 2−38...
  • Page 57 Returns the current increment value of the IP protocol. :PLAY:IP:PARAmeters:REPLication:INCRement:UDP:SRCPort <numeric_value> Sets the increment value for the source port of the UDP layer. You can set the value from 0 to 65535. MTS400 Series MPEG Test System Programmer Manual 2−39...
  • Page 58 Returns whether the error insertion is enabled. :PLAY:IP:ERRIns:PARAmeters:PLENbled ON|OFF Enables packet loss when the value is set to ON. You can use 1 or 0 instead of ON or OFF. :PLAY:IP:ERRIns:PARAmeters:PLENbled? Returns whether the packet loss is enabled. MTS400 Series MPEG Test System Programmer Manual 2−40...
  • Page 59 Returns the current sequence error range value. :PLAY:IP:ERRIns:PARAmeters:SQEDistance <numeric_value> Sets the distance value after which you want the reordering to happen. You can set the value from 0 to 65535 :PLAY:IP:ERRIns:PARAmeters:SQEDistance? Returns the current distance value. MTS400 Series MPEG Test System Programmer Manual 2−41...
  • Page 60 You can use 1 or 0 instead of ON or OFF. :PLAY:IP:ERRIns:PARAmeters:RANDomizerr? Returns the current value of the randomizer. Error Generation :PLAY:IP:ERRGen:GPKTlos Generates packet loss by dropping one packet during the IP playout. :PLAY:IP:ERRGen:GSQNerr MTS400 Series MPEG Test System Programmer Manual 2−42...
  • Page 61 Returns the average bit rate value for the play. :PLAY:IP:STATistics:IP:BIRAte:AVGVariation? Returns the average variation value from the set bit rate value. :PLAY:IP:STATistics:IP:JITTer? Returns the jitter value for the play. :PLAY:IP:STATistics:IP:JITTer:MIN? Returns the minimum jitter value for the play. :PLAY:IP:STATistics:IP:JITTer:MAX? MTS400 Series MPEG Test System Programmer Manual 2−43...
  • Page 62 Returns the maximum TS bit rate variation value from the set bit rate value. :PLAY:IP:STATistics:TS:BITRAte:AVG? Returns the average TS bit rate value for the play. :PLAY:IP:STATistics:TS:BITRAte:AVGVariation? Returns the average TS bit rate variation value from the set bit rate value. :PLAY:IP:STATistics:TS:PKTSize? MTS400 Series MPEG Test System Programmer Manual 2−44...
  • Page 63 Returns the total packets dropped of all the streams. :PLAY:IP:STATistics:REPLication:ERROrs:SQNErrs? Returns the total number of sequential errors of all the streams. :PLAY:IP:STATistics:REPLication:ERROrs:CSIPerrs? Returns the total number of IP checksum errors of all the streams. MTS400 Series MPEG Test System Programmer Manual 2−45...
  • Page 64 Returns the current value of the burst mode. :PLAY:IP:PRMEtric:BPERiod <numeric_value> Sets the burst period for the IP playout. The value can range from 1 ms to 1000 ms. :PLAY:IP:PRMEtric:BPERiod? Returns the current value of the burst period. :PLAY:IP:PRMEtric:BSIZE <numeric_value> MTS400 Series MPEG Test System Programmer Manual 2−46...
  • Page 65 Sets the jitter period value for IP playout. You can set the value in μs for FIXED jitter type and percentage value for all the other jitter types. :PLAY:IP:ERRIns:PARAmeters:JITPeriod? Returns the current value of jitter period for IP playout. MTS400 Series MPEG Test System Programmer Manual 2−47...
  • Page 66 Functional Command Groups MTS400 Series MPEG Test System Programmer Manual 2−48...

  • Page 67: Table 3−1: Command Errors

    −120 numeric data error −121 invalid character in numeric −123 exponent too large −124 too many digits −128 numeric data not allowed −130 suffix error −131 invalid suffix −134 suffix too long MTS400 Series MPEG Test System Programmer Manual 3−1...
  • Page 68 −170 command expression error −171 invalid expression −178 expression data not allowed −180 macro error −181 invalid outside macro definition −183 invalid inside macro definition −184 macro parameter error MTS400 Series MPEG Test System Programmer Manual 3−2...

  • Page 69: Table 3−2: Execution Errors

    −250 mass storage error −251 missing mass storage −252 missing media −253 corrupt media −254 media full −255 directory full −256 FileName not found −257 FileName error −258 media protected MTS400 Series MPEG Test System Programmer Manual 3−3...
  • Page 70 −278 macro header not found −280 program error −281 cannot create program −282 illegal program name −283 illegal variable name −284 program currently running −285 program syntax error −286 program runtime error MTS400 Series MPEG Test System Programmer Manual 3−4...

  • Page 71: Table 3−3: Device Specific Errors

    These error codes are returned in response to an unanswered query. Table 3−4: Query errors Error code Error message −400 query error −410 query interrupted −420 query unterminated −430 query deadlocked −440 query unterminated after indefinite period MTS400 Series MPEG Test System Programmer Manual 3−5...
  • Page 72 Error Messages and Codes MTS400 Series MPEG Test System Programmer Manual 3−6...

  • Page 73: Table A−1: Default Settings

    :PLAY:LOOP:ISDBT:FRAMe ON (1) :PLAY:PACKet :PLAY:PCR:INACcuracy NONE :PLAY:PCR:INITial 0, 0 :PLAY:S192F:PARTialts ON (1) :PLAY:SOURce DISK :PLAY:SPIOutput ON (1) :PLAY:SSPOsition:INITial:ENABle ON (1) :PLAY:SSPOsition:INITial[:POSition] :PLAY:SSPOsition:INITial:TIME "00:00:00" :PLAY:SSPOsition[:POSition] 0, 0 :PLAY:SSPOsition:TIME "00:00:00","00:00:00" :PLAY:SYNC TSPAcket :PLAY:SYNC:DVALid:WIDTh NONE MTS400 Series MPEG Test System Programmer Manual A−1...
  • Page 74 :RECord:TARGet:TRIGger:POSition 0 [%] :RECord:TARGet:TYPE DISK :RECord:TARGet:UNLImit OFF (0) SYSTEM commands :SYSTem:COMMunicate:SOCKet:POR T 49152 :SYSTem:COMMunicate:SOCKet:RXTERM :SYSTem:COMMunicate:SOCKet:TXTERM CRLF :SYSTem:KLOCk[:STATe] OFF (0) :SYSTem:MODE PLAY :SYSTem:STANdard ARIB Optional commands Option 07 SMPTE310M/ASI Interface :PLAY:OP07AS:PORT:TYPE :PLAY:S310M M8VSB MTS400 Series MPEG Test System Programmer Manual A−2...
  • Page 75 :PLAY:IP:PARAmeters:PRTOcol:SETTings:SRCPort 16384 :PLAY:IP:PARAmeters:PRTOcol:SETTings:DSTPort 16384 :PLAY:IP:PARAmeters:PRTOcol:SETTings:VLAN IP Interface: Protocol Settings: Advanced Screen :PLAY:IP:PARAmeters:PRTOcol:CUSTomize: 01:00:5E:01:01:01 HEADers:ETHErnet:DESTmac :PLAY:IP:PARAmeters:PRTOcol:CUSTomize: Autodetected from the active Net- HEADers:ETHErnet:SRCEmac work Interface Card (NIC interface) :PLAY:IP:PARAmeters:PRTOcol:CUSTomize: 2048 HEADers:ETHErnet:PROTocol :PLAY:IP:PARAmeters:PRTOcol:CUSTomize: 0X8100 HEADers:ETHErnet:VLAN:TPID MTS400 Series MPEG Test System Programmer Manual A−3...
  • Page 76 HEADers:UDP:DSTPort :PLAY:IP:PARAmeters:PRTOcol:CUSTomize: Randomly generated HEADers:RTP:SQNCnumber :PLAY:IP:PARAmeters:PRTOcol:CUSTomize: Randomly generated HEADers:RTP:SSRC :PLAY:IP:PARAmeters:PRTOcol:CUSTomize: HEADers:RTP:PYLOadtype IP Interface: Protocol Settings: Stream Replication Settings :PLAY:IP:PARAmeters:REPLication:COUNt :PLAY:IP:PARAmeters:REPLication:INCRement: 00:00:00:00:00:00 ETHErnet:SRCMac :PLAY:IP:PARAmeters:REPLication:INCRement: 00:00:00:00:00:00 ETHErnet:DSTMac :PLAY:IP:PARAmeters:REPLication:INCRement: ETHErnet:EPROtocol :PLAY:IP:PARAmeters:REPLication:INCRement: ETHErnet:VLANid :PLAY:IP:PARAmeters:REPLication:INCRement:IP:T OS :PLAY:IP:PARAmeters:REPLication:INCRement:IP:TTL MTS400 Series MPEG Test System Programmer Manual A−4...
  • Page 77 1000 :PLAY:IP:ERRIns:PARAmeters:SQEDistance :PLAY:IP:ERRIns:PARAmeters:CSEEnbled OFF (0) :PLAY:IP:ERRIns:PARAmeters:CSEType :PLAY:IP:ERRIns:PARAmeters:CSEValue :PLAY:IP:ERRIns:PARAmeters:CSERange 1000 :PLAY:IP:ERRIns:PARAmeters:RANDomizerr ON (1) IP: Error Generation :PLAY:IP:ERRGen:GPKTlos No parameters :PLAY:IP:ERRGen:GSQNerr No parameters :PLAY:IP:ERRGen:GCHIperr No parameters :PLAY:IP:ERRGen:GCHUdperr No parameters IP: Parametric Settings :PLAY:IP:PRMEtric:PROCpriority ABOVE_NORMAL MTS400 Series MPEG Test System Programmer Manual A−5...
  • Page 78 Appendix A: Default Settings Table A−1: Default settings (Cont.) Header Default settings :PLAY:IP:PRMEtric:THRPriority REAL_TIME :PLAY:IP:PRMEtric:BSTEnbled OFF (0) :PLAY:IP:PRMEtric:BSTType BURST PERIOD :PLAY:IP:PRMEtric:BPERiod 2 ms :PLAY:IP:PRMEtric:BSIZe :PLAY:IP:PRMEtric:JITEnbled OFF (0) :PLAY:IP:PRMEtric:JITType FIXED 1.000000 μs :PLAY:IP:PRMEtric:JITPeriod MTS400 Series MPEG Test System Programmer Manual A−6...
  • Page 79 RECORD commands, 2−22 Hardware, 3−5 Remote command default settings, A−1 Query, 3−5 Remote command operation, checking, 1−7 Ethernet network parameters, 1−2 Rules command forming, 2−1 for using SCPI commands, 2−5 Functional command groups, 2−7 MTS400 Series MPEG Test System Programmer Manual Index−1...
  • Page 80 2−1 abbreviating, 2−3 creating queries, 2−2 chaining commands, 2−4 Setting Ethernet parameters, 1−2 commands, 2−1 Specifications, network interface, 1−6 general rules, 2−5 Syntax, command, 2−1 parameter types, 2−2 SYSTEM commands, 2−26 MTS400 Series MPEG Test System Programmer Manual Index−2...
