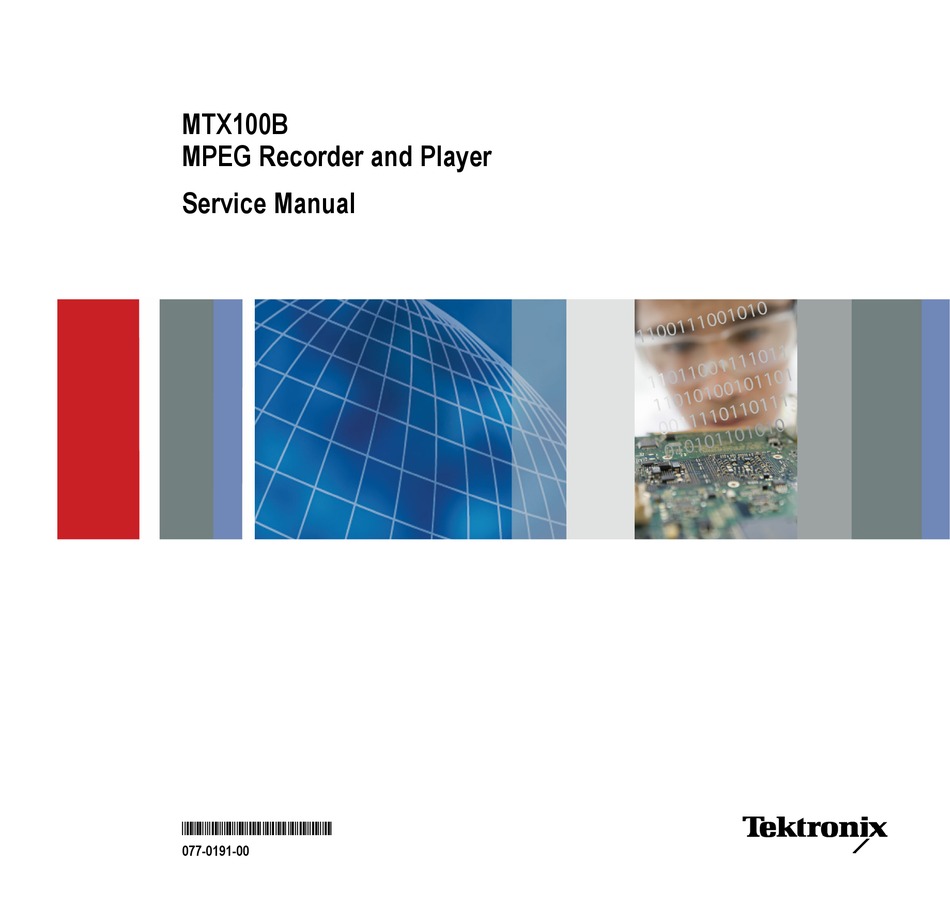

Page 1 MTX100B MPEG Recorder and Player Service Manual *P077019100* 077-0191-00...
Page 3 MTX100B MPEG Recorder and Player Service Manual www.tektronix.com 077-0191-00...
Page 4 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
Page 5 product.
Page 7 Related Maintenance Procedures ................Preparation....................Inspection and Cleaning..................Removal and Installation Procedures................Preparation....................Access Procedure ..................3-12 Procedures for External Modules ................ 3-13 Procedure for Board Modules ................3-20 Procedure for Internal Modules ................3-29 MTX100B MPEG Recorder and Player...
Page 8 A110 Universal Parallel/Serial Interface Module (Option 02).......... A140 IEEE1394/ASI Interface Module (Option 05)............. A170 SMPTE310M/ASI/SPI Interface Module (Option 07) ........... GbE (Option IPTVP) ..................Replaceable Parts List Replaceable Parts List.................... Parts Ordering Information ................. Using the Replaceable Parts List................MTX100B MPEG Recorder and Player...
Page 9 3-47 Figure 3-25: A20 PCI Backplane board view-right side ........... 3-47 Figure 4-1: MTX100B block diagram ................. Figure 4-2: MTX100B interconnect diagram ..............Figure 4-3: A100 ASI Interface module connections ............Figure 4-4: A110 Universal Parallel/Serial Interface module connections ........
Page 10 Table 5-1: Cabinet and covers .................. Table 5-2: Internal modules ..................Table 5-3: Replaceable parts list - Board modules............Table 5-4: Front-panel unit ..................5-10 Table 5-5: Replaceable parts list - Cables ..............5-12 Table 5-6: Accessories ..................5-14 MTX100B MPEG Recorder and Player...
Page 11: General Safety Summary
Keep Product Surfaces Clean and Dry. Provide Proper Ventilation. Refer to the manual’s installation instructions for details on installing the product so it has proper ventilation. Terms in this Manual These terms may appear in this manual: MTX100B MPEG Recorder and Player...
Page 12 DANGER indicates an injury hazard immediately accessible as you read the marking. WARNING indicates an injury hazard not immediately accessible as you read the marking. CAUTION indicates a hazard to property including the product. The following symbol(s) may appear on the product: MTX100B MPEG Recorder and Player...
Page 13: Service Safety Summary
Use Care When Servicing With Power On. Dangerous voltages or currents may exist in this product. Disconnect power, remove battery (if applicable), and disconnect test leads before removing protective panels, soldering, or replacing components. To avoid electric shock, do not touch exposed connections. MTX100B MPEG Recorder and Player...
Page 14 Service Safety Summary viii MTX100B MPEG Recorder and Player...
Page 15 Preface Preface This is the service manual for the MTX100B MPEG Recorder and Player. This manual contains information needed to service an MTX100B to the module level. Manual Structure This manual is divided into sections, such as Theory of Operation and Maintenance.
Page 16 Modules Throughout this manual, any replaceable component, assembly, or part of the MTX100B is referred to generically as a module. In general, a module is an assembly (like a circuit board), rather than a component (like a resistor or an integrated circuit).
Page 17 Introduction...
Page 19: Introduction
MPEG Recorder and Player, as well as general information critical to safe and effective servicing. To prevent personal injury or damage to the MTX100B, consider the following before beginning the service: The procedures in this manual should be performed only by a qualiﬁed service person.
Page 20 Each module comes with a 90-day service warranty. For More Information. Contact your local Tektronix service center or sales engineer for more information on any of the repair or adjustment services just described.
Page 21: Product Overview
Product Overview Product Overview The MTX100B MPEG Recorder and Player records and plays MPEG-2 transport streams that are compliant with ATSC, DVB, and ARIB standards. The MTX100B provides the following features: Data rate: 200 Mbps maximum (RAM mode); 256 Kbps minimum...
Page 22 Product Overview 1–4 MTX100B MPEG Recorder and Player...
Page 23 Theory of Operation...
Page 25: Theory Of Operation
Theory of Operation This section describes the basic operation of the major circuit blocks or modules in the MTX100B. The Diagrams section includes a block diagram and an interconnect diagram. A12 Main Board The A12 Main board consists of the following blocks: PCI Interface The PCI interface consists of a PCI target and a PCI master.
Page 26: A20 Pci Backplane Board
FIFO empty, Record FIFO full, external trigger, 10 Hz, Playout DMA transfer ﬁnished, and Record DMA transfer ﬁnished. These signals can be disabled by the MTX100B application software. At power on, all interruptions are disabled. TS Clock Generator The TS clock generator consists of a VCO (Voltage Control Oscillator), a phase detector, and a frequency divider.
Page 27: Front-Panel Processor Board
But R302 is not installed, so the adjustment has no effect and the backlight is at maximum brightness. USB Ports There are two USB connectors on the board that are connected through a cable to the USB 2.0 interface connector on the CPU board. MTX100B MPEG Recorder and Player 2–3...
Page 28: Keypad Board
It is possible to reconﬁgure the received data as a serial data string from the intermittently transmitted data. When the data rate from the MTX100B storage (hard disk or RAM) is lower than 216 Mbps, it is possible to select whether to sparsely output all the data or to output the data on a packet-by-packet basis as the ASI output.
Page 29: A110 Universal Parallel/Serial Interface Module (Option 02)
Bit is detected. The data rate of FIFO input port is equal to the data transfer rate of the MTX100B, and that of output port is 216 Mbps (with the clock of 27 MHz), which is used for the ASI output.
Page 30: A140 Ieee 1394/Asi Interface Module (Option 05)
When the data rate from the MTX100B storage (hard disk or RAM) is lower than 216 Mbps, it is possible to select whether to sparsely output all the data or to output the data on a packet-by-packet basis as the ASI output.
Page 31 Sync Bit is detected. The data rate of FIFO input port is equal to the data transfer rate of the MTX100B, and that of the output port is 216 Mbps (with a clock of 27 MHz), which is used for the ASI output.
Page 32: A170 Smpte310M/Asi/Psi Interface Module (Option 07)
When the data rate from the MTX100B storage (hard disk or RAM) is lower than 216 Mbps, it is possible to select whether to sparsely output all the data or to 2–8...
Page 33: Gbe Interface Module (Option Iptvp)
Sync Bit is detected. The data rate of FIFO input port is equal to the data transfer rate of the MTX100B, and that of the output port is 216 Mbps (with a clock of 27 MHz), which is used for the ASI output.
Page 34 The SFP connector is provided for pluggable optical interfaces. Only one interface port, either the copper or the optical, will be active at a time for video over IP monitoring. The active interface is selectable via SW control in the RUI. 2–10 MTX100B MPEG Recorder and Player...
Page 35 Maintenance...
Page 37: Maintenance
You may also refer to the MTS100B Speciﬁcations and Performance Veriﬁcation manual, which contains procedures that may be useful in isolating problems to modules by testing the MTX100B performance. See the MTX100B Speciﬁcations and Performance Veriﬁcation Technical Reference, available on the Tektronix Web site at www.tektronix.com/manuals.
Page 38: Inspection And Cleaning
MTX100B is used. General Care The cabinet helps keep dust out of the MTX100B, and is needed to meet EMI and cooling requirements. The cabinet should be in place when operating the MTX100B. The front cover protects the front panel and display from dust and damage.
Page 39: Table 3-1: External Inspection Check List
Cleaning Procedure – Exterior. To clean the MTX100B exterior, perform the following steps: 1. Remove loose dust on the outside of the MTX100B with a lint free cloth. 2. Remove remaining dirt with a lint free cloth dampened in a general purpose detergent-and-water solution.
Page 40: Table 3-2: Internal Inspection Check List
Maintenance Inspect the internal portions of the MTX100B before damage and wear, using the following table as a guide. Defects found should be repaired immediately. CAUTION. To prevent damage from electrical arcing, ensure that circuit boards and components are dry before applying power to the MTX100B.
Page 41 If, after performing steps 1 and 2, a module is clean upon inspection, skip the remaining steps. 3. If steps 1 and 2 do not remove all the dust or dirt, the MTX100B may be spray washed using a solution of ethyl alcohol by performing steps 4 through 8.
Page 42: Removal And Installation Procedures
Before performing this or any other procedure in this manual, read the Safety Summary found at the beginning of this manual. Also, to prevent possible damage to components of the MTX100B, read Preventing ESD in this section. This subsection contains the following items: Preparatory information that you need to properly perform the procedures that follow.
Page 43: Table 3-3: Summary Of Procedures
12 V main power supply Required Equipment. Most modules in this MTX100B can be removed with a screwdriver handle mounted with a size T10 TORX screwdriver tip. Use this tool whenever a procedure step instructs you to remove or install a screw unless a different size screwdriver is speciﬁed in that step.
Page 44: Figure 3-1: Mtx100B Orientation
Removal and Installation Procedures MTX100B Orientation In this manual, procedures refer to “front,” “rear,” and “top” of the MTX100B. The following ﬁgure shows how the sides are referenced. Figure 3-1: MTX100B orientation The following ﬁgures show the modules that make up the MTX100B.
Page 45: Figure 3-2: External Modules
Removal and Installation Procedures Figure 3-2: External modules MTX100B MPEG Recorder and Player 3–9...
Page 46: Figure 3-3: Board Modules
Removal and Installation Procedures Figure 3-3: Board modules 3–10 MTX100B MPEG Recorder and Player...
Page 47: Figure 3-4: Internal Modules
Removal and Installation Procedures Figure 3-4: Internal modules MTX100B MPEG Recorder and Player 3–11...
Page 48: Access Procedure
Internal and External Fans. (See page 3-31, Internal and External Fans.) 12 V Main Power Supply. (See page 3-33, 12 V Main Power Supply.) A40 AC Distribution Board. (See page 3-33, A40 AC Distributor Board.) RFI Filter. (See page 3-35, RFI Filter.) 3–12 MTX100B MPEG Recorder and Player...
Page 49: Procedures For External Modules
Locate the cabinet in the locator diagram External modules. (See Figure 3-2.) 2. Orient the instrument: Set the MTX100B so that its bottom is down on the work surface and its rear is facing you. 3. Use a screwdriver with a T15 TORX tip to remove the two screws securing the cabinet to the MTX100B.
Page 50: Figure 3-5: Cabinet Removal
Locate the right-side cover in the locator diagram External modules. (See Figure 3-2.) 2. Orient the instrument: Set the MTX100B so that its left side is down on the work surface and its front is facing you. 3. Use a screwdriver with a T10 TORX tip to remove the seven screws securing the right-side cover to the top and bottom of the chassis.
Page 51 Locate the left-side cover in the locator diagram External modules. (See Figure 3-2.) 2. Orient the instrument: Set the MTX100B so that its right side is down on the work surface and its front is facing you. 3. Use a screwdriver with a T10 TORX tip to remove the six screws securing the left-side cover to the top and bottom of the chassis.
Page 52: Figure 3-6: Right-Side And Left-Side Covers Removal
Removal and Installation Procedures Figure 3-6: Right-side and left-side covers removal 3–16 MTX100B MPEG Recorder and Player...
Page 53 Locate the front-panel unit in the locator diagram External modules. (See Figure 3-2.) 2. Orient instrument: Set the MTX100B so that its bottom is down on the work surface and its front is facing you. 3. Remove front-panel unit: (See Figure 3-7.) a.
Page 54: Figure 3-7: Front-Panel Unit Removal
Removal and Installation Procedures Figure 3-7: Front-panel unit removal 3–18 MTX100B MPEG Recorder and Player...
Page 55 6. Manually disassemble the front-panel assembly components using the ﬁgure as a guide. (See Figure 3-8.) Reverse the procedure to reassemble. 7. Reinstallation: Perform steps 3 through 6 in reverse order to reinstall the front-panel assembly. MTX100B MPEG Recorder and Player 3–19...
Page 56: Procedure For Board Modules
Retainers You need a screwdriver with a T10 TORX tip. 2. Orient the instrument: Set the MTX100B so that its bottom is down on the work surface and its right side is facing you. 3. Remove the board retainers: (See Figure 3-9.) a.
Page 57: Removal
4. Remove the top frame: (See Figure 3-9.) a. Use a screwdriver with a T10 TORX tip to remove the three screws securing the top frame to the chassis. b. Lift the top frame away from the chassis. MTX100B MPEG Recorder and Player 3–21...
Page 58 Locate the interface module in the locator diagram Board modules. (See Figure 3-3.) 2. Orient the instrument: Set the MTX100B so that its bottom is down on the work surface and its right side is facing you. 3. For Option IPTVP, go to step 6. All other options continue with step 4.
Page 59 Installing an SFP Module. Perform the following steps to install an SFP module into the GbE interface card: CAUTION. To avoid damage to the SFP module, remove power from the MTX100B instrument before removing or inserting an SFP module. 1. Disconnect the power cord from the instrument.
Page 60: Figure 3-10: Attaching An Optical Cable To The Sfp Module
ﬁgure. (See Figure 3-11.) Figure 3-11: Removing the SFP module. 4. Install an optical port plug into the removed SFP module to protect the optical port interface. 5. Reconnect the power cord to the instrument. 3–24 MTX100B MPEG Recorder and Player...
Page 61 Locate the A12 Main board in the locator diagram Board modules. (See Figure 3-3.) 2. Orient the instrument: Set the MTX100B so that its bottom is down on the work surface and its right side is facing you. 3. Remove the A12 Main board: (See Figure 3-9.) a.
Page 62: Figure 3-12: Instrument Id Setup Dialog
Locate the CPU board in the locator diagram Board modules. (See Figure 3-3.) 2. Orient the instrument: Set the MTX100B so that its bottom is down on the work surface and its right side is facing you. 3. Remove the CPU board: (See Figure 3-9.) a.
Page 63 Locate the A20 PCI Backplane board in the locator diagram Board modules. (See Figure 3-3.) 2. Orient the instrument: Set the MTX100B so that its bottom is down on the work surface and its right side is facing you.
Page 64 Locate the connector in the locator diagram Board modules. (See Figure 3-3.) 2. Orient the instrument: Set the MTX100B so that its bottom is down on the work surface and its rear is facing you. 3. Remove the Printer connector: (See Figure 3-9.) a.
Page 65: Procedure For Internal Modules
Locate the hard disk drive in the locator diagram Internal modules. (See Figure 3-4.) 2. Orient the instrument: Set the MTX100B so its bottom is down on the work surface and its left side is facing you. 3. Remove the hard disk drive: (See Figure 3-13.) a.
Page 66: Figure 3-13: Hard Disk Drive Removal
Removal and Installation Procedures Figure 3-13: Hard disk drive removal 3–30 MTX100B MPEG Recorder and Player...
Page 67 4. Reinstallation: Perform step 3 in reverse order to reinstall the internal fan. 5. Remove the external fan: (See Figure 3-14.) a. Set the MTX100B so its bottom is down on the work surface and its rear is facing you.
Page 68: Figure 3-14: Internal And External Fan Removal
Removal and Installation Procedures Figure 3-14: Internal and external fan removal 3–32 MTX100B MPEG Recorder and Player...
Page 69 Locate the 12 V main power supply in the locator diagram Internal modules. (See Figure 3-4.) 2. Orient the instrument: Set the MTX100B so that its bottom is down on the work surface and its left side is facing you.
Page 70: Figure 3-15: 12 V Main Power Supply And A40 Ac Distributor Board Removal
Removal and Installation Procedures Figure 3-15: 12 V main power supply and A40 AC Distributor board removal 3–34 MTX100B MPEG Recorder and Player...
Page 71 Locate the RFI ﬁlter in the locator diagram Internal modules. (See Figure 3-4.) 2. Orient the instrument: Set the MTX100B so that its bottom is down on the work surface and its rear is facing you. 3. Remove the RFI ﬁlter: (See Figure 3-16.) a.
Page 72: Figure 3-16: Rfi Filter Removal
Removal and Installation Procedures Figure 3-16: RFI ﬁlter removal 3–36 MTX100B MPEG Recorder and Player...
Page 73: Verifying The Bios Conﬁguration
1. Connect the USB keyboard to the USB connector on the front panel. 2. Power on the instrument, and then press the Del key immediately. The AwardBIOS CMOS Setup Utility screen appears. MTX100B MPEG Recorder and Player 3–37...
Page 74 4. Use the arrow keys to select Save & Exit Setup, and then press the Enter key. The Save to CMOS and Exit (Y/N)? message appears. 5. Enter Y, and press the Enter key. 3–38 MTX100B MPEG Recorder and Player...
Page 75: Troubleshooting
This subsection contains information about troubleshooting trees designed to isolate faulty modules in the MTX100B. Troubleshooting Trees The following ﬁgures show the troubleshooting procedure for the MTX100B. Refer to the Cables illustration to locate the cables referenced in these troubleshooting trees. (See Figure 5-5 on page 5-13.) MTX100B MPEG Recorder and Player 3–39...
Page 76: Figure 3-17: Troubleshooting Procedure (1)
Troubleshooting Figure 3-17: Troubleshooting procedure (1) 3–40 MTX100B MPEG Recorder and Player...
Page 77: Figure 3-18: Troubleshooting Procedure (2)
Troubleshooting Figure 3-18: Troubleshooting procedure (2) MTX100B MPEG Recorder and Player 3–41...
Page 78: Figure 3-19: Troubleshooting Procedure (3)
Troubleshooting Figure 3-19: Troubleshooting procedure (3) 3–42 MTX100B MPEG Recorder and Player...
Page 79: Figure 3-20: Troubleshooting Procedure (4)
Troubleshooting Figure 3-20: Troubleshooting procedure (4) MTX100B MPEG Recorder and Player 3–43...
Page 80: Figure 3-21: Troubleshooting Procedure (5)
Troubleshooting Figure 3-21: Troubleshooting procedure (5) 3–44 MTX100B MPEG Recorder and Player...
Page 81: Figure 3-22: Troubleshooting Procedure (6)
Troubleshooting Figure 3-22: Troubleshooting procedure (6) MTX100B MPEG Recorder and Player 3–45...
Page 82: Figure 3-23: Troubleshooting Procedure (7)
Troubleshooting Figure 3-23: Troubleshooting procedure (7) 3–46 MTX100B MPEG Recorder and Player...
Page 83: Figure 3-24: A20 Pci Backplane Board View-Back Side
Troubleshooting Figure 3-24: A20 PCI Backplane board view-back side Figure 3-25: A20 PCI Backplane board view-right side MTX100B MPEG Recorder and Player 3–47...
Page 84: System Software Recovery
System Software Recovery System Software Recovery If the MTX100B does not boot up or is corrupted, you can recover the system software by using this recovery procedure. CAUTION. Running the recovery procedure overwrites all the contents of the hard disk drive and resets the system to the factory defaults.
Page 85 Diagrams...
Page 87: Diagrams
This section contains the following diagrams: Block diagram of the MTX100B Interconnect diagram of the MTX100B The block diagram shows the modules and functional blocks in the MTX100B. The interconnect diagram shows how the modules in the MTX100B connect together.
Page 88: Figure 4-1: Mtx100B Block Diagram
Diagrams Figure 4-1: MTX100B block diagram 4–2 MTX100B MPEG Recorder and Player...
Page 89: Figure 4-2: Mtx100B Interconnect Diagram
Diagrams Figure 4-2: MTX100B interconnect diagram MTX100B MPEG Recorder and Player 4–3...
Page 90: Diagrams Of The Optional Modules
A100 ASI Interface Module (Option 01) Figure 4-3 shows the A100 ASI Interface module and how it interconnects with the A20 PCI Backplane board and the A12 Main board. Figure 4-3: A100 ASI Interface module connections 4–4 MTX100B MPEG Recorder and Player...
Page 91: A110 Universal Parallel/Serial Interface Module (Option 02)
A110 Universal Parallel/Serial Interface Module (Option 02) Figure 4-4 shows the A110 Universal Parallel/Serial Interface module and how it interconnects with the A20 PCI Backplane board and the A12 Main board. Figure 4-4: A110 Universal Parallel/Serial Interface module connections MTX100B MPEG Recorder and Player 4–5...
Page 92: A140 Ieee1394/Asi Interface Module (Option 05)
A140 IEEE1394/ASI Interface Module (Option 05) Figure 4-5 shows the A140 IEEE1394/ASI Interface module and how it interconnects with the A20 PCI Backplane board and the A12 Main board. Figure 4-5: A140 IEEE1394/ASI Interface module connections 4–6 MTX100B MPEG Recorder and Player...
Page 93: A170 Smpte310M/Asi/Spi Interface Module (Option 07)
A170 SMPTE310M/ASI/SPI Interface Module (Option 07) Figure 4-6 shows the A170 SMPTE310M/ASI/SPI Interface module and how it interconnects with the A20 PCI Backplane board and the A12 Main board. Figure 4-6: A170 SMPTE310M/ASI/SPI Interface module connections MTX100B MPEG Recorder and Player 4–7...
Page 94: Gbe (Option Iptvp)
Diagrams of the Optional Modules GbE (Option IPTVP) Figure 4-7 shows the Gigabit Ethernet board, and how it connects to the Processor (CPU) board and the A12 Main board. Figure 4-7: Option IPTVP (GbE) Interface module connections 4–8 MTX100B MPEG Recorder and Player...
Page 95 Replaceable Parts List...
Page 97: Replaceable Parts List
Replaceable Parts List This section contains a list of the replaceable modules for the MTX100B. Use this list to identify and order replacement parts. Parts Ordering Information Replacement parts are available through your local Tektronix ﬁeld ofﬁce or representative. Changes to Tektronix products are sometimes made to accommodate improved components as they become available and to give you the beneﬁt of the latest...
Page 98 For more information about the module exchange program, call 1-800-833-9200. Outside North America, contact a Tektronix sales ofﬁce or distributor; see the Tektronix Web site for a list of ofﬁces: www.tektronix.com Module repair and return. You may ship your module to us for repair, after which we will return it to you.
Page 99: Using The Replaceable Parts List
Using the Replaceable Parts List This section contains a list of the mechanical and/or electrical components that are replaceable for the MTX100B. Use this list to identify and order replacement parts. The following table describes each column in the parts list.
Page 100: Table 5-1: Cabinet And Covers
335-1374-00 MARKER,IDENT;LABEL,MKD WARNING TO AVOID ELECTRIC,50.8MMX25.4MM,0.002 POLYESTER(3M 7982),OVER LAMINATE W/0.001 FLEVCON,W/ADHESIVE BACK, SAFETY CONTROLLED 063-3868-00 SOFTWARE PKG;MICROSOFT WINDOWS XP PROFESSIONAL,INCLUDES SERVICE PACK 2,1-2 PROCESSOR VERSION;CERTIFICATE OF AUTHENTICITY 337-4346-00 SHIELD,ELEC:COVER,RIGHT,MTX100A,AL 211-0374-00 SCREW,MACHINE:6-32X0.25,FLH,100 DEG,STL ZN-CM1,T10 TORX 5–4 MTX100B MPEG Recorder and Player...
Page 101: Figure 5-1: Cabinet And Covers
Replaceable Parts List Figure 5-1: Cabinet and covers MTX100B MPEG Recorder and Player 5–5...
Page 102: Table 5-2: Internal Modules
MARKER,IDENT:MKD CONNECTORS PRINTER&IEEE1394B,POLYCARBONATE 335-1362-00 MARKER,IDENT:MKD CONNECTORS FOR CPU BD,POLYCARBONATE 335-0133-00 MARKER,IDENT;BLANK LABEL FOR MES LINES; THT-37-483-10MONOCHROME DISPLY;TDS300,TDS400 SERIES,SAFETY COTROLLED 441-2404-00 CHASSIS,ASSY;MAIN,MTX100A,AL 210-0164-000 RIVET,SOLID;0.163 ODX0.415 L,PANEL RANGE HEAD STYLE,NYLON 119-7187-00 FAN 119569400 W/CABLE 18CM L(92 SQ FAN) 5–6 MTX100B MPEG Recorder and Player...
Page 103: Figure 5-2: Internal Modules
Replaceable Parts List Figure 5-2: Internal modules MTX100B MPEG Recorder and Player 5–7...
Page 104: Table 5-3: Replaceable Parts List - Board Modules
(OPTIONS 01, 02, 05, and 07 ONLY) 174-5627-xx CABLE ASSY;RS232 CIP,TRITON TO SBC; SAFETY CONTROLLED (OPTION IPTVP ONLY) 671-6439-xx CIRCUIT BD ASSEMBLY, TESTED;IPTV GIGABIT ETHERNET INTERFACE WITH 10/100/1000 BASE-T RJ45 ELECTRICAL PORT (OPTION IPTVP ONLY) 5–8 MTX100B MPEG Recorder and Player...
Page 105: Figure 5-3: Internal Modules
Replaceable Parts List Figure 5-3: Internal modules MTX100B MPEG Recorder and Player 5–9...
Page 106: Table 5-4: Front-Panel Unit
SCREW,MACHINE;4-40 X 0.187,PAN HEAD,STL,CD PL,T-10,TORX DR 335-0577-00 LABEL,MANUFACTURED;PRODUCT ID,2.5 IN X 1.5 IN,SAFETY CONTROLLED 211-1117-00 SCREW,MACHINE;4-40 X 0.187,PAN HEAD,STL,CD PL,T-10,TORX DR 679-6251-00 CIRCUIT BD ASSY,UNTESTED,389388900 WIRED;FRONT PANEL PROCESSOR, MTX100B 337-4390-00 SHIELD ELEC;KEYPAD BOARD,0.020 THK POLYCARBONATE,LEXAN FR60,MTX100B, SAFETY CONTROLLED 679-6250-00 CIRCUIT BD ASSY,UNTESTED,389388800 WIRED;KEYBOARD;L-SHAPE,MTX100B 211-0373-00 SCREW,MACHINE:4-40X0.25,PNH,STL ZN-CM1,T10 TORX...
Page 107: Figure 5-4: Front-Panel Unit
Replaceable Parts List Figure 5-4: Front-panel unit MTX100B MPEG Recorder and Player 5–11...
Page 108: Table 5-5: Replaceable Parts List - Cables
CABLE,ASSEMBLY,SP,ELEC;FAN 119569400 W/CABLE 18CM L (92 SQ FAN) 174-5188-00 CABLE,ASSEMBLY,SP,ELEC;10,60CM L,26AWG AND 28 AWG(CPU-A35,USB) 174-5220-00 CABLE,ASSEMBLY,2X15,28AWG FLAT,1MM CTR,300MM L,A20 TO A30 174-3767-01 CABLE,ASSEMBLY,SP;DISCRETE,BACKLIGHT,IDC,26 AWG,5.0 L,PCB,1 X 6,0.079 CTR (2MM),SHRINK WRAPPED 174-5266-00 CABLE,ASSEMBLY;RIBBON ADAPTER TO XGA DISPLAY,10 PIN,3.5IN 5–12 MTX100B MPEG Recorder and Player...
Page 109: Figure 5-5: Cables
Replaceable Parts List Figure 5-5: Cables MTX100B MPEG Recorder and Player 5–13...
Page 110: Table 5-6: Accessories
MANUAL,QSUM,MTX100B,ENGLISH (OPTION L0) 071-2594-XX MANUAL,QSUM,MTX100B,JAPANESE (OPTION L5) 071-2607-00 MANUAL,TECH,USER,TWO VOLUME,MTS400,ENGLISH 063-3932-00 MTX100B/RTX100B/RTX130B SAMPLE STREAMS, CD,B019999 AND BELOW 020-2941-00 MPEG TEST STREAMS DVD PACKAGING KIT, B020000 AND ABOVE 012-A220-00 CABLE,INTCON:D-SUB 25,MALE TO MALE,STR,TWIST,2M L,SCREW 4-40 119-6936-00 POINTER ASSY:OPTICAL MOUSE,USB,WHITE,OPTICAL THREE BUTTON WHEELED,W/USB to...
