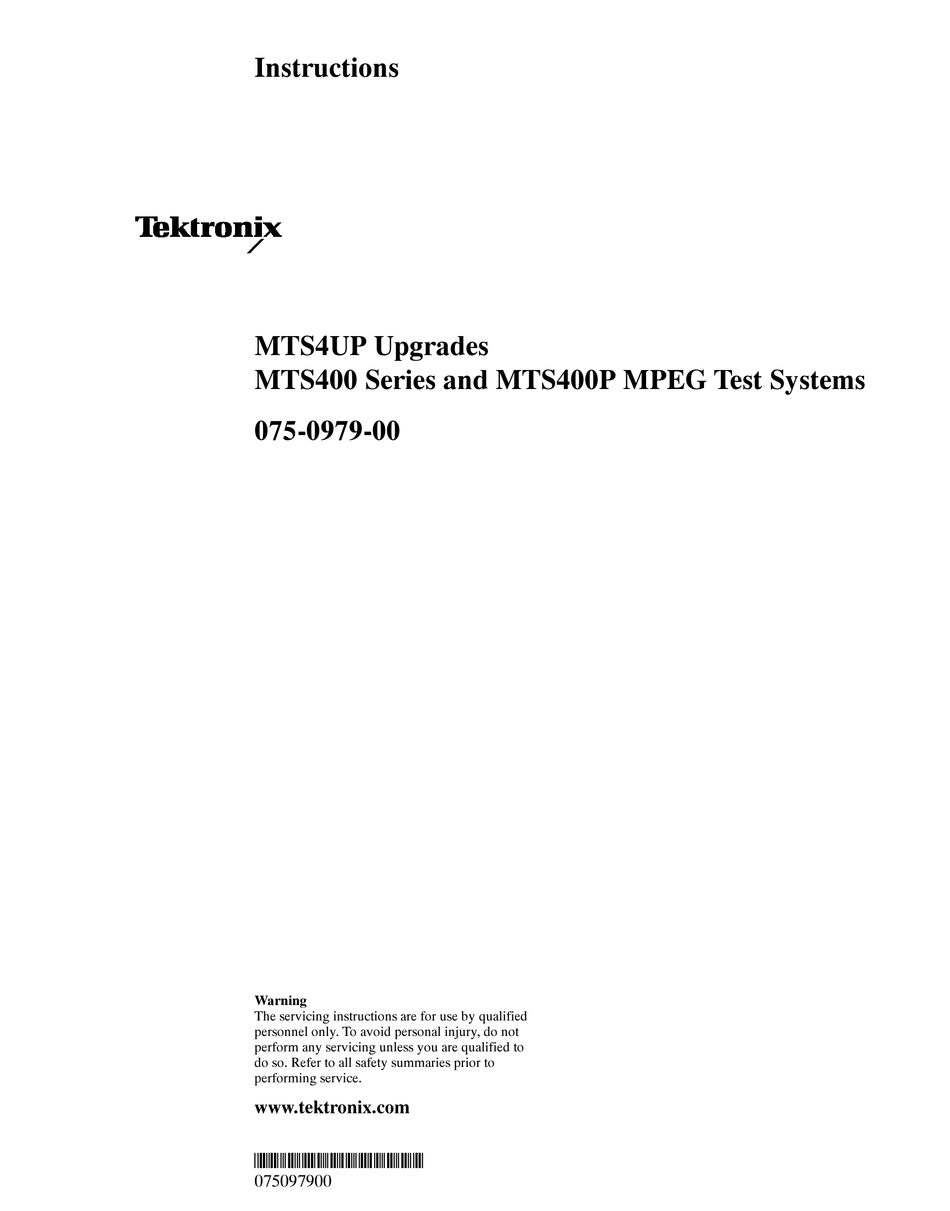

Instructions
MTS4UP Upgrades
MTS400 Series and MTS400P MPEG Test Systems
075-0979-00
Warning
The servicing instructions are for use by qualified
personnel only. To avoid personal injury, do not
perform any servicing unless you are qualified to
do so. Refer to all safety summaries prior to
performing service.
www.tektronix.com
*P075097900*
075097900

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTS400 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Tektronix MTS400 Series

  • Page 1 Instructions MTS4UP Upgrades MTS400 Series and MTS400P MPEG Test Systems 075-0979-00 Warning The servicing instructions are for use by qualified personnel only. To avoid personal injury, do not perform any servicing unless you are qualified to do so. Refer to all safety summaries prior to performing service.
  • Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes that in all previously published material.
  • Page 3: Table Of Contents

    ....... Option LX, Option SX, or Option ZX SFP Module Upgrade ..MTS4UP MTS400 Series Upgrade Kits...
  • Page 4 Table of Contents MTS4UP MTS400 Series Upgrade Kits...
  • Page 5: General Safety Summary

    Do Not Operate in Wet/Damp Conditions. Do Not Operate in an Explosive Atmosphere. Keep Product Surfaces Clean and Dry. Provide Proper Ventilation. Refer to the manual’s installation instructions for details on installing the product so it has proper ventilation. MTS4UP MTS400 Series Upgrade Kits...
  • Page 6 H WARNING indicates an injury hazard not immediately accessible as you read the marking. H CAUTION indicates a hazard to property including the product. The following symbols may appear on the product: Protective Ground CAUTION Standby Refer to Manual (Earth) Terminal MTS4UP MTS400 Series Upgrade Kits...
  • Page 7: Service Safety Summary

    Use Care When Servicing With Power On. Dangerous voltages or currents may exist in this product. Disconnect power, remove battery (if applicable), and disconnect test leads before removing protective panels, soldering, or replacing components. To avoid electric shock, do not touch exposed connections. MTS4UP MTS400 Series Upgrade Kits...
  • Page 8 Service Safety Summary MTS4UP MTS400 Series Upgrade Kits...
  • Page 9: Kit Description

    This upgrade is included with all of the hardward updates, or may be ordered separately. As the user of an MTS400 Series MPEG Test System, you will be familiar with the software key (or dongle) that must be attached to your unit before you can open any of the MTS400 Series applications.
  • Page 10 H MTS4UP SX - - Adds a 1000Base- -SX short wavelength optical port with LC connector (multimode 850 nm). H MTS4UP ZX - - Adds a 1000Base-ZX wavelength optical port with LC connector (multimode 1550 nm). MTS4UP MTS400 Series Upgrade Kits...
  • Page 11: Minimum Tool And Equipment List

    174- - 5135- - xx CABLE ASSY; RF, BNC TO BNC;75 OHM 2 Each 211- - 0722- - xx SCREW, MACHINE; 6- - 32 X 0.250, PNH, STL, ZINC FINISH, T- - 15 TORX DR MTS4UP MTS400 Series Upgrade Kits...
  • Page 12 1 Each 063- - 4220- - xx SOFTWARE PKG; MICROSOFT WINDOWS XP PROFESSIONAL,W/SP2B RECOVERY MEDIA AND NERO BURNING SOFTWARE, VER X.X;MTS400 SERIES 2 Each 211- - 0722- - xx SCREW, MACHINE; 6- - 32 X 0.250, PNH, STL, ZINC FINISH, T- - 15 TORX DR MTS4UP CF This kit updates an MTS415 or MTS430 MPEG Test System.
  • Page 13 1 Each 063- - 4220- - xx SOFTWARE PKG; MICROSOFT WINDOWS XP PROFESSIONAL,W/SP2B RECOVERY MEDIA AND NERO BURNING SOFTWARE, VER X.X;MTS400 SERIES 2 Each 211- - 0722- - xx SCREW, MACHINE; 6- - 32 X 0.250, PNH, STL, ZINC FINISH, T- - 15 TORX DR MTS4UP QB2 This kit updates an MTS415 or MTS430 MPEG Test System.
  • Page 14 ADAPTER, RF; BNC JACK TO F PLUG 1 Each 063- - 4220- - xx SOFTWARE PKG; MICROSOFT WINDOWS XP PROFESSIONAL,W/SP2B RECOVERY MEDIA AND NERO BURNING SOFTWARE, VER X.X;MTS400 SERIES 2 Each 211- - 0722- - xx SCREW,CAP; 6- - 32 X 0.75,HEX SKT,SST MTS4UP IPTVP This kit updates an MTS400P MPEG Test System.
  • Page 15 MTS4UP UPG software upgrade kit, and these additional parts: Quantity Part number Description 1 Each 131- - 7957- - xx OPTICAL GIGABIT ETHERNET/FIBRE CHANNEL 1550NM SFP, 1.25/1.0625GBAUD, 3.3V, SAFETY CONTROLLED MTS4UP MTS400 Series Upgrade Kits...
  • Page 16 Kit Description MTS4UP MTS400 Series Upgrade Kits...
  • Page 17: Upgrade Instructions

    These instructions are for personnel who are familiar with servicing the product. If you need further details for disassembling or reassembling the product, refer to the appropriate product manual. Contact your nearest Tektronix, Inc., Service Center or Tektronix Factory Service for installation assistance.
  • Page 18: Option Upg Software Upgrade

    Option UPG Software Upgrade Perform the following steps to upgrade the MTS400 Series software and software key: 1. Ensure that the instrument or PC to be upgraded is switched on and has completed the start-up process. 2. Ensure that the software key (dongle) is attached to your instrument.
  • Page 19 7. Select the Yes, I want to restart my computer now option, and then click Finish. The instrument or PC will shut down and then restart. 8. When the unit has completed the start-up process, the Tektronix Option Update wizard will start automatically (see Figure 3).
  • Page 20 Note that the Serial Number of the software key has been detected, but the Key Status is invalid because no Key String has been entered. 9. In the Tektronix Option Update dialog box, enter the Option Key String, found on the Product Option Key label supplied with these upgrade instructions, in the Key String field.
  • Page 21 Option UPG Software Upgrade Figure 4: Tektronix Option Update Wizard - Complete 10. Inspect and verify the list of licensed options. 11. Close the Tektronix Option Update wizard. 12. Peel the backing off of the Product Option Key label and apply it to the instrument rear panel, as shown in Figure 5.
  • Page 22 Figure 5: Product Option key label location Verify Operation To verify operation of the upgraded applications, open and close each installed application in turn. If any licensed application fails to open correctly, contact your Tektronix representative. MTS4UP MTS400 Series Upgrade Kits...
  • Page 23: Hardware Upgrades (Mts415 And Mts430)

    7. Set the instrument onto the work surface so the bottom is down, as shown in Figure 6. 8. Remove the five T-15 screws securing the circuit board retaining plate to the chassis and lift it away (see Figure 6). MTS4UP MTS400 Series Upgrade Kits...
  • Page 24 If you are installing an MTS4UP GBE Gigabit Ethernet input upgrade, with or without any of the other hardware upgrades, go to page 19. If you are installing an MTS4UP CF, MTS4UP EP, MTS4UP QB2, or MTS4UP VS upgrade without an MTS4UP GBE, go to page 20. MTS4UP MTS400 Series Upgrade Kits...
  • Page 25: Mts4Up Iptvd Upgrade Instructions

    4 card guide, and slide the module down into slot 4. 3. Press down firmly to engage the module into the slot 4 connector (see Figure 7). Figure 7: IPTVD IP Video Gigabit Ethernet Interface module in place MTS4UP MTS400 Series Upgrade Kits...
  • Page 26 This connector is keyed and can only be installed one way. 7. Connect the other end of the interface cable to J10 on the hardware upgrade module, as shown in Figure 9. Figure 8: Interface cable connected to controller board MTS4UP MTS400 Series Upgrade Kits...
  • Page 27: Mts4Up Gbe Upgrade Instructions

    2 card guide, and slide the module down into slot 2 (see Figure 10). 4. Press down firmly to engage the module into the connector (see Figure 10). MTS4UP MTS400 Series Upgrade Kits...
  • Page 28: Mts4Up Cf, Ep, Qb2, Or Vs Upgrade Instructions

    4 card guide, and slide the module down into slot 4. 3. Press down firmly to engage the module into the slot 4 connector (see Figure 11). MTS4UP MTS400 Series Upgrade Kits...
  • Page 29 COM2 connector on the controller board in slot 11, as shown in Figure 12. This connector is keyed and can only be installed one way. 6. Connect the other end of the interface cable to J14 on the hardware upgrade module, as shown in Figure 13. MTS4UP MTS400 Series Upgrade Kits...
  • Page 30 Hardware Upgrades (MTS415 and MTS430) Figure 12: Interface cable connected to controller board Figure 13: Interface cable connected to the hardware upgrade module MTS4UP MTS400 Series Upgrade Kits...
  • Page 31: Replace The Cabinet

    At the rear of the chassis, you may have to push on the sides of the cabinet to get the rear of the cabinet to fit over the edges of the chassis and EMI gasket. MTS4UP MTS400 Series Upgrade Kits...
  • Page 32: Restore The Operating System

    CAUTION. To prevent data loss, back up your hard drive before you restore the MTS400 Series system. All data on the hard drive will be destroyed during the system restore process. 1. Start the MTS400 Series system.
  • Page 33 3. Press the “1” key to begin the system restore process. The Acquiring Device... dialog box will appear briefly and display a progress bar. 4. When the system restore is complete, press any key and then press the “4” key, see Figure 15. MTS4UP MTS400 Series Upgrade Kits...
  • Page 34 7. The system will restart on its own. Reinstate the SCSI Drives After restoring the operating system, confirm that the SCSI drives (drives E and F) have been recognized by the system. Figure 16 shows the drives in Windows Explorer. MTS4UP MTS400 Series Upgrade Kits...
  • Page 35 1. Open the Windows Disk Management window (Start > Control Panel > Performance and Maintenance > Administrative Tools > Computer Management > Storage > Disk management). Note that Disk 0 and Disk 1 are described as Foreign, as shown in Figure 17. MTS4UP MTS400 Series Upgrade Kits...
  • Page 36 Hardware Upgrades (MTS415 and MTS430) Figure 17: Computer Management - SCSI drives, foreign 2. Right- -click on Disk 0 or Disk 1 and select Import Foreign Disks... from the shortcut menu (see Figure 18). MTS4UP MTS400 Series Upgrade Kits...
  • Page 37 3. In the Import Foreign Disks dialog box, ensure that the disk group is checked and select OK. See Figure 19. Figure 19: Import Foreign Disks dialog box 4. In the Foreign Disk Volumes dialog box, select OK. See Figure 20. MTS4UP MTS400 Series Upgrade Kits...
  • Page 38 1. Copy the file “SCSIKeyDel.reg” from the restore DVD to your C: drive. 2. Double click the file to initiate it. 3. When prompted to add information to the registry, press “Yes.” 4. When the information successfully entered message appears, press “OK.” MTS4UP MTS400 Series Upgrade Kits...
  • Page 39: Software Upgrade Instructions

    2. Ensure that the software key (dongle) is attached to your instrument. 3. Insert the MTS400 Series Application Install CD-ROM supplied with this kit into the CD-ROM drive of the instrument or PC to be upgraded. The CD-ROM will autostart and display the Welcome screen shown in Figure 22.
  • Page 40 Hardware Upgrades (MTS415 and MTS430) Figure 22: InstallShield Wizard welcome screen Figure 23: MTS400 Installation - Setup Type MTS4UP MTS400 Series Upgrade Kits...
  • Page 41 WinPcap 3.1 is already installed on this machine. The installation will be aborted. Select OK to abort the WinPcap installation and continue with the MTS400 installation. Figure 24: WinPcap Setup dialog 8. In the WinPcap Setup dialog box, select Next. MTS4UP MTS400 Series Upgrade Kits...
  • Page 42 12. Select the Yes, I want to restart my computer now option, and then click Finish. The instrument or PC will shut down and then restart. 13. After the unit has completed the start-up process, start the Tektronix Option Update wizard by selecting Start > Programs > Tektronix MTS400 >...
  • Page 43 Note that the Serial Number of the software key has been detected, but the Key Status is invalid because no Key String has been entered. 14. In the Tektronix Option Update dialog box Key String field, enter the Option Key String, found on the Product Option Key label supplied with these upgrade instructions, and then click Apply.
  • Page 44 Hardware Upgrades (MTS415 and MTS430) Figure 27: Tektronix Option Update Wizard - Complete 16. Close the Option Key Wizard. 17. Peel the backing off of the Product Option Key label and apply it to the instrument rear panel, as shown in Figure 5. If there is already an option key label on the rear panel, paste the new one over the old one.
  • Page 45: Software Key Upgrade Instructions

    3. Start the Tektronix Option Update Wizard (Start > Programs > Tektronix MTS400 > OptionKey Wizard). 4. In the Tektronix Option Update Wizard dialog box, enter the Option Key String, found on the Product Option Key label supplied with these upgrade instructions, in the Key String field.
  • Page 46: Hardware Upgrades (Mts400P)

    1. Connect the USB flash drive to the USB connector of the instrument. A dialog box with various install options is displayed. 2. Select Install Tektronix MPEG Application Suite and click OK. Immediately, an InstallShield Wizard that allows you to install the applica- tion is displayed.
  • Page 47 Hardware Upgrades (MTS400P) 3. Select MTS400P as the Setup type and click Next to continue. 4. Click Install to begin the installation process. MTS4UP MTS400 Series Upgrade Kits...
  • Page 48 Hardware Upgrades (MTS400P) During the progress, the following WinPcap 4.0.2 Setup message is displayed. Click OK to continue. 5. Choose the option to restart the PC, and then select Finish. The PC will shut down and restart. MTS4UP MTS400 Series Upgrade Kits...
  • Page 49 3. Connect the dongle that is supplied with the instrument. 4. From the Start menu, select Programs > Tektronix MTS400 > Optionkey Wizard to open the Tektronix Option Update dialog box. (See Figure 28 on page 42.) MTS4UP MTS400 Series Upgrade Kits...
  • Page 50 6. Enter the alphanumeric numbers in the Key String text box, and click the Apply button. The Tektronix Option Update dialog box is updated and the ordered option is displayed along with the other options. If a wrong key string is entered, the Key Status box displays the entered string as invalid.
  • Page 51: Access The Module Bay

    2. Use a screwdriver with a T15 TORX tip to remove the two screws securing the cabinet to the instrument. (See Figure 29.) 3. Slide the instrument forward to remove the instrument from the cabinet. (See Figure 29.) Figure 29: Removing the MTS400P cabinet MTS4UP MTS400 Series Upgrade Kits...
  • Page 52 5. Use a screwdriver with a T10 TORX tip to remove the six screws securing the left- -side cover to the top and bottom of the chassis. (See Figure 30.) 6. Remove the left- -side cover from the chassis. Figure 30: Removing the right- side and left- side covers MTS4UP MTS400 Series Upgrade Kits...
  • Page 53 2. Use a screwdriver with a T10 TORX tip to remove the two screws securing the board retainers to the chassis. (See Figure 31.) 3. Lift the retainers away from the chassis. (See Figure 31.) Figure 31: Removing the board retainers MTS4UP MTS400 Series Upgrade Kits...
  • Page 54: Mts4Up Iptvp Upgrade Instructions

    4. Remove the screws securing the A12 Main board to the instrument and set them aside. 5. Gently remove the A12 Main board from the instrument and set it aside. MTS4UP MTS400 Series Upgrade Kits...
  • Page 55 Figure 33: Jumper and RS232 CIP cable connection on Processor board 7. Route the new cable across the bottom of the instrument as shown in the following figure. You will connect the other end of the cable later. MTS4UP MTS400 Series Upgrade Kits...
  • Page 56 2. Push the IPTVP module in until the board- -edge connector is firmly seated in the A20 PCI Backplane board connector. 3. Secure the interface module at the side and rear of the chassis, using the two screws that were removed from the top blank panel. MTS4UP MTS400 Series Upgrade Kits...
  • Page 57 Figure 34: Installing the Option IPTVP interface module 4. Connect the free end of the new RS232 CIP cable to J10 on the interface module as shown in Figure 35. Figure 35: Connect the RS232 CIP Cable to the IPTVP module MTS4UP MTS400 Series Upgrade Kits...
  • Page 58 Install the Cabinet 1. Slide the instrument into the cabinet. 2. Use a screwdriver with a T15 TORX tip to install the two screws securing the cabinet to the instrument. MTS4UP MTS400 Series Upgrade Kits...
  • Page 59 “Press DEL to enter SETUP” at the bottom of the screen. The BIOS setup utility window appears. 3. Select Integrated Peripheral, and then set the Onboard Serial Port 2 setting to 2F8 to enable COM2, as shown in Figure 38 on page 52. MTS4UP MTS400 Series Upgrade Kits...
  • Page 60 Hardware Upgrades (MTS400P) Figure 38: Enabling COM2 MTS4UP MTS400 Series Upgrade Kits...
  • Page 61: Option Lx, Option Sx, Or Option Zx Sfp Module Upgrade

    NOTE. The optical port plug must be in place when no cable is connected. NOTE. The following illustrations show an MTS400P MPEG Test System, but the installation and removal steps are the same for any MTS400 Series instrument. MTS4UP MTS400 Series Upgrade Kits...
  • Page 62 Retain the optical port plug for later use when you need to disconnect the optical fiber cable or remove the SFP module from the instrument. 4. Reconnect the power cord to the instrument. Figure 39: Optical cable connected MTS4UP MTS400 Series Upgrade Kits...
  • Page 63 Figure 40. Figure 40: SPF module removal 4. Install an optical port plug into the removed SFP module to protect the optical port interface. 5. Reconnect the power cord to the instrument. MTS4UP MTS400 Series Upgrade Kits...
  • Page 64 Option LX, Option SX, or Option ZX SFP Module Upgrade g End of document g MTS4UP MTS400 Series Upgrade Kits...
