1
Does the IEEE1394b
interface work?
Can a stream data
be output from the SPI
In/Out connector?
Can a stream data be
acquired from the SPI
In/Out connector?
Can a stream data
be output from the optional
interface module?
Can a stream data
be acquired from the optional
interface module?
Done.

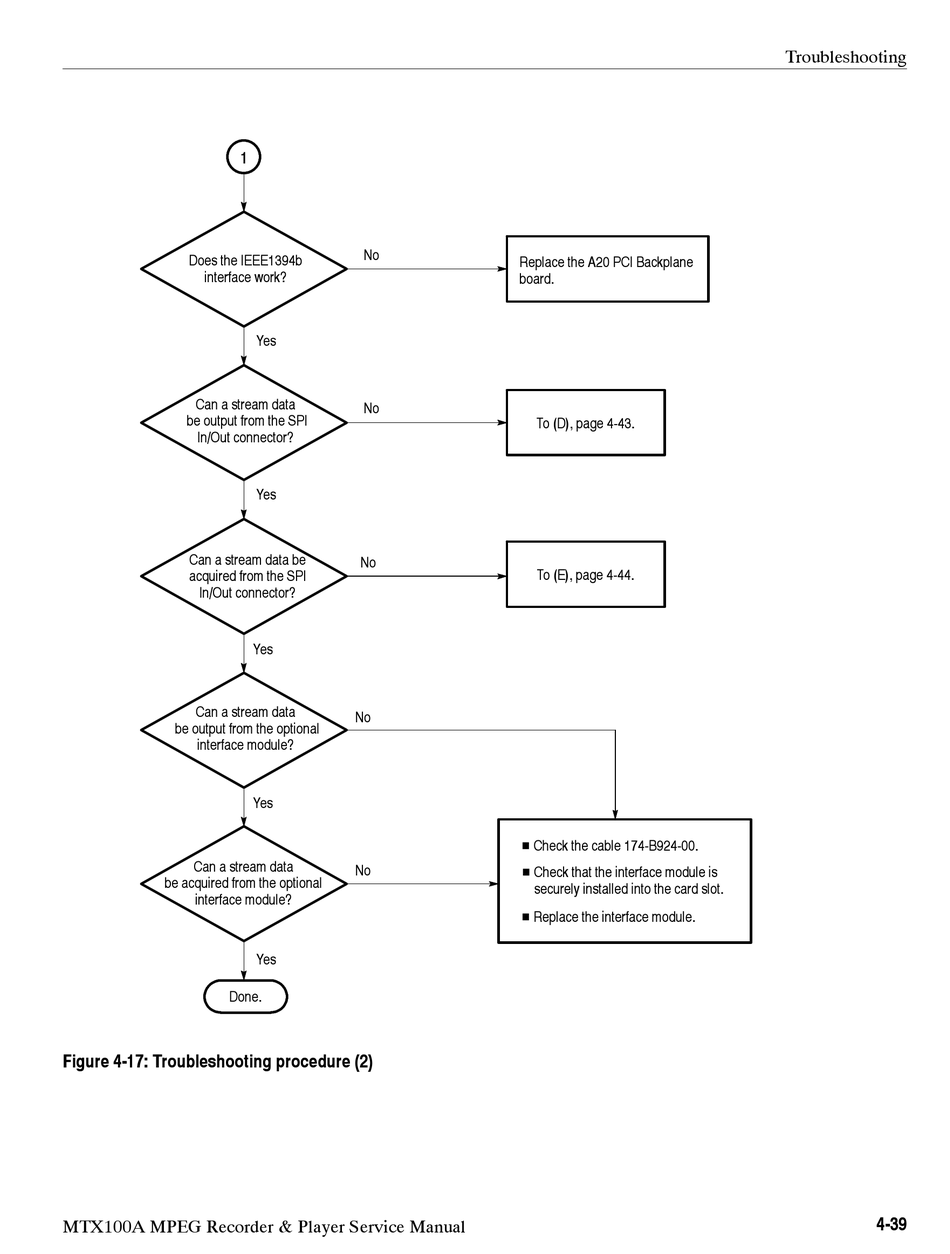

Figure 4-17: Troubleshooting procedure (2)

MTX100A MPEG Recorder & Player Service Manual
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
Replace the A20 PCI Backplane
board.
To (D), page 4-43.
To (E), page 4-44.
H Check the cable 174-B924-00.
H Check that the interface module is
securely installed into the card slot.
H Replace the interface module.
Troubleshooting
4-39
