MTX100A Option 07 rear panel

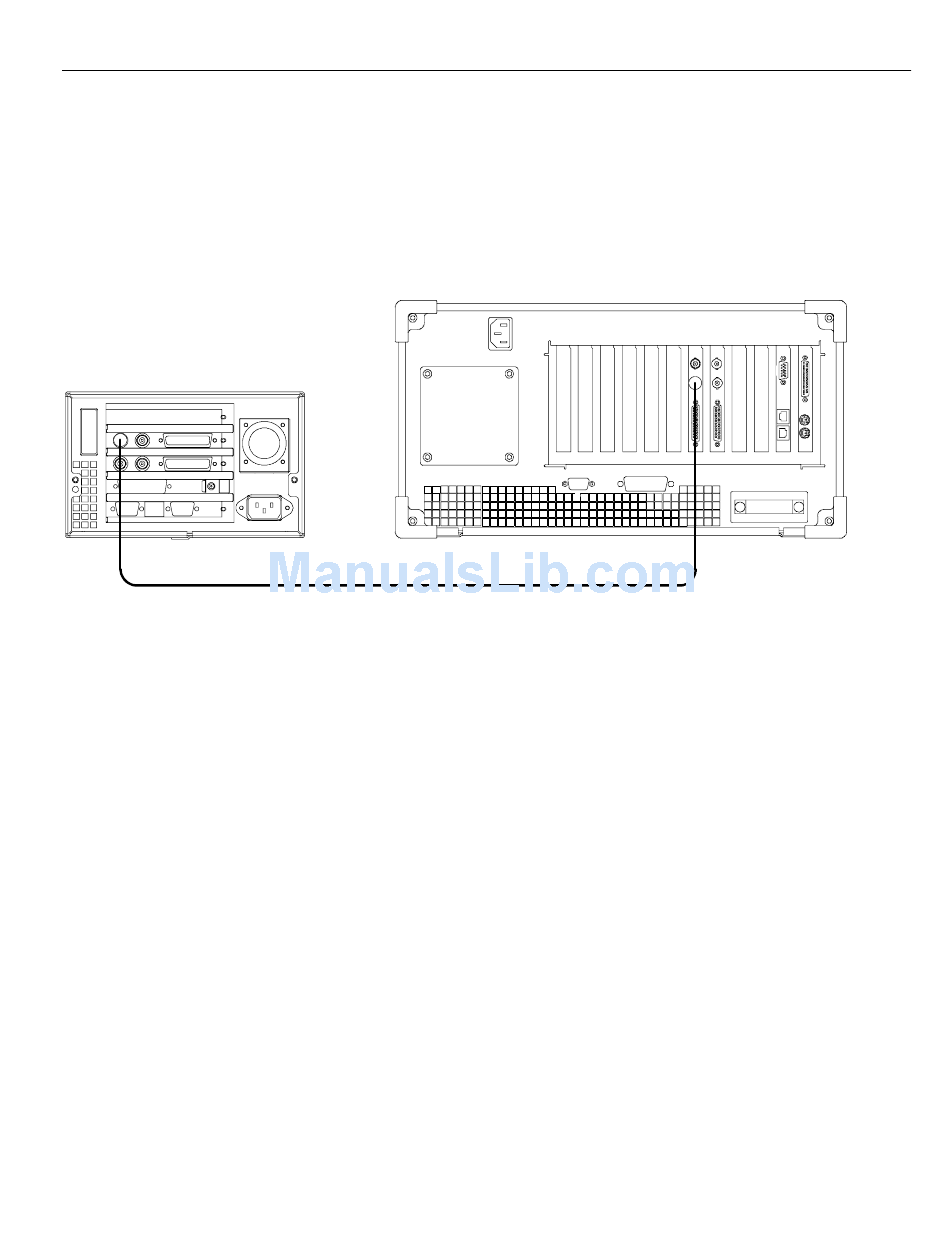

Figure 3-20: Equipment connection for verifying the ASI play operation
MTX100A MPEG Recorder & Player Service Manual
Checking the ASI Play Operation.
6. Disconnect the BNC cable from the 75 Ω signal adapter on the oscilloscope
input, and then connect the cable to the ASI/SMPTE In connector on the
MPEG analyzer. See Figure 3-20.
MPEG test system rear panel (MTS430)
75 Ω BNC cable
7. Start the MPEG Player application on the MPEG analyzer.
8. Set the application to the Record mode.
9. Set the MPEG analyzer settings as indicated bellow:
Record menu
Source . . . . . . . . .
Target . . . . . . . . .
SPI/ASI/310M menu
Input Port . . . . . .
BNC Port . . . . . .
File menu
Save Mode . . . . .
Save . . . . . . . . . . .
SPI/ASI/310M
RAM, Record Size: 100 MB
BNC
ASI
Over write
E:\MTXRTX_Test streams\Record_Files\
ASI214Mbps.trp
Performance Verification
3-41
