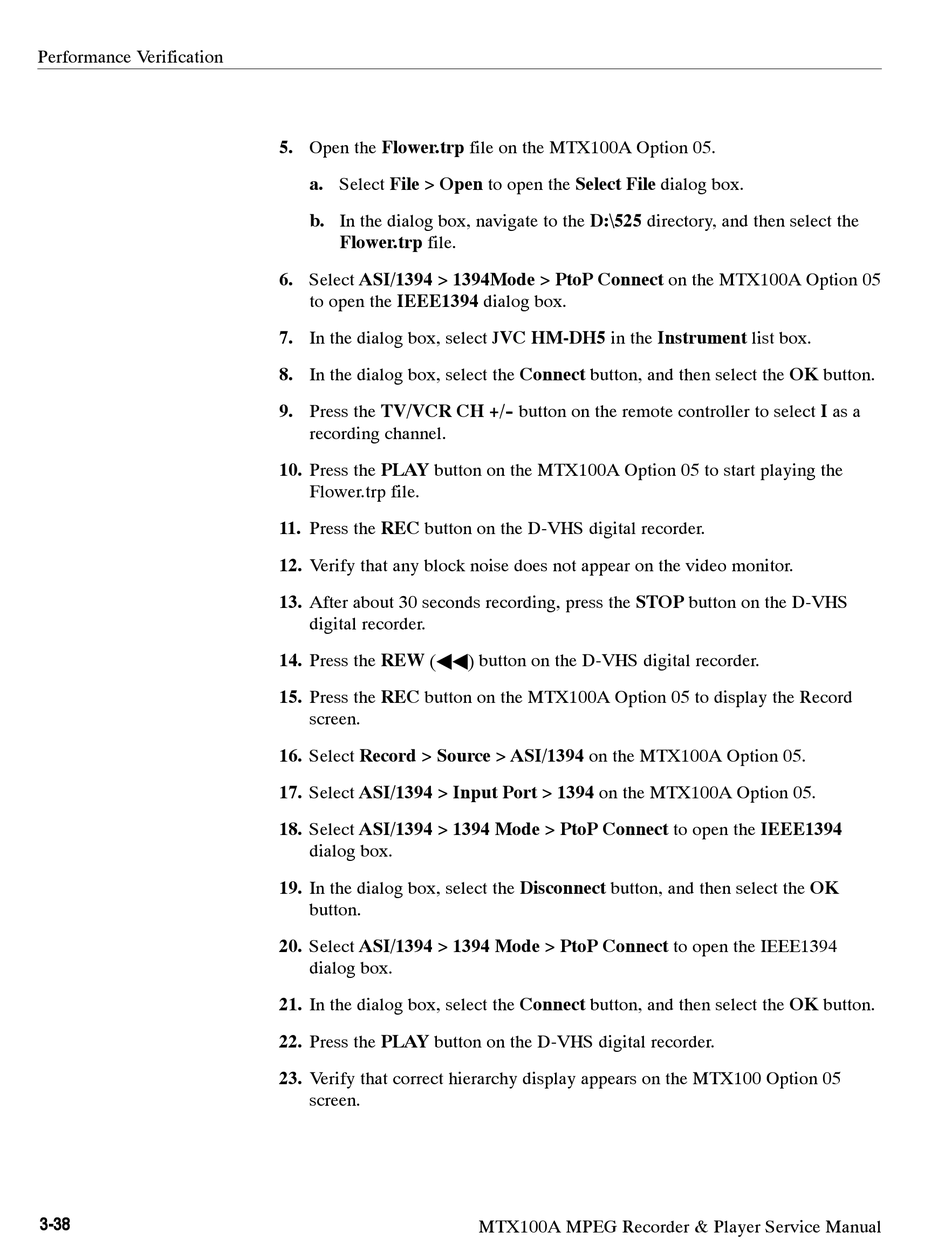

Performance Verification
3-38
5. Open the Flower.trp file on the MTX100A Option 05.
a. Select File > Open to open the Select File dialog box.
b. In the dialog box, navigate to the D:\525 directory, and then select the
Flower.trp file.
6. Select ASI/1394 > 1394Mode > PtoP Connect on the MTX100A Option 05
to open the IEEE1394 dialog box.
7. In the dialog box, select JVC HM-DH5 in the Instrument list box.
8. In the dialog box, select the Connect button, and then select the OK button.
9. Press the TV/VCR CH +/- - button on the remote controller to select I as a
recording channel.
10. Press the PLAY button on the MTX100A Option 05 to start playing the
Flower.trp file.
11. Press the REC button on the D-VHS digital recorder.
12. Verify that any block noise does not appear on the video monitor.
13. After about 30 seconds recording, press the STOP button on the D-VHS
digital recorder.
14. Press the REW (
AA
15. Press the REC button on the MTX100A Option 05 to display the Record
screen.
16. Select Record > Source > ASI/1394 on the MTX100A Option 05.
17. Select ASI/1394 > Input Port > 1394 on the MTX100A Option 05.
18. Select ASI/1394 > 1394 Mode > PtoP Connect to open the IEEE1394
dialog box.
19. In the dialog box, select the Disconnect button, and then select the OK
button.
20. Select ASI/1394 > 1394 Mode > PtoP Connect to open the IEEE1394
dialog box.
21. In the dialog box, select the Connect button, and then select the OK button.
22. Press the PLAY button on the D-VHS digital recorder.
23. Verify that correct hierarchy display appears on the MTX100 Option 05
screen.
) button on the D-VHS digital recorder.
