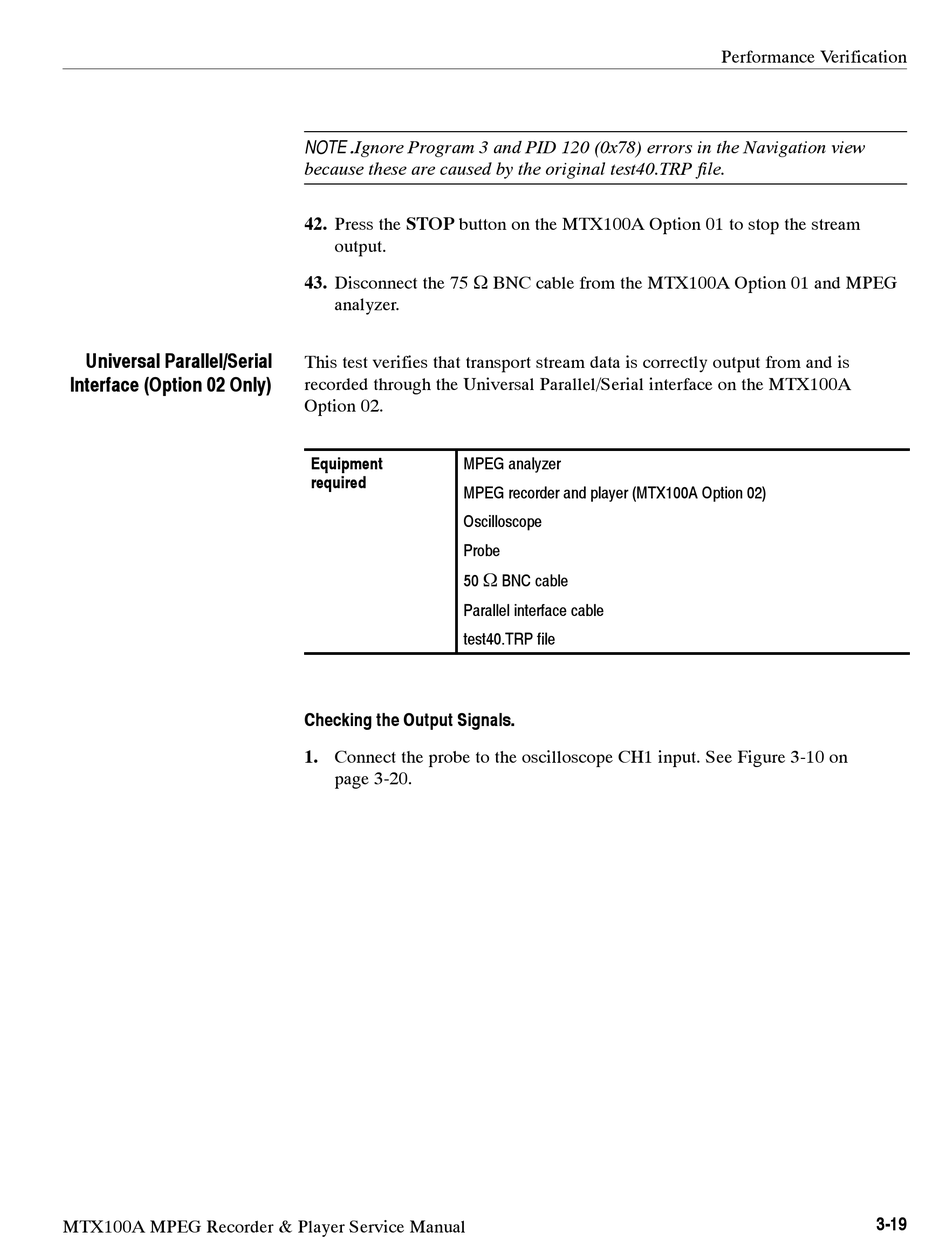

Universal Parallel/Serial
Interface (Option 02 Only)
MTX100A MPEG Recorder & Player Service Manual
NOTE. Ignore Program 3 and PID 120 (0x78) errors in the Navigation view
because these are caused by the original test40.TRP file.
42. Press the STOP button on the MTX100A Option 01 to stop the stream
output.
43. Disconnect the 75 Ω BNC cable from the MTX100A Option 01 and MPEG
analyzer.
This test verifies that transport stream data is correctly output from and is
recorded through the Universal Parallel/Serial interface on the MTX100A
Option 02.
Equipment q p MPEG analyzer
required i d
MPEG recorder and player (MTX100A Option 02)
Oscilloscope
Probe
50 Ω
Parallel interface cable
test40.TRP file
Checking the Output Signals.
1. Connect the probe to the oscilloscope CH1 input. See Figure 3-10 on
page 3-20.
BNC cable
Performance Verification
3-19
