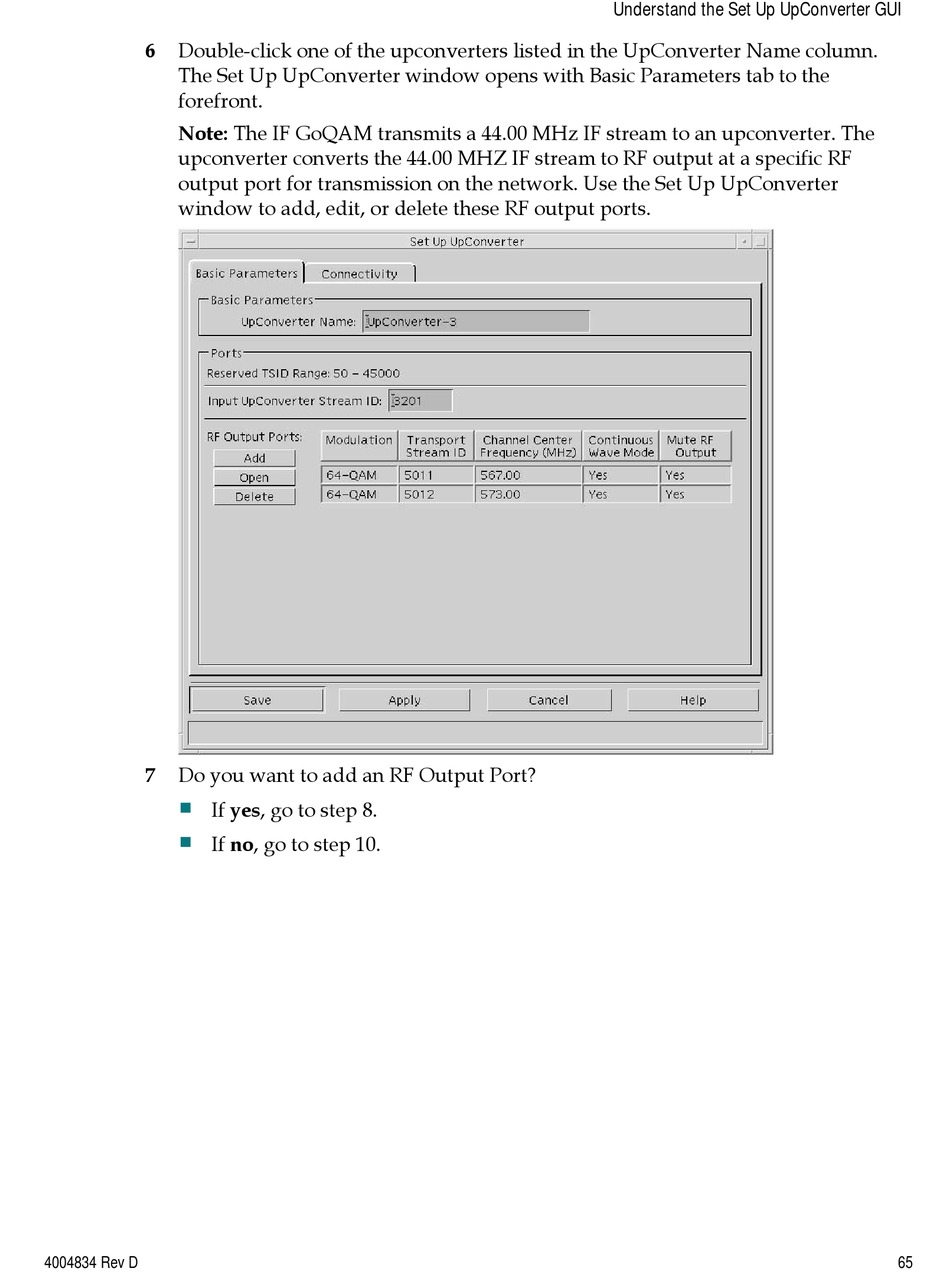

6 Double-click one of the upconverters listed in the UpConverter Name column.
The Set Up UpConverter window opens with Basic Parameters tab to the
forefront.
Note: The IF GoQAM transmits a 44.00 MHz IF stream to an upconverter. The
upconverter converts the 44.00 MHZ IF stream to RF output at a specific RF
output port for transmission on the network. Use the Set Up UpConverter
window to add, edit, or delete these RF output ports.
7 Do you want to add an RF Output Port?
 If yes, go to step 8.

If no, go to step 10.
